Angular Vibration Generator ST18C

FOB Price:	1.00 - 2.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

E+H Transmitter for Liquid Analysis CM442-AAM1A...

Price:1.00-99999.00 USD/Piece

Min. Order:1 Piece
AATCC Standard Dryer RS-T19

Price:

Min. Order:
Digital Partial Discharge Detector

Price:4,400.00-4,900.00 USD/Set

Min. Order:1 Set
Rivet Welding Surface Plate

Price:100.00-3000.00 USD/Piece

Min. Order:1 Piece
Fisher Gold Bug DP

Price:

Min. Order:4 Units

Export Markets:	Mid East
Place of Origin:	Hubei in China

Quick Details

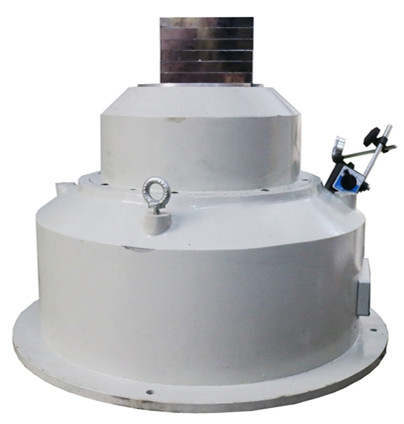

Angular Vibration Generator
Function	this device has the function of sinusoidal angular vibration with high frequency and large angular acceleration, it can increase the function of position and movement rate. It provides the benchmark of precise sinusoidal angular motion for tested load and used for dynamic testing and calibration of inertial original components, inertial navigation systems.
Payload Weight	2-10kg
Load Inertia	0.1kgm2
Dimension of Table Surface	200mm
Material of the Table	Super-hard Aluminum
Table flatness	0.01mm
Table Wobble	0.01mm
Motion Error of Main Axis	2
Angular freedom	Continuous
Peak Angular Acceleration	20000/s2
Sinusoidal Vibration Frequency	0.1Hz200Hz
Harmonic Distortion	2%
Position Accuracy	3
Position Resolution	0.36
Rate Range	0.005/s~400/s
Rate Resolution	0.001/s
Conductive Slipring	40 rings/3A
Remote Control Interface	RS232/RS422
Other	the remote control interface can be adjusted by user's requirements; the quantity of conductive slip ring can be adjusted by user's requirements; the dimension of table can be adjusted by user's requirements; Technical parameter can be adjusted by user's requirements.
