Wuhan Skyline Control Co., Ltd.
China Manufacturer with main products: Turntable, Motion Platform |

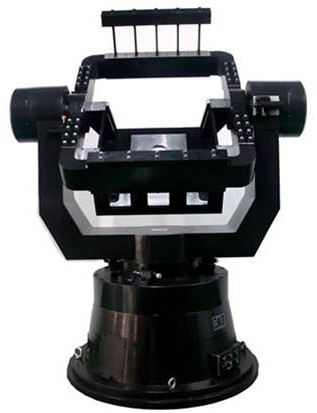

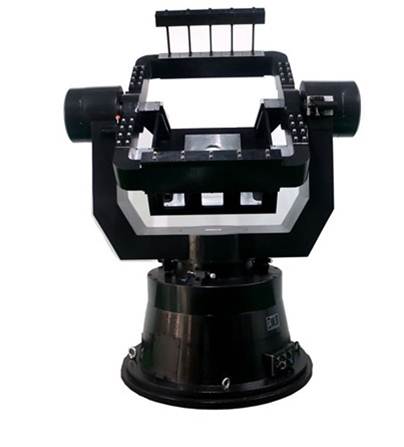

Two-Axis Position Rate Turntable
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 0.5
- Size: 200-500mm
- Model Number: DT16A
Specifications
Two-Axis Position Rate Turntable | ||
| Inner Axis(pitch) | Outer Axis(Azimuthal) | |
Function |
this device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it's used for static testing and calibration of inertial original components, inertial navigation systems. | |
Axis Orientation |
Vertical(TU) | |
Payload Weight |
5-40kg | |
Dimension of Table Surface |
200-500(mm) | |
Table flatness |
0.015mm | |
Perpendicularity of Two-Axis |
3 | |
Motion Error of Main Axis |
3 |
2 |
Angular freedom |
Continuous |
Continuous |
Position Accuracy |
3 |
2 |
Position Resolution |
0.5 |
0.5 |
Rate Range |
0.005/s~400/s |
0.005/s~600/s |
Rate Resolution |
0.001/s |
0.001/s |
Peak Acceleration |
200/s2 |
300/s2 |
Conductive Slipring |
40 rings/3A | |
Remote Control Interface |
RS232/RS422 | |
Other |
the remote control interface can be adjusted by user's requirements; | |
