Wuhan Skyline Control Co., Ltd.
China Manufacturer with main products: Turntable, Motion Platform |

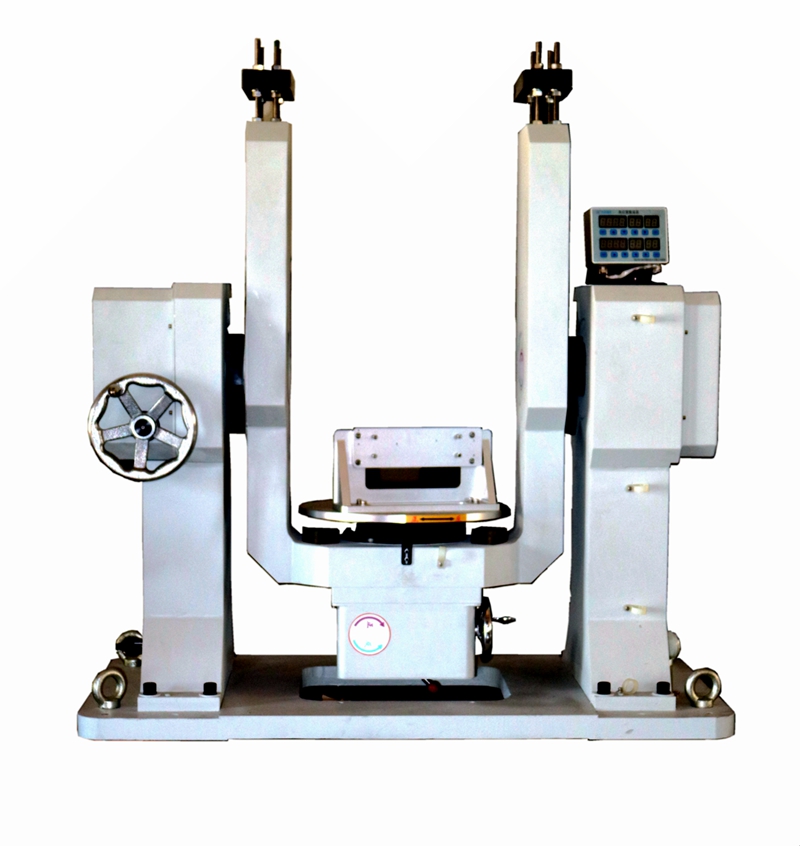

Two-Axis Digital Display Manual Turntable
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 1
- Size: 200-600mm
- Model Number: DT17H
Specifications
Two-Axis Digital Display Manual Turntable | ||
| Inner Axis(Azimuthal) | Outer Axis(pitch) | |
Function |
this device has the function of position and manual operation, it can provide the benchmark of precise single and two axis positioning for the tested load, it's used for static testing and calibration of inertial original components, inertial navigation systems. | |
Axis Orientation |
Horizontal(UT) | |
Payload Weight |
5-50kg | |
Dimension of Table Surface |
200-600(mm) | |
Magnetic Leakage |
2 Gauss(20mm from the table surface) | |
Material of the Table |
Stainless Steel | |
Table flatness |
0.015mm | |
Table Wobble |
0.02mm | |
Perpendicularity of Two-Axis |
3 | |
Motion Error of Main Axis |
2 |
3 |
Angular freedom |
Continuous |
100 |
Position Accuracy |
2 |
3 |
Position Resolution |
1 |
1 |
Conductive Slipring |
40 rings/3A | |
Other |
the quantity of conductive slip ring can be adjusted by user's requirements; | |
