Wuhan Skyline Control Co., Ltd.
China Manufacturer with main products: Turntable, Motion Platform |

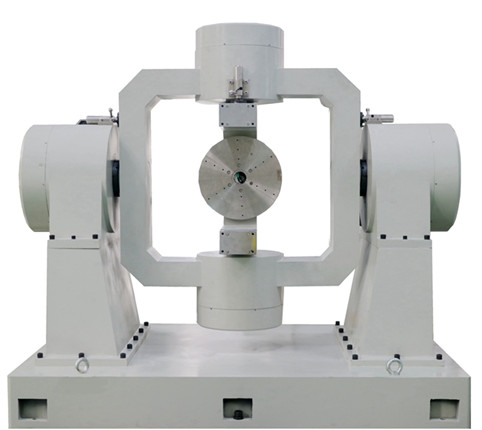

Three-Axis Horizontal Turntable
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 0.36
- Size: 500mm
- Model Number: TT17E
Specifications
Axis Orientation |
Horizontal(UOO) | |||
Payload Weight |
5-40kg | |||
Dimension of Table Surface |
500500500mm | |||
Table flatness |
0.015mm | |||
Degree of Triaxial Intersection |
0.5mm | |||
Perpendicularity of Two-Axis |
3 |
3 | ||
Motion Error of Main Axis |
2 |
3 |
3 | |
Angular freedom |
Continuous |
Continuous |
Continuous | |
Position Accuracy |
2 |
3 |
3 | |
Position Resolution |
0.36 |
0.36 |
0.36 | |
Rate Range |
0.005/s~600/s |
0.005/s~400/s |
0.005/s~200/s | |
Rate Resolution |
0.001/s |
0.001/s |
0.001/s | |
Peak Acceleration |
6000/s2 |
4000/s2 |
2600/s2 | |
System Bandwidth |
12Hz |
10Hz |
8Hz | |
Conductive Slipring |
80 rings/3A | |||
Remote Control Interface |
RS232/RS422 | |||
Simulation Interface |
Reflective Memory | |||
Other |
the remote control interface can be adjusted by user's requirements; | |||
