Wuhan Skyline Control Co., Ltd.
China Manufacturer with main products: Turntable, Motion Platform |

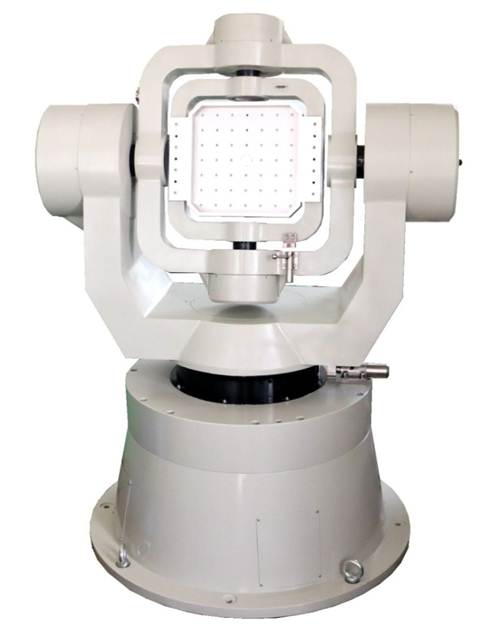

Three-Axis Vertical Turntable TT16H
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|---|
| Place of Origin: | Hubei in China |
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 0.36
- Size: 200-500mm
- Model Number: 350mm
Specifications
Three-Axis Vertical Turntable | ||||
Inner Axis (roll) |
Centre Axis(pitch) |
OuterAxis(Azimuthal) | ||
Function |
this device has the function of position, rate, low frequency Swing, simulation; It can provide the benchmark of precise single, two axis and three axis positioning and rate for the tested load, it's used for static testing and calibration of inertial original components, inertial navigation systems. | |||
Axis Orientation |
Vertical(UOO) | |||
Payload Weight |
5-20kg | |||
Load Dimension |
350350350mm | |||
Table flatness |
0.015mm | |||
Degree of Triaxial Intersection |
0.5mm | |||
Perpendicularity of Two-Axis |
3 |
3 | ||
Motion Error of Main Axis |
2 |
3 |
3 | |
Angular freedom |
Continuous |
Continuous |
Continuous | |
Position Accuracy |
2 |
3 |
3 | |
Position Resolution |
0.36 |
0.36 |
0.36 | |
Rate Range |
0.005/s~600/s |
0.005/s~400/s |
0.005/s~200/s | |
Rate Resolution |
0.001/s |
0.001/s |
0.001/s | |
Peak Acceleration |
600/s2 |
400/s2 |
200/s2 | |
Conductive Slipring |
80 rings/3A | |||
Remote Control Interface |
RS232/RS422 | |||
Other |
the remote control interface can be adjusted by user's requirements; | |||
