Wuhan Skyline Control Co., Ltd.
China Manufacturer with main products: Turntable, Motion Platform |

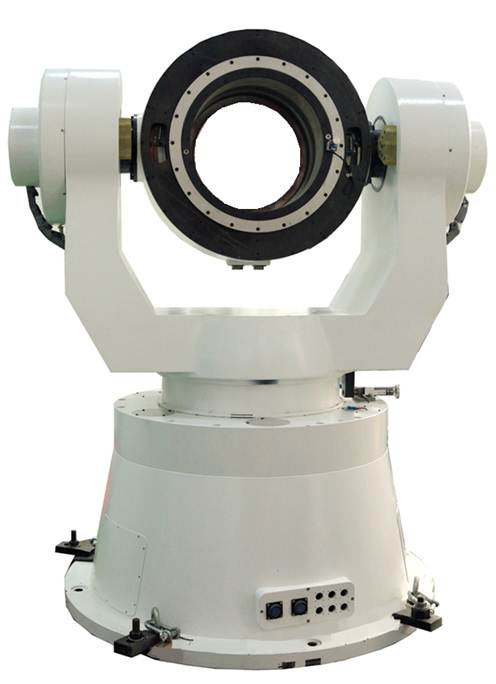

Three-Axis Simulation Turntable
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Mid East |
|---|
Quick Details
- Brand Name: SKYLINE
- color: WHITE
- Theory: n/a
- Resolution: 0.36
- Size: 400MM
- Model Number: TT13A
Specifications
Three-Axis Simulation Turntable | ||||
Inner Axis |
Centre Axis(pitch) |
Outer Axis | ||
Function |
this device has the function of simulation, position, rate and Swing; It can simulate the three-dimensional motion of the vehicle, it is used in the semi-physical simulation system of the ground, it provide a clean and real sports environment for the load such as the warhead and the seeker and also can provide the benchmark of precise single, two axis and three axis positioning and rate for the tested load, it's used for static testing and calibration of inertial original components, inertial navigation systems. | |||
Axis Orientation |
Vertical(UOO) | |||
Payload Weight |
20-80kg | |||
Load Dimension |
400400mm | |||
Table flatness |
0.01mm | |||
Degree of Triaxial Intersection |
0.5mm | |||
Perpendicularity of Two-Axis |
3 |
3 | ||
Motion Error of Main Axis |
2 |
3 |
3 | |
Angular freedom |
150 |
65 |
Continuous | |
Position Accuracy |
2 |
3 |
3 | |
Position Resolution |
0.36 |
0.36 |
0.36 | |
Rate Range |
0.005/s~800/s |
0.005/s~400/s |
0.005/s~200/s | |
Rate Resolution |
0.001/s |
0.001/s |
0.001/s | |
Peak Acceleration |
2500/s2 |
1500/s2 |
800/s2 | |
System Bandwidth |
8Hz |
6Hz |
4Hz | |
Conductive Slipring |
80 rings/3A | |||
Remote Control Interface |
RS232/RS422 | |||
Simulation Interface |
Reflective Memory | |||
Other |
the remote control interface can be adjusted by user's requirements; | |||
