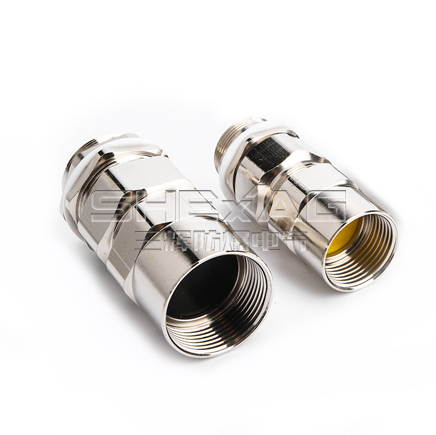

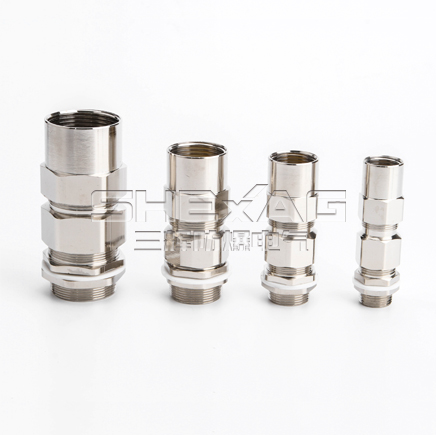

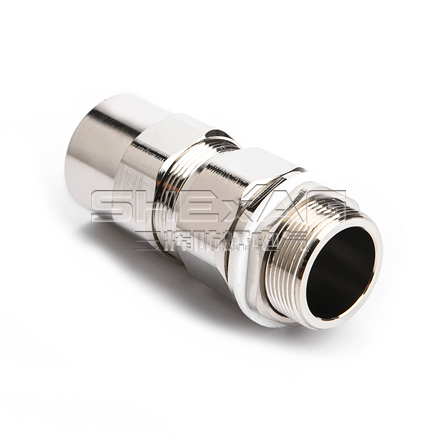

Double Compression Metal Cable Glands IP66 with Male Thread, & Female Thread

FOB Price:	5.00 - 50.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Month
Shipping:	By sea,by air,by express
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Bag+carton Bag+carton+wooden box

Quick Details

Material: Brass
Size: M16-M115,G1/2-G4,NPT1/2-NPT4
Protection Level: IP68
Brand Name: Sanhui
Color: Silivery/Golden
Model Number: SH-BDM-6-II
Optional materials: Stainless steel
Seal: Silicon rubber
Ex-mark: Exd IIC/Exe II IP66
Customization: Accepted
Protection level: IP66
Certificate: ISO9001,Ex certificate
Optional accessories: Lock nut,earth tag,PVC shroud,and so on
Thread: Male thread and female thread
For cables: Armored cable

Specifications

Materials:Brass,Stainless steel 304,316,brass with nickel planted

Sealing materials:Silicon rubber (-60 ~ +80)

Explosion mark:Exd IIC GB/Exe II IP66

Fireproof grade:V0(UL94)

with quick installation,safety,reliability,and other characteristics of good protection;

It is suitable for clamping and fixing various types of armored cables.

Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.

Double compression metal cable glands IP66 with male threadand female thread

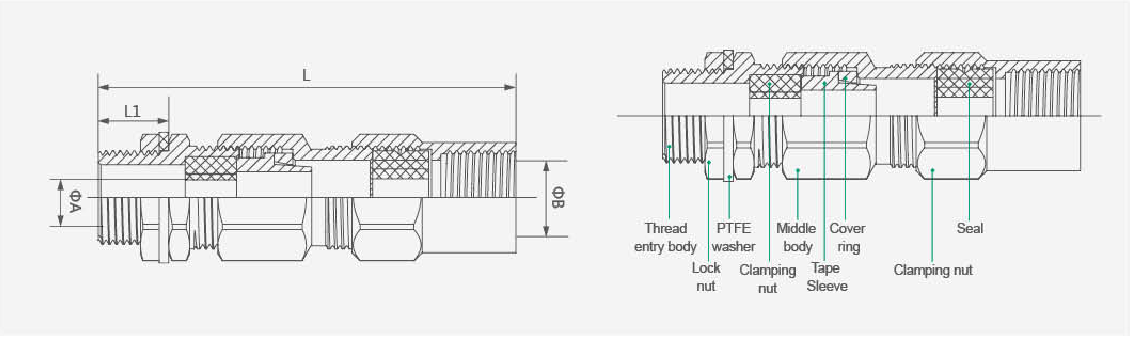

Mode	Metric	NPT	G	Outer diameter of cable (mm)		Thread length L1	Total length L
Mode	Metric	NPT	G	Inner sheath	Outer sheath	Thread length L1	Total length L
SH-BDM-6-II-01	M16*1.5	-----	-----	5-8	7-15	15	87
SH-BDM-6-II-02	M20*1.5	NPT1/2	G1/2	5-10	8-15	15	87
SH-BDM-6-II-03	M25*1.5	NPT3/4	G3/4	8-15	11-20	15	88
SH-BDM-6-II-04	M32*1.5	NPT1	G1	11-20	14-27	17	95
SH-BDM-6-II-05	M40*1.5	NPT1 1/4	G1 1/4	14-27	19-33	19	110
SH-BDM-6-II-06	M50*1.5	NPT1 1/2	G1 1/2	16-31	22-40	19	111
SH-BDM-6-II-07	M63*1.5	NPT2	G2	29-43	29-50	20	117
SH-BDM-6-II-08	M75*1.5	NPT2 1/2	G2 1/2	38-55	35-63	21	124
SH-BDM-6-II-09	M85*1.5	NPT3S	G3S	48-65	41-77	24	135
SH-BDM-6-II-10	M90*1.5	NPT3	G3	48-65	41-77	24	135
SH-BDM-6-II-11	M100S*1.5	NPT4S	G4S	50-80	55-90	26	150
SH-BDM-6-II-12	M110*1.5	NPT4	G4	49-90	61-104	26	155

Our workshop
Double compression metal cable glands IP66 with male threadand female thread
