Home >Products Catalog > 210 BOPP Adhesive Tape Slitting Rewinding Machine Line

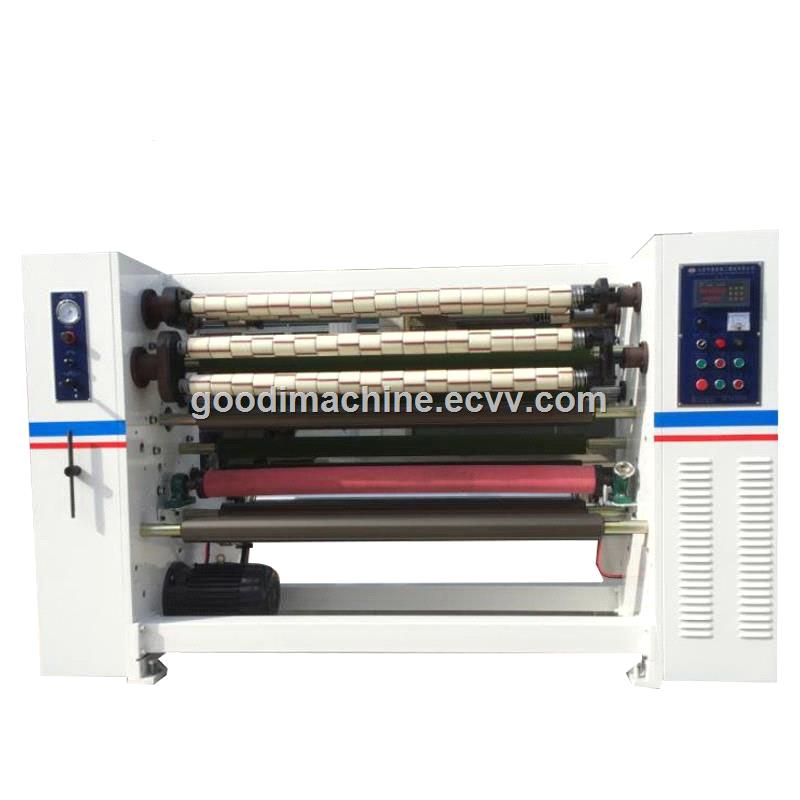

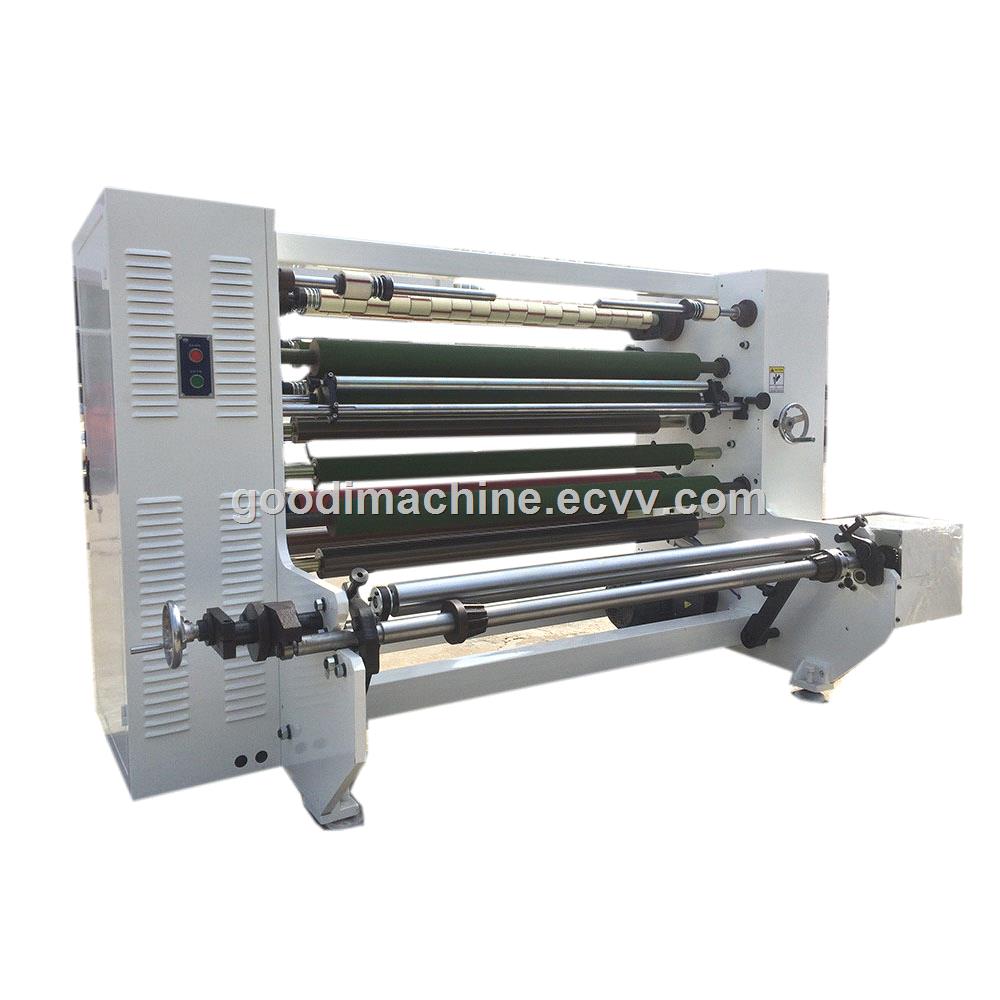

210 BOPP Adhesive Tape Slitting Rewinding Machine Line

FOB Price:	8000.00 - 10000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Any seaport in China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Shaft Unwind Plastic Film Slitting Rewinding Ma...

Price:40,000.00-100,000.00 USD/Set

Min. Order:1 Set
Multifuction water based corrugated board print...

Price:6,400.00-28,700.00 USD/Set

Min. Order:1 Set
Improved Automatic Grooving Machine Model SG-95...

Price:1.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hebei in China

Quick Details

Type: Other
Brand Name: GD
Packaging Material: Wood
Packaging Type: Film
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 1500kg
Model Number: 210
Power: 5kw
Voltage: as clients requirement
Driven Type: Electric
Automatic Grade: Automatic
operation width: 1.3/1.6m
max unwinding diameter: 800mm
max rewinding diameter: 320mm
min slitting width: 12mm
cutting tool: 0.2x22x60mm
machine speed: 150m/min

Specifications

1.Brief Introduction:

Apply to slitting BOPP sealing tape /fiberglass paper tape.

2.Techincal parameters:

SPECIFICATIONS for tape slitting machine
Operation width		1300mm
Max unwinding diameter		800mm
Max rewinding diameter		4 shaft 150mm,2 shaft 320mm
Min slitting width		12mm
Rewinding speed		180m/min
Cutting tool		0.2x22x60mm
Machine power		5.5w

3.Performance features:

(1)Centralized control of all buttons,easy operation.

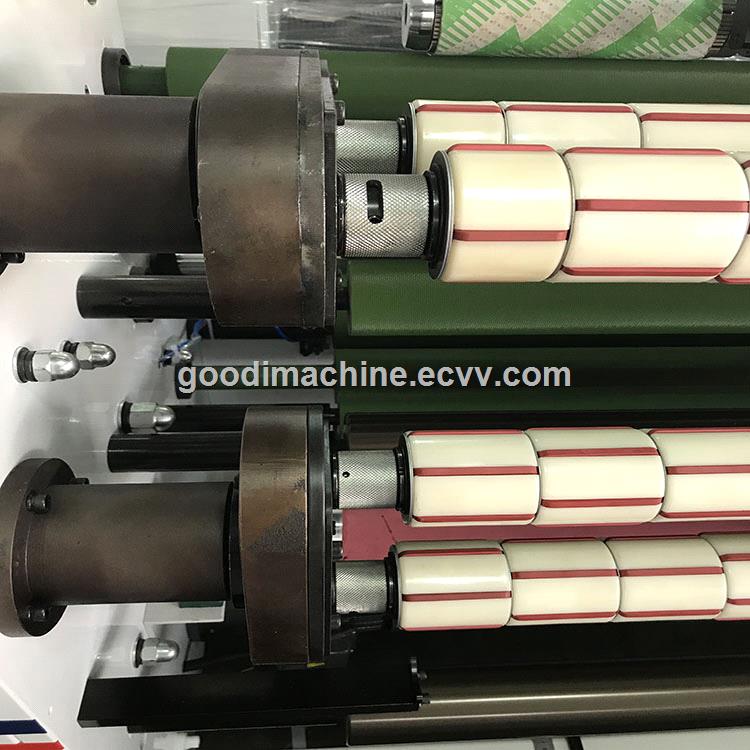

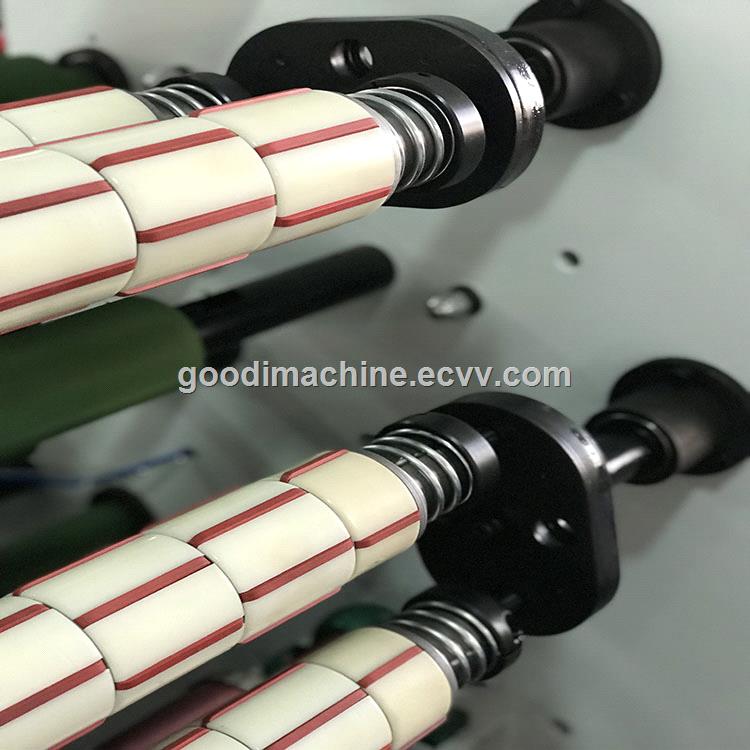

(2)Turret system:4 rewinding shafts,automatic exchanging after completion of rewinding.

(3)Unwinding tension is controlled by pneumatic braking control.

(4)the rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

(5)Curved stretch roller:eliminate tape wrinkling during extension and feeding.
