Home >Products Catalog > Super Clear BOPP Adhesive Packing Tape Rewinding Cutting Machine

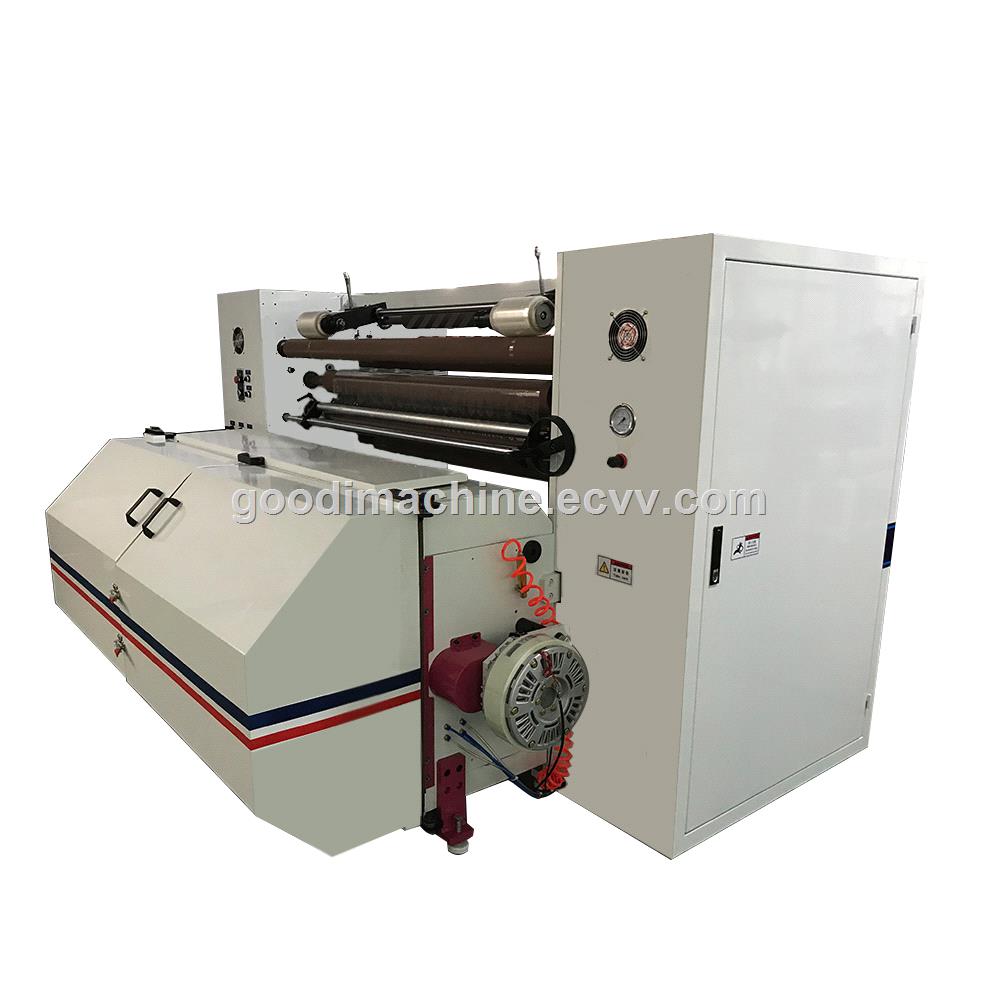

Super Clear BOPP Adhesive Packing Tape Rewinding Cutting Machine

FOB Price:	15000.00 - 20000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Any seaport in China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Quick Details

Type: Other
Brand Name: GD
Packaging Material: Wood
Packaging Type: Film
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 1.5KG
Model Number: 211
Power: 5KW
Voltage: depend on clients
Driven Type: Electric
Automatic Grade: Automatic
Machine width: 1.0M 1.3M 1.6M
Max unwinding diameter: 800mm
Min slitting width: 12mm
Max rewinding diameter: 320mm
Machine speed: 0-200m/min
Razor: 0.2x22x60mm
Main motor: 5HP

Specifications

1.Brief Introduction:

this tape slitting machine can slit super clear BOPP tape and common BOPP tape.

Super clear bopp adhesive packing tape rewinding cutting machine

2.Techincal parameters:

SPECIFICATIONS for Super clear BOPP scotch packing tape slitting machine
Main motor(Taiwan Liangji)		AC+5HP+ frequency control(Taiwan Shi Lin)
Rewinding roller		Six lines type(76mm)
PU press roller		Linear guideway cylinder push system
Exchange system		Manual/automatic
Unwinding tension		10kg magnetic brake
Rewinding tension		5kg magnetic brake Changeable
Machine stop label posting		Manual/automatic
Trim rewinding(containing edge break detection)		Automatic screw way(10000m trim exchange)
Machine wallboard thickness		28mm

3.Performance features:

1.this machine is a kind of vertical slitting & rewinding machine

2. Independent master control panel, more flexible and even easier operation.

3.Rewinding shafts,automatic exchanging after completion of rewinding.

4. Air inflatable shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control

5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control

6. Main motor with frequency converter for speed regulation

7. Equipped with rim charge conveying device

8.Arc stretching roller can eliminate the tape wrinkles and flat the material for feeding well.
