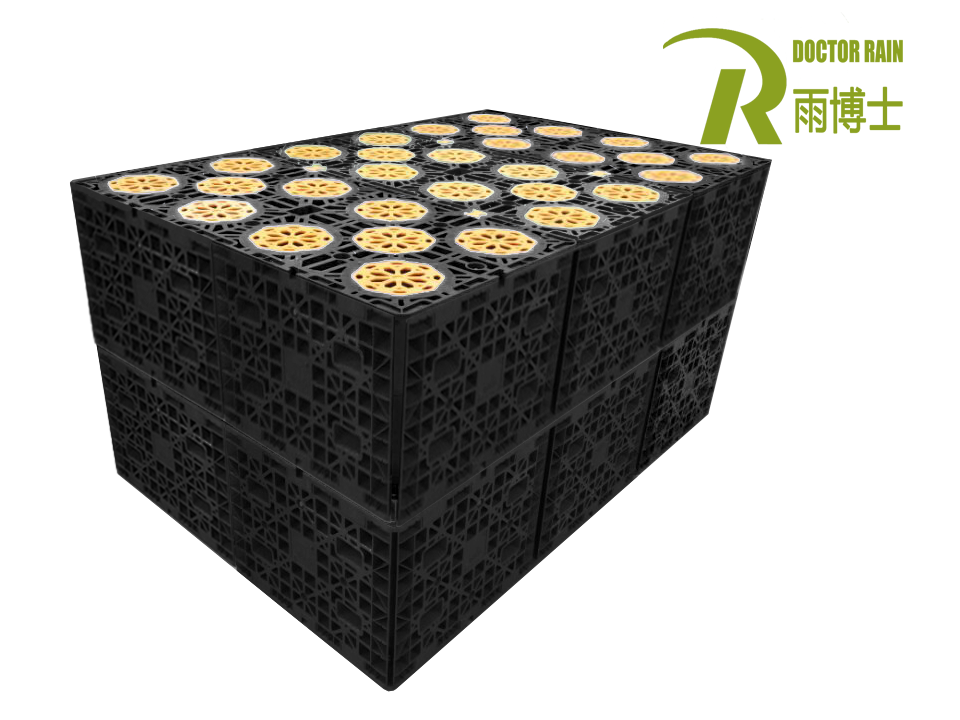

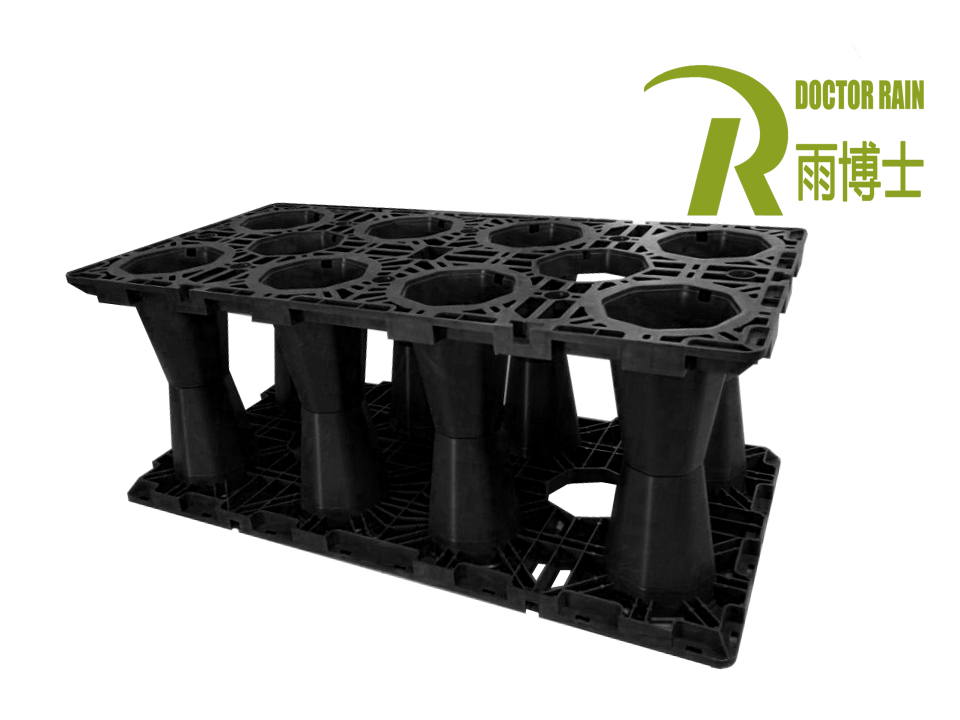

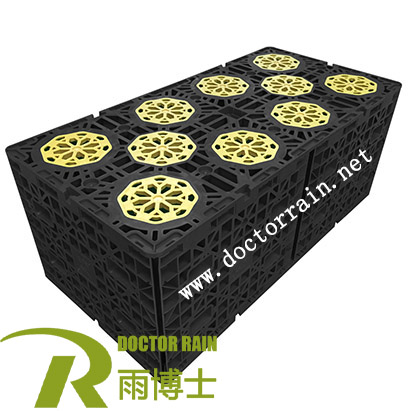

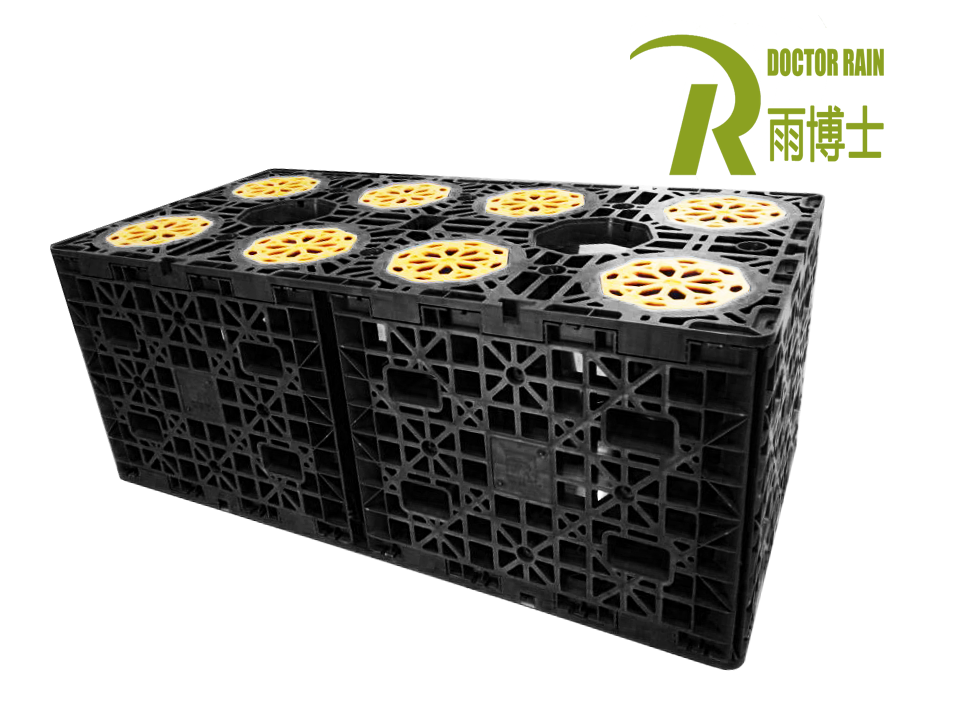

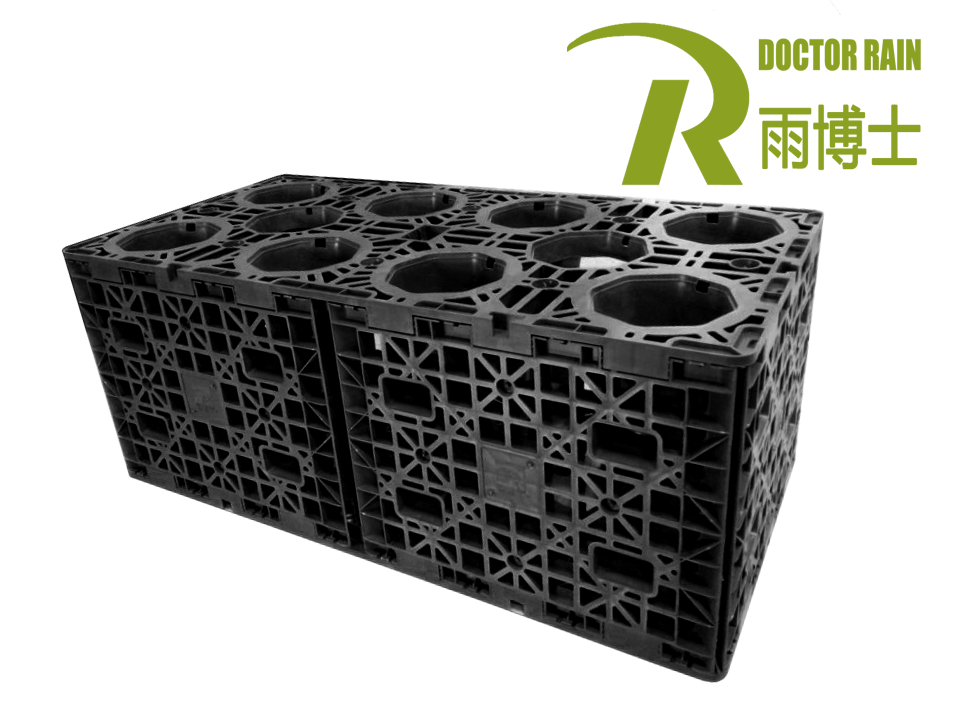

Underground Rainwater Storage Tank -Soakaway Crates - Infiltration Tank - Attenuation Crates - Detention Tanks

FOB Price:	1.00 - 100.00 USD/Square Meter
Supply Ability:	10,000 Square Meter(s) per Day
Shipping:	FOBShenzhen
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

150m3 Surge Tank, Potable Water Surge Tank

Price:1000.00 USD/Ton

Min. Order:1 Ton
PTFE/ETPFE/PFA/PO lined storage tank

Price:600.00-1,000.00 USD/Set

Min. Order:1 Set
Stainless Water Storage Tank 500L

Price:572.00-600.00 USD/Set

Min. Order:20 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Pallet

Quick Details

Brand Name: Doctor Rain
name: Zepo Yu
Material: Polypropylene
application: rainwater storage
Type: New
Model Number: YBS-M1000
Size: 1000*500*400mm

Specifications

Flexible Design: the size and shape of the underground pool which made of of the modular rainwater tank can be assembled according to the need of the site.

High Loading Capacity: the vertical loading capacity of the rainwater modular tank can reach 90 tons, the lateral loading capacity can reach 62 tons.

High Void Ratio: the void space inside the rainwater tank reaches 95%,we can storage more water in it.

Long Service Life: the designd service life of the modular tank is 50 years.

Easy Installation: the assembling of the modular tank can be done just by hands, no large machines required.

Time Saving: one person can install 75 cubic meters each day.

Compact Storage: the modular tank can be piled on pallets, one 40'HC container can hold 294.4 cubic meters.

Environmental protection: the modular rainwater tank can be made of 100% recycled PP material,after service life, the PP material can be recycled once again.

Money Saving: Compared with the traditional stainless steel and concrete pools, Doctor Rain's Rainwater Module reduces the time cost, transportation cost and later maintenance cost in many ways.

Model No.	YBS-M1000
Size	1000x500x400mm
Weight	16kg/tank
Void Ratio	95%
Storage Capacity	200L/tank
Load Capacity	300KN/m2 - 650KN/m2
Temperature	-30-120
Material	Virgin or Recycled PP
Colors Available	Green,Gray,Blue,Black

Doctor Rain Rainwater Harvesting Module is a part of the rainwater utilization system, which can effectively collect and store rainwater. Rainwater resources collected through Doctor Rain Rainwater Module can be used to wash toilets, sprinkle pavement, irrigate lawns, water landscape, and even be used for circulating cooling water and fire fighting water. It can alleviate the current shortage of urban water resources, and is an effective way to open source and save water.
