Home >Products Catalog > 100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester

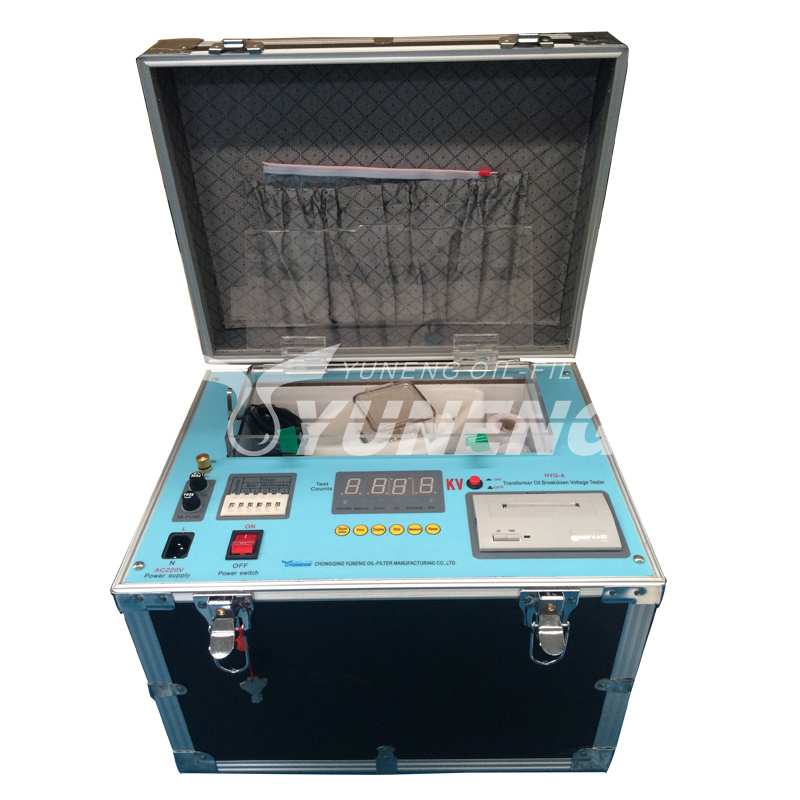

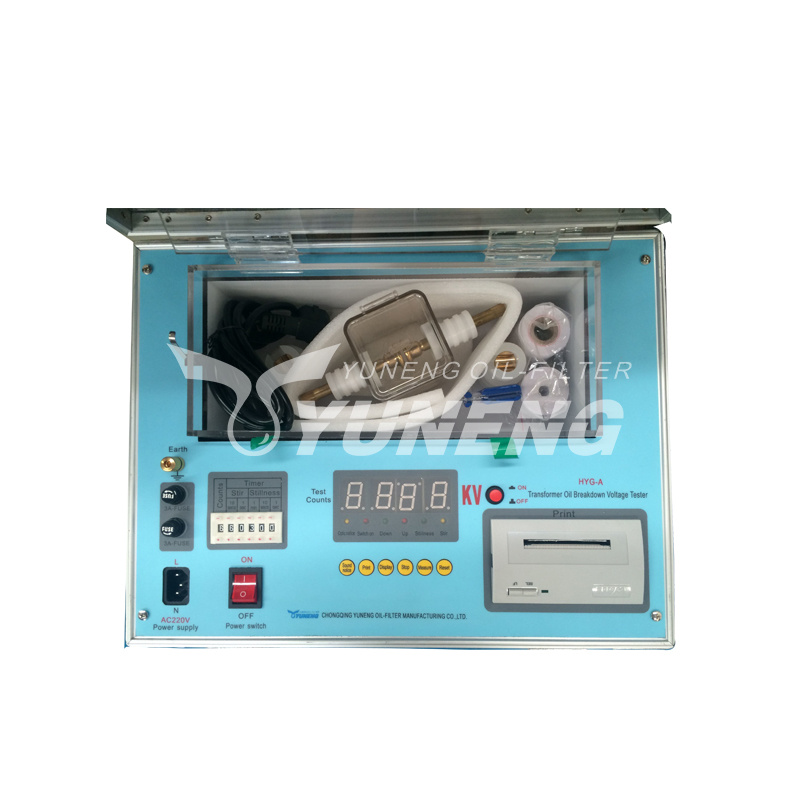

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester

FOB Price:	1400.00 - 1500.00 USD/Set
Supply Ability:	1,000 Set(s) per Month
Shipping:	Sea Transportation/ Air Transportation/ Automobile Transportation
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	iron sheet case or as request for dielectric strength tester

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: Yuneng
Weight: As per capacity
color: Gray or as per buyers
Model Number: YN Oil Testing Equipment
Function: dielectric strength tester
Certification: CE ISO
Standard: IEC156
Color: Blue
Measuring range: AC 0-80KV
Working power supply: AC220V plus or minus 10%, 50HZ plus or minus 5%
Regulator speed: 2KV / S plus or minus 10%
Usage: dielectric strength tester

Specifications

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester

100KV Automatic Transformer Insulation Oil BDV Dielectric Strength Tester

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester iS applY to test the insulating oil's dielectric strength, which is designed as per the requirement of IEC165 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out. after breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; this effectively safeguards the personnel security and equipment safety.

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester Features:

100KV transformer oil dielectric strengthe test equipment/oil bdv tester Adopts indUstrial SCM to control which is applied to integrate circuit, new model I/0 connection, particular testing and anti-jamming technology which is largely improved the machine's capacity.

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester Main features:

1. Simply operate: automatically (can be finished just press on key)

2. Menu controlled. Input data can clear

3. Can store 99 groups' oil testing data which is convenient to reading and print. the testing data can keep 100 years under the condition of power off.

4. System time can go on running under power off; (the system time just for reference can not be the standard of timing)

5. Can upgrade software through RS232

6. High capacity of anti-jamming and high precision of testing.

7. Small volume, light which operated in the open air very conveniently.

100KV Automatic Transformer Insulation Oil BDV / Dielectric Strength Tester Parameters:

Working power supply: AC220V 10%, 50HZ 5%
Measuring range: AC 0-80KV
Limit the current: 5mA
Measurement accuracy: 1%
Regulator speed: 2KV / S 10%
pre-Set: the number of 1-9
Mixing time: 0 to 1 minutes and 39 seconds
Standing time: 0 to 10 minutes and 39 second
Conditions: ambient temperature 0 C -35 C
Relative humidity 75%
Oil cup Clearance: 2.5mm (oil cup plug-foot Diameter)
Dimensions: 415 315 315mm3
10.Weight: 28kg
