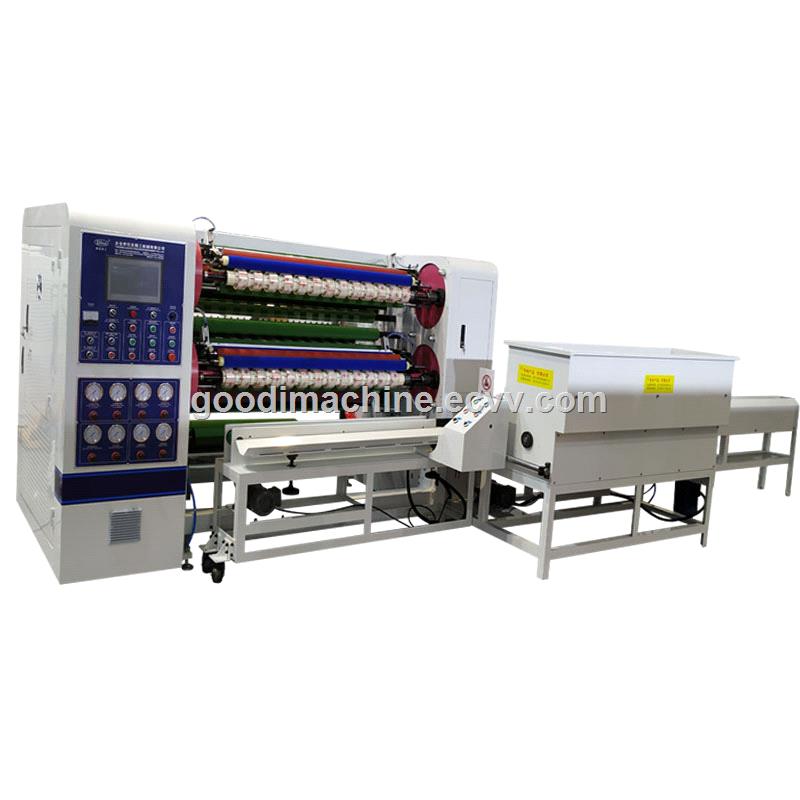

Semi-Automatic BOPP Scotch Tape Slitting Rewinding Machine

FOB Price:	30000.00 - 37000.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Other
Brand Name: 600
Packaging Material: Wood
Packaging Type: Film
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 2000kg
Power: 5KW
Voltage: according to local voltage
Automatic Grade: Semi-Automatic
Machine width: 1.3M/1.6M
Max unwinding diameter: 800mm
Cutting size: General fixed size
Max rewinding diameter: 4 shafts exchange :80-140mm
Machine speed: 0-250M/min
Razor: 0.2x22x66mm (air blade is optional)
Main motor: 10KW

Specifications

1.Brief Introduction:

this machine can slit super clear BOPP tape and common BOPP tape with automatic paper core loader, high quality product and high efficiency.

Semiautomatic bopp scotch tape slitting rewinding machine

2.Techincal parameters:

Main motor(Taiwan Liangji)		AC+5HP+ frequency control(Taiwan Shi Lin)
Rewinding roller		Six lines type(76mm)
PU press roller		Linear guideway cylinder push system
Exchange system		Manual/automatic
Unwinding tension		10kg magnetic brake
Rewinding tension		5kg magnetic brake Changeable
Machine stop label posting		Manual/automatic
Trim rewinding(containing edge break detection)		Automatic screw way(10000m trim exchange)
Machine wallboard thickness		28mm

3.Performance features:

1.this machine is a kind of vertical slitting & rewinding machine

2. Independent master control panel, more flexible and even easier operation.

3.Rewinding shafts,automatic exchanging after completion of rewinding.

4. Air inflatable shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control

5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control

6. Main motor with frequency converter for speed regulation

7. Equipped with rim charge conveying device

8.Arc stretching roller can eliminate the tape wrinkles and flat the material for feeding well.
