Chonqging Yuneng Oil-Filter Manufacturing Co., Ltd.

China Manufacturer with main products: Ultra-High Voltage Transformer Oil Purification Equipment, Double Stage High Vacuum Transformer Oil Purifier, Vacuum Transfomer Oil Purifier,...

Home >Products Catalog > HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE

HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE

FOB Price:	15000.00 - 50000.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	Sea Transportation/ Air Transportation/ Automobile Transportation
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Iron sheet case or wooden case/Improving oil's DIELECTRIC VALUE

Quick Details

Brand Name: Yuneng
Medium Material: silica gel
Filtration Grade: Hepa Filter
Construction: Box Filter
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: CE, ISO
Weight: As per capacity
Dimension(L*W*H): As per capacity
Model Number: YZS-3000, YZS-6000, YZS-9000, YZS-12000
Application: Improving oil's DIELECTRIC VALUE
After-sales Service Provided: Engineers available to service machinery overseas
Structure Material: Carbon steel
Vacuum pumps: 2 stage rotary vacuum pump+booster roots
Oil pump: Centrifugal oil pump, better than gear pump
Electric Wiring: IEC
Heating Type: Indirect heating
Condenser: Each for the vacuum pump and roots pump
Filter: High quality to 0.5 micron
Usage: Transformer Oil Filtering Machine

Specifications

HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE

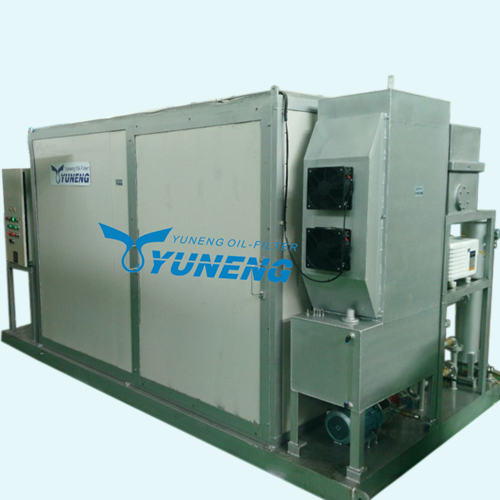

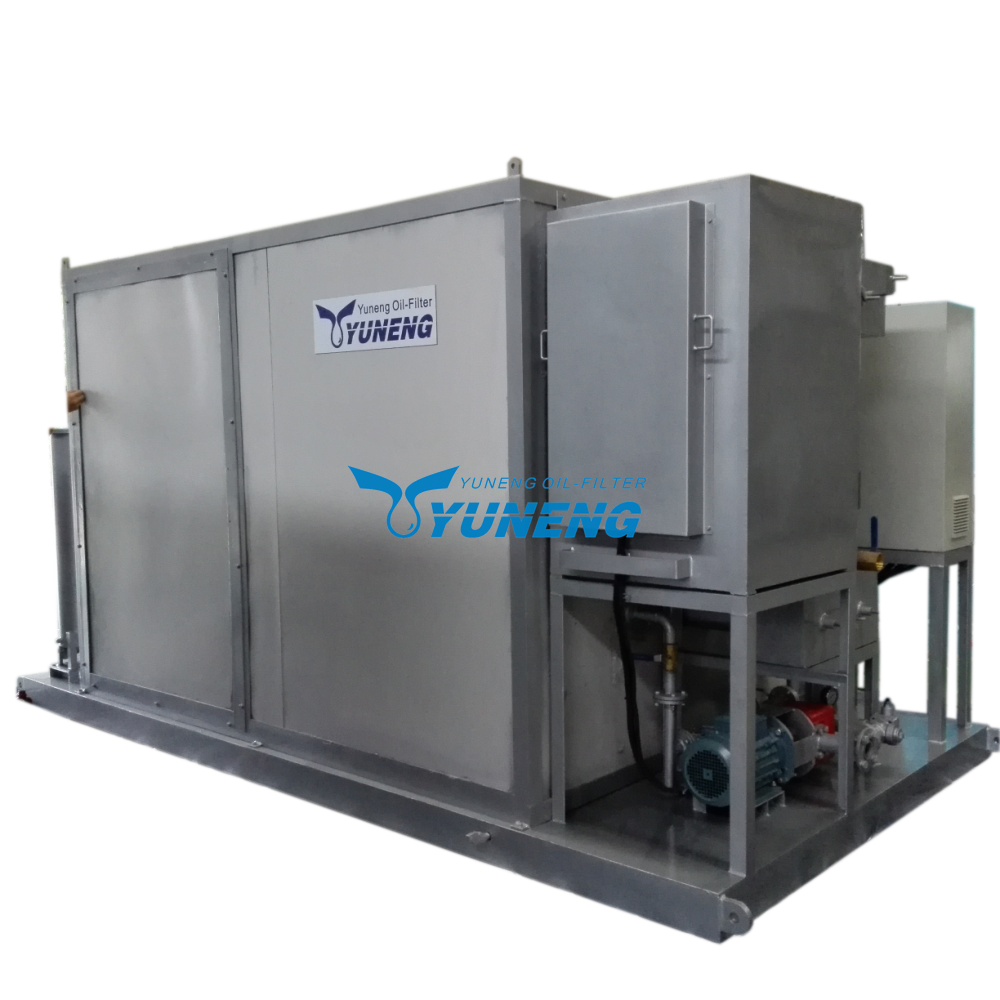

HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE has integrated the purification technology of low temperature physical adsorption (except dielectric loss, decolor and deodor) and online regeneration adsorption filters in one, with high speed purification and oil quality protection, etc., It can efficiently remove moisture, impurities, oxidative deterioration matter, hydrocarbons, and chromosome gum and other harmful substances in oil. After decoloring with our machine, the oil will be as clean as new, especially the dielectric loss index of the transformer oil will recover to new oil's standards, which ensures oil circulating for long-term use.

HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE Features:

1. It doesn't need Acid and alkali process, simple processing and reduce the cost of oil filtration.

2. Full process is physical purification. The oil can be recovered and the additives in the oil won't be damaged.

3. The operation is under full-closed, safety and environmental protection.

4. Extend the lifetime of antioxidant and additives by removing the oxidizing material in the oil.

5. Good result on the declorization. It can restore the unqualified transformer oil to be clean qualified oil.

6. The absorption agents can reused after activated and regenerated by the regeneration system so as to extend filter life cycle.

HV Transformer Oil Filtering Machine , Dielectric Oil Treatment System for Improving oil's DIELECTRIC VALUE Parameters:

Item	Unit	Used oil index before regeneration	Oil index after regeneration
Appearance	/	The color gets darker and has sediment in it	Clean and transparent, no suspended solids
Oxidation - Sludge	%		0.001
Neutralization value (acidity)	mg KOH / g	0.15	<0.05
Color	L		1
Corrosive Sulphur			Absent
Particle size	m		3
Dielectric loss factor ( 90C)		0.015	< 0.002
Interfacial tension		<35	>35

HV Transformer Oil Filtering Machine Dielectric Oil Treatment System for Improving oils DIELECTRIC VALUE

Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14,500 square meters, specializes in the R&D, manufacturing, and marketing of turn-key projects in oil purification, water and gas filtration, and other reclamation products. We gather a group of specialized talents with years of working experience and technological development. Now we have 168 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture. We attach great importance to product quality, specialization, dedication and constant improvement......

HV Transformer Oil Filtering Machine Dielectric Oil Treatment System for Improving oils DIELECTRIC VALUE
