>Products Catalog > Vamp Marking Machine > Locate Footwear & Clothing Line Plotter Machine Safety & Useful Cutting

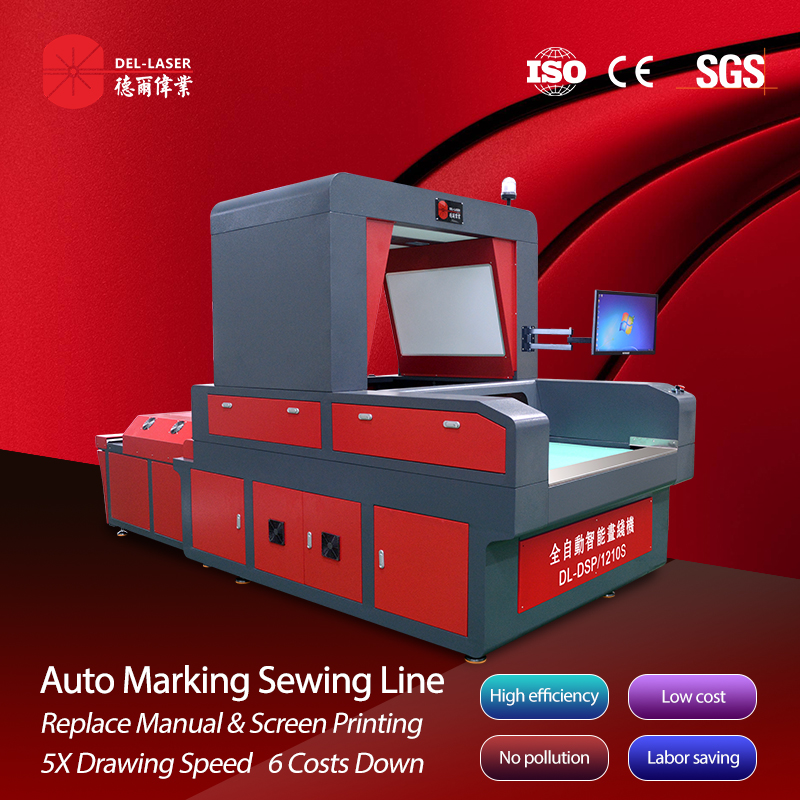

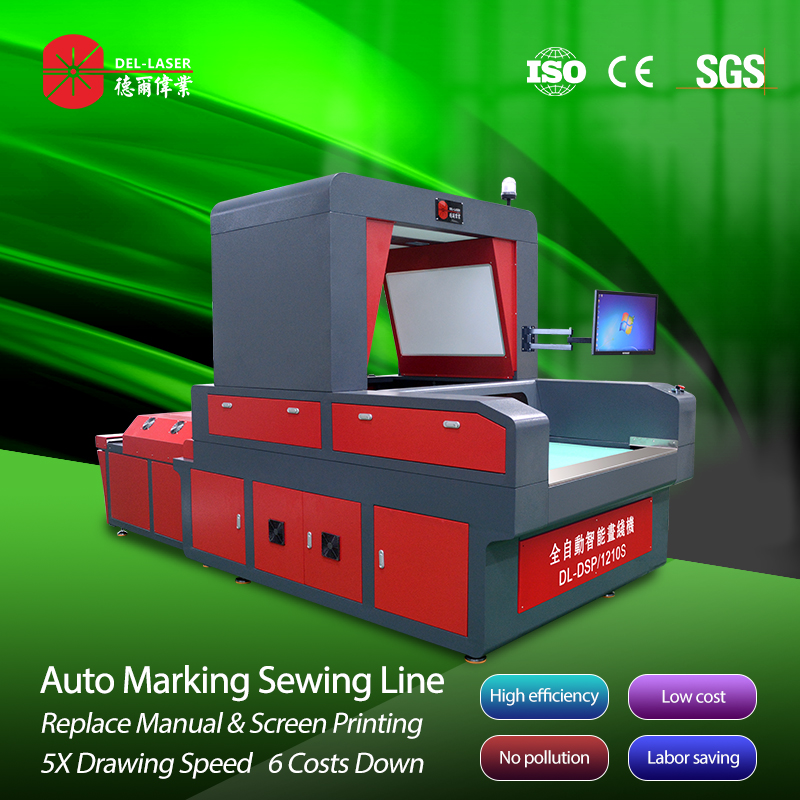

Locate Footwear & Clothing Line Plotter Machine Safety & Useful Cutting
| Supply Ability: | 30 Set(s) per Month |
|---|---|
| Shipping: | 10-25 working days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | wooden case |
Quick Details
- Type: Laser Printer
- After-sales Service Provided: Engineers available to service machinery overseas
- Weight: 690 kg
- Brand Name: DEL
- Type: Vamp Marking Line Machine
- Certification: ISO | CE | SGS
- Dimensions(L*W*H): 2600*1850*1680mm
- Gross Power: 380V
- Voltage: 50HZ
- Automatic Grade: Automatic
- Model Number: DL-DSP/1210S
- Condition: New
- Application: Laser Marking
- Certification: CE,ISO
- Graphic Format Supported: Other,JEPG
- Condition: New
- Applicable Material: Vamp Marking
- Power(W): 6.5 kw
- Working Accuracy: 1200mm * 1000mm
- Cooling Mode: Water Cooling
- Laser Type: Fiber Laser
- Working Area: 1200mm * 1000mm
Specifications
Locate Footwear and Clothing Line Plotter Machine Safety / Useful Cutting
Detailed Product Description
| Marking Line Speed: | 600-1500mm/s(2500-5000pieces/H) | Recognition System: | Industrial Camera |
| Net Weight: | 850 kg | Rated Power: | 6.5 Kw |
| Voltage: | 380 V 50 HZ | Ink: | High Temperature Disappears Ink, Water Disappears Ink, UV Ink, Non-fading Ink, Deferred Ink, Silver Refill Ink |
PARAMETERS
| Model | DL-DSP/1210S |
| Machine Size | 2600mm * 1850mm * 1680mm |
| Max Working Area | 1200mm * 1000mm |
| Max Printing Line Speed | 600~1500mm/s |
| Rate Power | 6.5 KW |
| Weight | 850 KG |
| Power Supply | 380V 50HZ |
| Air Pressure | 0.4-0.8MPA |
| Working Conditions | Temp:15-45 Hum:35%-65%RH |
| Positioning Accuracy | 0.1 |
| Drawing Line Accuracy | 0.1 |
| Ink Color | Orange Red, White, Blue, Yellow, Silver, Grey, Purple, Red |
| Choice of ink | High temperature disappears ink, water disappears ink, fluorescent ink, never fades ink, delay disappears ink, Silver Refill Ink |
FEATURES
1. It is a national patent product, and its quality and service are guaranteed.
2. It works 2-5 times faster than people and it can work continuously for more than 12 hours.
3. It supports remote operation and can quickly solve after-sales problems.
4. the camera and computer are locked to prevent theft.
5. A variety of inks to choose from.
6. this machine has a pressing system system for curling upper material.
7. High degree of automation of line drawing machine. Workers only need to place the cutting pieces which need to make vamp marking line into the machine at will.
8. Automatic intelligent line drawing machine sprays line speed up to 600-1500mm/s, saving 4-5 line drawing workers for the enterprise.

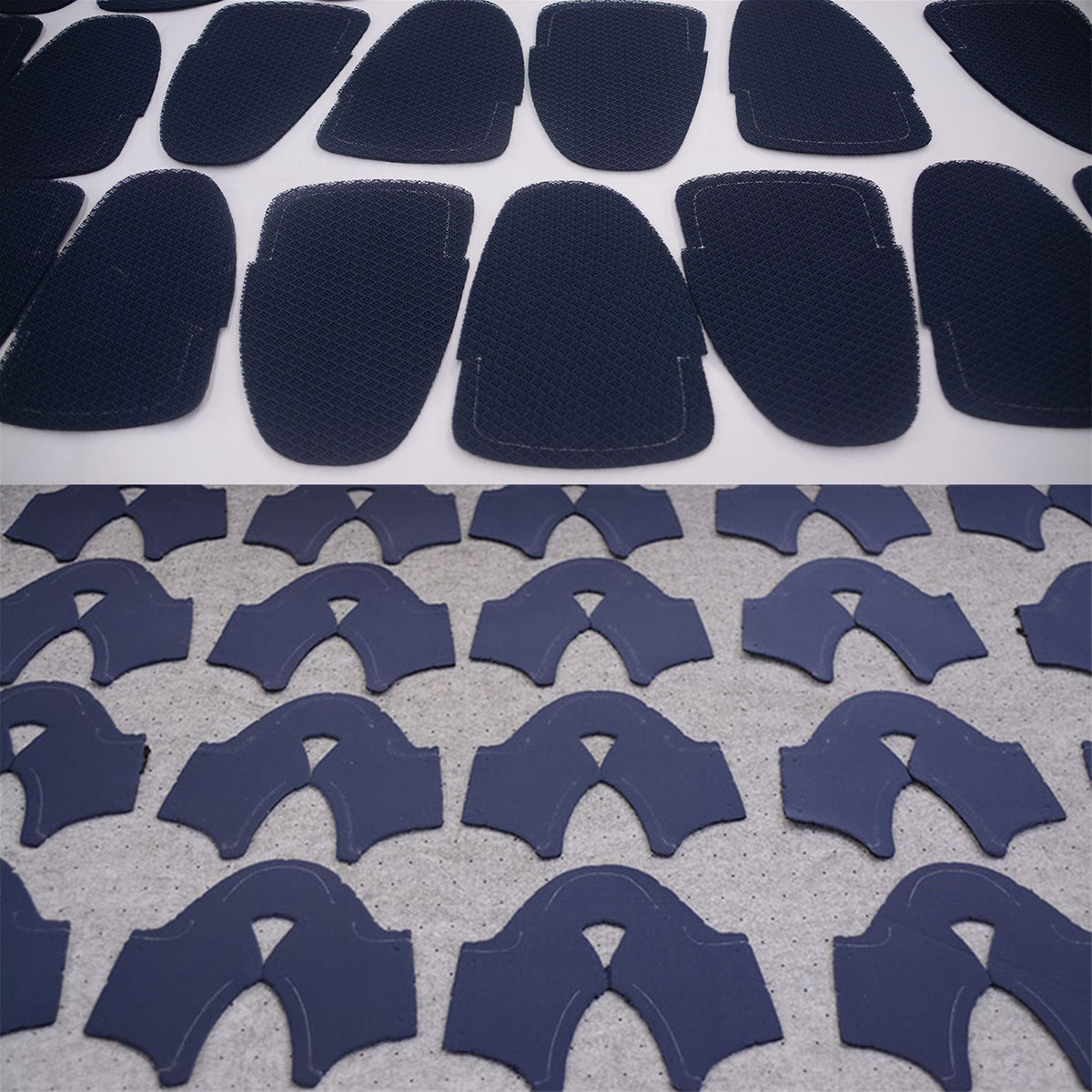

SAMPLES
PACKAGING & DELIVERY
1. When the machine is packaged, it will be rust-proof first, and then the foam will be wrapped around the collision-proof
Edge of the machine to prevent it from being rubbed.
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box.
4. Shipped in 10 - 25 working days after payment.
