Data Acquisition Modules, PLC Data Via RS485 Serial Port to 433 MHz Wireless Network S280
| FOB Price: | 170.00 - 180.00 USD/Bag |
|---|---|
| Supply Ability: | 500 Bag(s) per Week |
| Shipping: | shenzhen |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1x RTU, 1x GSM Antenna, 1x AC/DC Adaptor, Android&IOS Apps, 1x PC Configuration Software, 1x USB cable, 1x User Manual, 1x Backup battery inside, |
Quick Details
- Usage: Personal
- Brand Name: king pigeon
- color: bule
- GSM Frequency: 850/900/1800/1900Mhz
- Power: 9-36VDC
- Model Number: S280
- Backup Battery: 3.7V 1200mAH
- Humidity range: Relative humidity 95% (condensation free)
- Exterior dimension: 168mm*113mm*32.3mm
- Net Weight: 1000g
Specifications
Data Acquisition Modules, PLC Data Via RS485 Serial Port to 433 MHz Wireless Network S280
Name:Wireless GSM 3G RTUModel:S280

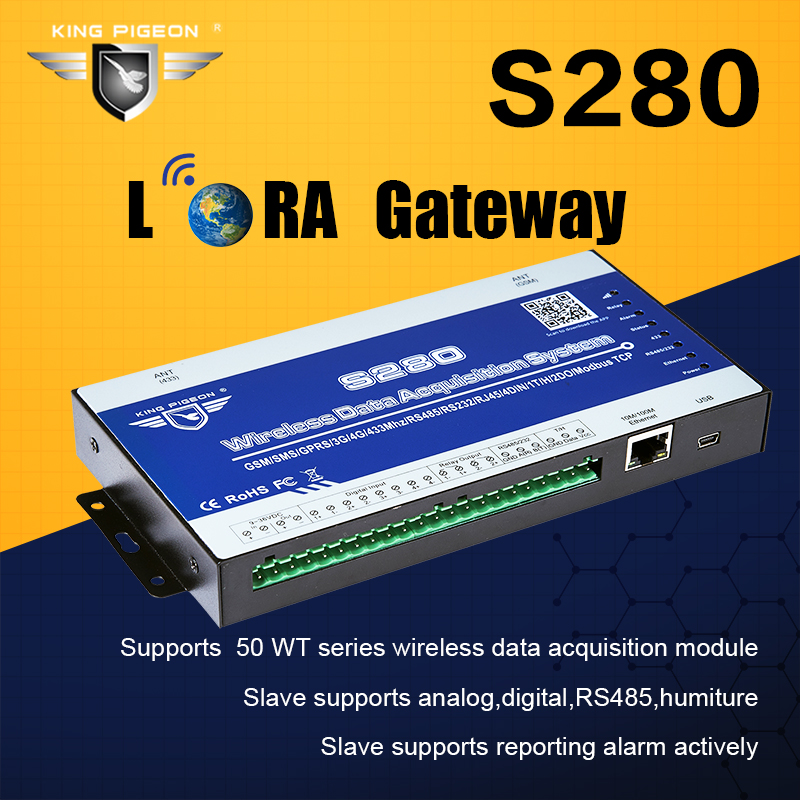

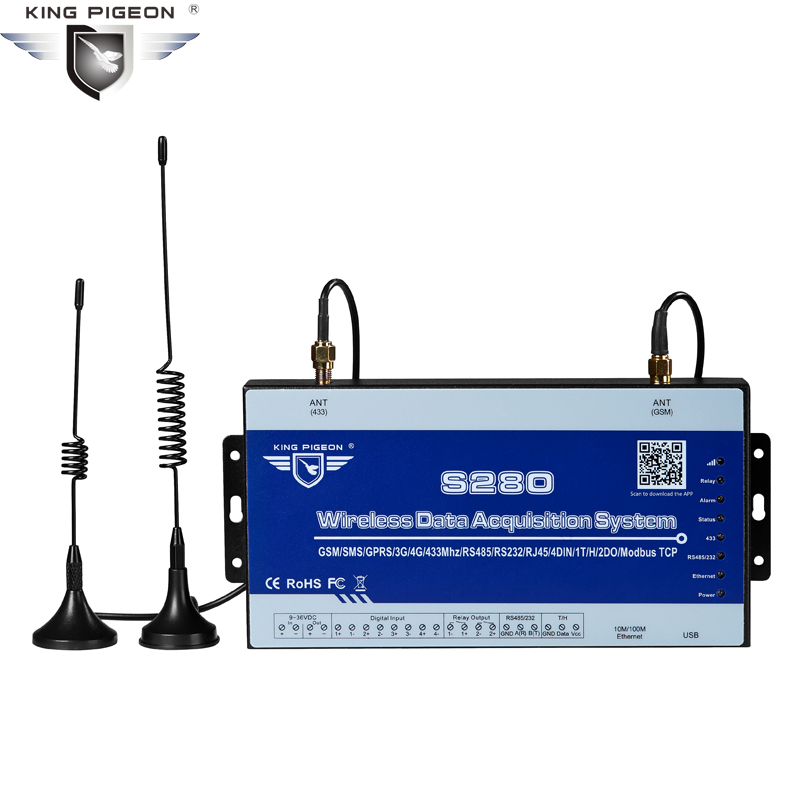

the Wireless GSM 3G RTU(Remote Terminal Unit) S280 is a cost effective remote terminal unit. It inbuilt quad band GSM/GPRS module (or WCDMA/CDMA2000), ISM Band 433Mhz Radio Frequency module, andARMCortex 32 Bit RISC Core. It is a multi Isolation I/O port remote terminal unit and wireless data system.

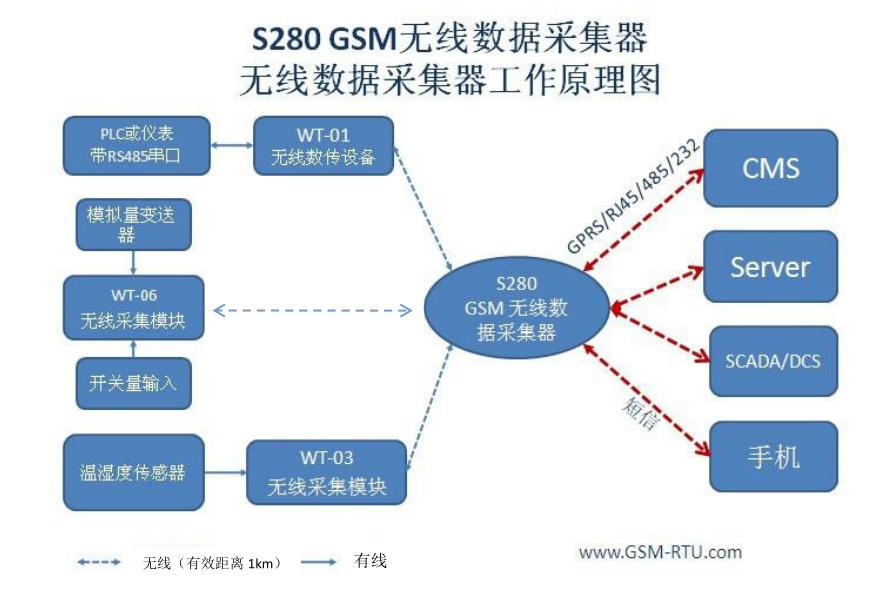

the Wireless GSM 3G RTU can be used as:
- A Wireless Data Acquisition System. Supports monitoring up to 50 wireless data acquisition module
- for maximum 400 endpoints by 433Mhz wireless network, the range covers about 2~5Km, plus WT-02 Wireless repeaters can increase the wireless distance. Each endpoint can be setup threshold value or alarm conditions, once the value exceed threshold value or activated will send out SMS to alert the
Users immediately. - A WirelessGateway. Though the WT-01 wireless data transfer unit, it can convert the meters, transducers, Data Acquisition modules, PLC data via RS485 serial port to 433 MHz wireless network and then transmits it to GSM/SMS/GPRS/3G/Ethernet network. It performs as a wired - wireless - SMS/GPRS/ 3G/Ethernet/RS232/RS485 gateway.
- A SMS Alarm Controller. the IO activations or deactivations can be reported by SMS and optionally confirmed by phone calls. Each input can have its own message texts and the message can be programmed by users.
- A Switch with SMS Remote Control. SMS texts for switching particular terminals on/off or pulse output are configurable.
- A Timer-Switch which can be Activated Automatically. It can be setup when to performs preset logic events, e.g.: timer reports its status, timer switch on/off device or equipments automatically.
- A SMS reporter. the WIRELESS GSM 3G RTU can setup daily automatically report one or more times of its current status to users automatically.
- A Data Logger. the unit can save all of the events or acquisition data in internal memory storage, the historical data can export to CS format via USB port or upload to server by GPRS /3G network according to schedule, no distance limitation.
Mainly Features:
- Inbuilt ARM Cortex-M4 32 Bit RISC Core MCU;
- Quadband 850/900/1800/1900Mhz GSM GPRS Module inside, WCDMA/CDMA2000 Modules are optional.
- Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery;
- Large internal memory to save up to 3500 historical records, USB port for configuration, upgrade firmware and export records;
- Inbuilt industrial ISM Band 433Mhz Radio Frequency Half duplex communication module, distance up to 2~5Km;
- Supports maximum 50 wireless Data Acquisition Modules, will alert users by SMS once the wireless DAM connect failure to ensure the monitoring working properly;
- Supports maximum 400 wireless distributed I/O endpoints;
- 2 solid relay outputs, rated capacity is 5A/30VDC,5A/250VAC;
- 4 digital inputs, compatible to dry contact or wet contact inputs. Logic level: 0~0. 5V or short circuit treated as close, +3~30V or open circuits treated as open;
- 1 temperature & humidity sensor input for monitoring onsite environment, the sensor model is AM2301, Measures temperatures from -40-80C,0.5C accuracy, Relative Humidity from 0-99RH%, accuracy is 3%;
- 1 RS485 serial port (Optional: RS232) for Modbus RTU Slave to SCADA or data transparenrt;.
| Item | Reference Scope |
| DC Power supply | Standard Adapter: DC 12V/1.5A Range 9-36VDC |
| Power consumption | Standby:12V/70mA; Working Max.: 12V/300mA |
| GSM Frequency | 850/900/1800/1900Mhz/ 3G WCDMA/3G CDMA2000 |
| Transmit power | Class 4 (2W) at EGSM 900 and EGSM 850 Class 1 (1W) at GSM 1800 and GSM 1900 |
| GPRS connectivity | GPRS multi-slot class 10 |
GPRS Data Transmission |
GPRS data Downlink Transfer: max. 85.6 kbpsGPRS data Uplink Transfer: max. 42.8 kbps Coding Scheme: CS-1, CS-2, CS-3 and CS-4 |
| TCP/IP stack | TCP,UDP |
| SIM interface | Supporting 3V SIM Card |
| External antenna | SMA Antenna interface, 50 Ohm |
| Program Interfaces | 1 USB Port |
| Protocols | SMS, GPRS UDP,TCP, Modbus RTU Slave, Modbus TCP and more Equipment protocols can be added according to requirements. |
| RS232/485 | 1 RS485(Optional: RS232), Support Transparent Transmission, Definition Protocol and Modbus RTU Slave. |
RF433Mhz |
Inbuilt RF433Mhz Half duplex communication module, wireless Distance is 2~5Km, Max. Receive Sensitive: -148dBm,Max. TransmitPower: +27dBm. |
| Max. Wireless DAM | Supports Max. 50 wireless Data Acquisition Modules |
| Max. Wireless I/O | Supports Max. 400 wireless I/O |
| RJ45 | 1 RJ45, support definition protocol and Modbus TCP protocol. |
| Digital Inputs | 4 Digital input, NC/NO/Level type |
| Temp.&Hum Inputs | Temperature Range: -40C to +80C. Humidity Range: 0~100%RH; |
| Relay Outputs | 2, Rated: 5A/30VDC,5A/250VAC |
| Power Outputs | 1 Port, 9~36VDC output for external device; |
| Memory Capacity | Internal Memory inside, can save the data for 3500events. |
| Backup Battery | 3.7V 1200mAH |
| Temperature range | -10-+70 C |
| Humidity range | Relative humidity 95% (condensation free) |
| Exterior dimension | 168mm*113mm*32.3mm |
| Net Weight | 1000 g |
| Model | Master/ Slave |
Precision | DIN | T/H | DO | Record | Communication |
| S280 | Master | 12bit | 4 | 1 | 2 | 3500 | USB/RS232/RS485 433Hz/GSM/GPRS/3G/RJ45 |
| WT-01 | Slave | Wireless DTU(Data Transfer Unit) with RS485 Port | |||||
| WT-02 | Slave | Wireless Repeater, range 2~5Km | |||||
| WT-03 | Slave | Wireless DAM, supports 1 Temperature&Humidity Sensor. | |||||
| WT-05 | Slave | Wireless DAM, supports 1 Temperature&Humidity Sensor and 2 Analog Input(0~5V) | |||||
| WT-06 | Slave | Wireless DAM, supports 4 Analog input(0~5V) and 4 Digital Inputs | |||||
Notice |
| ||||||
