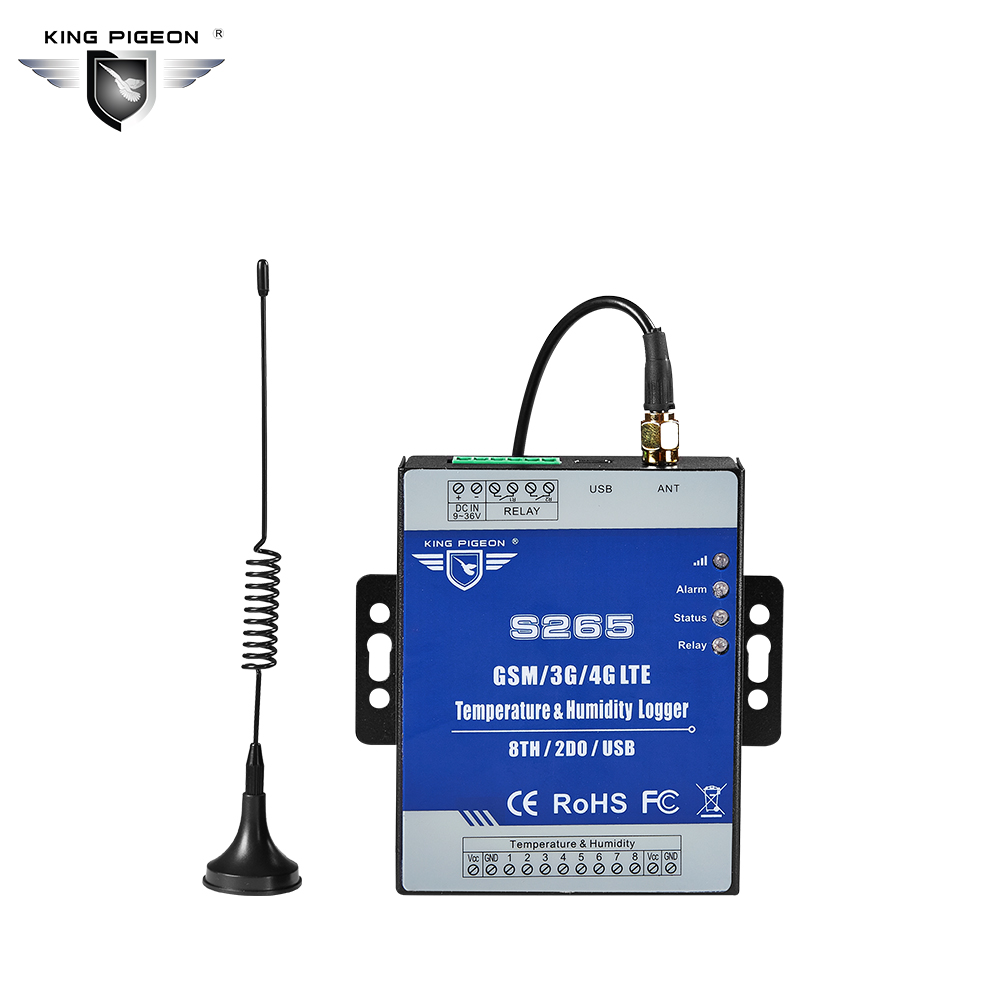

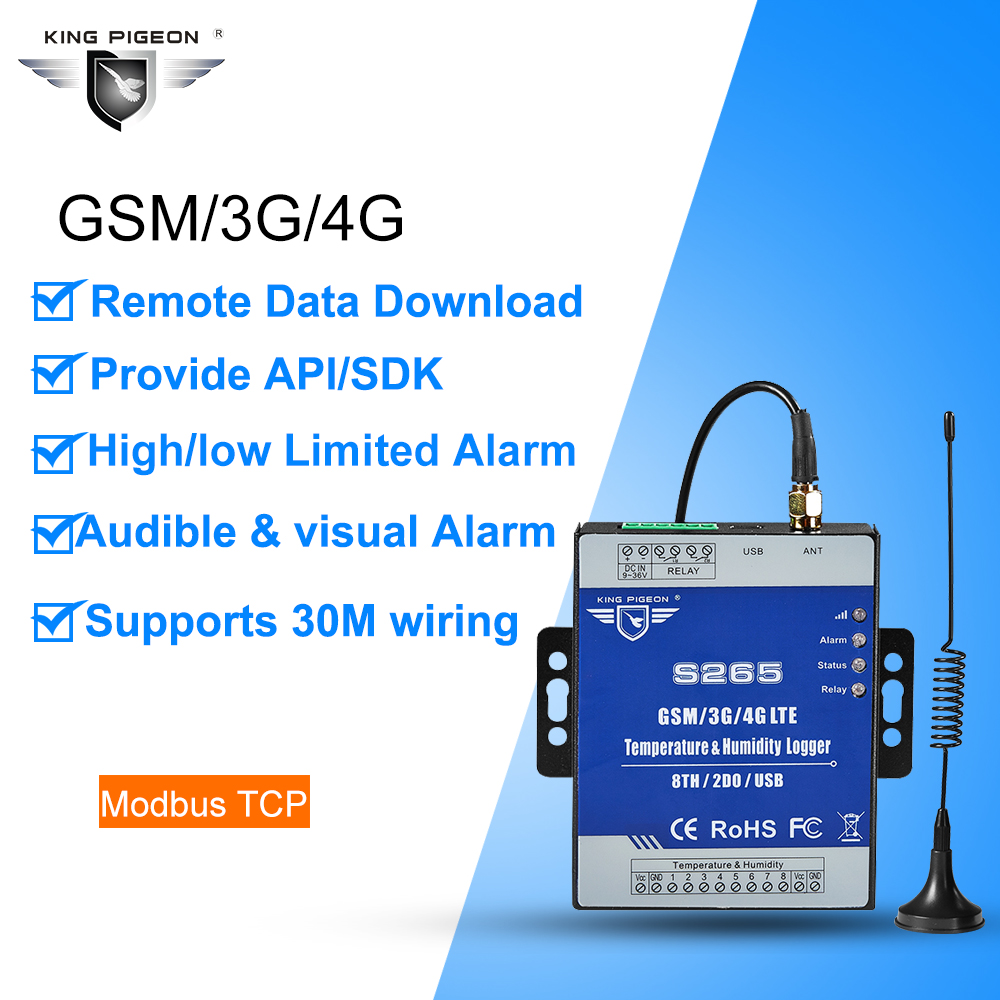

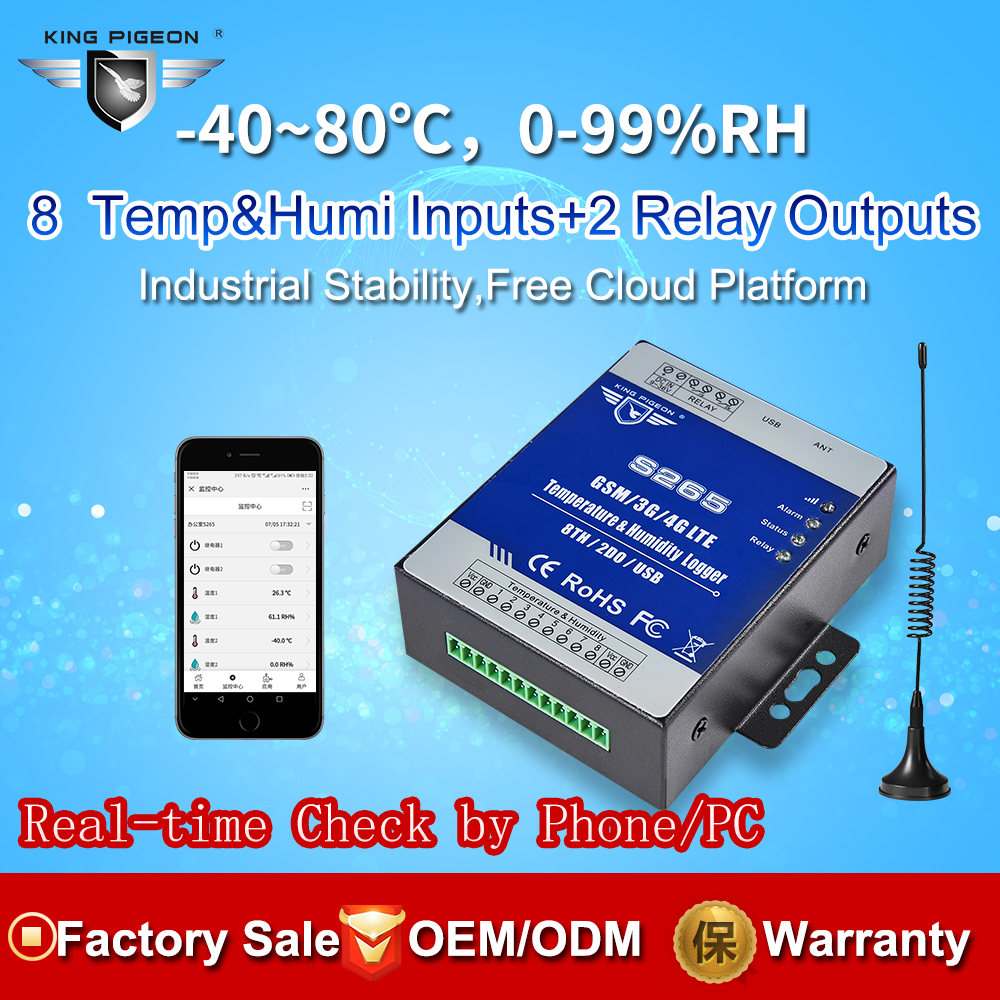

Temperature & Humidity Data Logger Recorder 3G Temperature Remote Alarm Controller
| FOB Price: | 130.00 - 131.00 USD/Bag |
|---|---|
| Supply Ability: | 500 Bag(s) per Week |
| Shipping: | shenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Data LoggerX 1 Antenna X 1 Backup Battery X 1 (Inbuilt) AC/DC adaptor(12V1A) X1 |
Quick Details
- Usage: Personal
- Brand Name: king pigeon
- color: bule
- GSM Frequency: 850/900/1800/1900Mhz
- Power: 9-36VDC
- Model Number: S265
- Memory Capacity: 16MB for 200000 record
- Backup Battery: 3.7V 900mAH
- Exterior Dimension: 70*88*30mm
Specifications
Temperature and Humidity Data Logger Recorder 3G Temperature Remote Alarm Controller
Model List
Model |
GSM/GPRS/3G/4G |
Relay Outputs |
Sensor Type |
Record |
Measuring Range |
S264 |
V |
2 |
Temperature& Humidity Model: AM230x |
200000 |
Temp:-40-80C,Humidity:0-99 RH% |
S265 |
V |
2 |
Temp:-40-80C,Humidity:0-99 RH% | ||
S266 |
V |
2 |
Temperature Model: DS18B20 |
Temp:55C to +125C (67F to +257F) | |
Notice |
1 Default version is GSM; 2 for 3G WCDMA and 4G LTE version, please tell our sales where would you like to use them. | ||||
King Pigeon GSM/3G/4G LTE S265 Data Loggers are special for remote monitoring the onsite temperature and humidity. Not only for monitoring Temperature & Humidity in real-time, also support high/low.SMS/Call alert to max 10 user phone numbers.
the Data Logger with large memory that can save 200000 events. Moreover,It provides 2 Relay outputs for automatically switch on/off devices when Temperature & Humidity exceed high/low value and remote switch on/off Device by SMS or GPRS/3G/4G.
It has been designed as a cost effective, low power, self contained data logger. It has 8 temperature & Humidity sensor inputs with embedded GSM/GPRS/3G/4G module to provide an all in one instrument for data logging, Remote data acquisition, alarm and control.
Advantages
Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;
3G UMTS/HSDPA/4G Modules are optional.;
32 bit MCU, reliable performance with in-built watchdog;
Support temperature & humidity monitoring remotely in real-time;
Support 8 channel temperature&humidity input interface(AM230x series T/H sensors);
Support 2 relay outputs,7A@125VAC 5A@125VAC 20A@14VDC;
High/Low Alert via SMS/Call/GPRS;
Supports 1 DNS or IP address as server;
Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;
Automatically resend the data while communication failure, GPRS failure will alert by SMS text;
Supports remotely restart the device, and configure it by SMS commands remotely;
up to 10 user's phone number to receive alarm and daily report SMS/Call;
Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;
in-built rechargeable battery, power lost/recover alarm, low maintenance, 247 operation;
in-built internal clock, support 11 actions on schedule at pre-set time;
Internal 16MB memory, logs more than 200000 records;
Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;
Support Android/IOS APP, easily & friendly for use/config.
Support remote upgrade the firmware via PC.
Can be operated from anywhere, no distance limitation;
Secure - Using caller ID and password for identification, unknown callers are ignored;
Item |
Reference Scope |
DC Power Supply |
Standard ADapter: DC 12V/1A Range 9~36VDC |
Power COnsumption |
Standby:12V/70mA; WorkingMax.:12V/300mA |
GSM/3G Frequency |
2G: 850/900/1800/1900Mhz 3G version Optional: (UMTS/HSDPA) W:900/2100@UMTS 900/1800@GSM; C:850/1900@UMTS 850/900/1800/1900@GSM; T:850/2100@UMTS 850/900/1800/1900@GSM; 4G LTE |
SIM INterface |
Supporting 3V SIM Card |
External ANtenna |
SMA Antenna interface, 50 Ohm |
Serial Interfaces |
1 USB Port |
Temp.&Hum Inputs |
8 channel (AM230x Temperature&Humidity input) |
Relay Outputs |
2 Relay Outputs 7A@125VAC 5A@125VAC 20A@14VDC |
Memory Capacity |
16MB for 200000 record. |
Backup Battery |
3.7V 900mAH |
Exterior DImension |
70*88*30mm |
Installation |
35mm standard DIN rail(Optional) Wall mount (Default) |
Net Weight |
500g |
Packing List
Data LoggerX 1
Antenna X 1
Backup Battery X 1 (Inbuilt)
AC/DC adaptor(12V1A) X1
