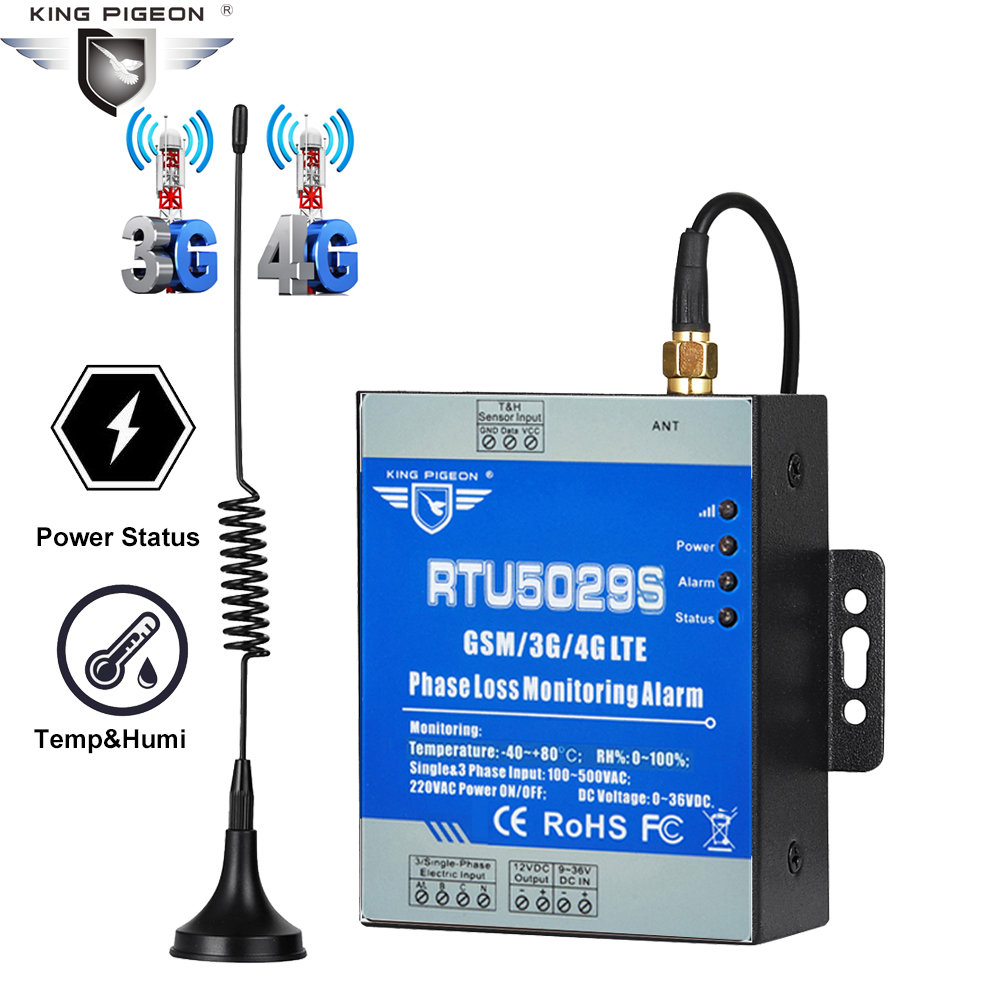

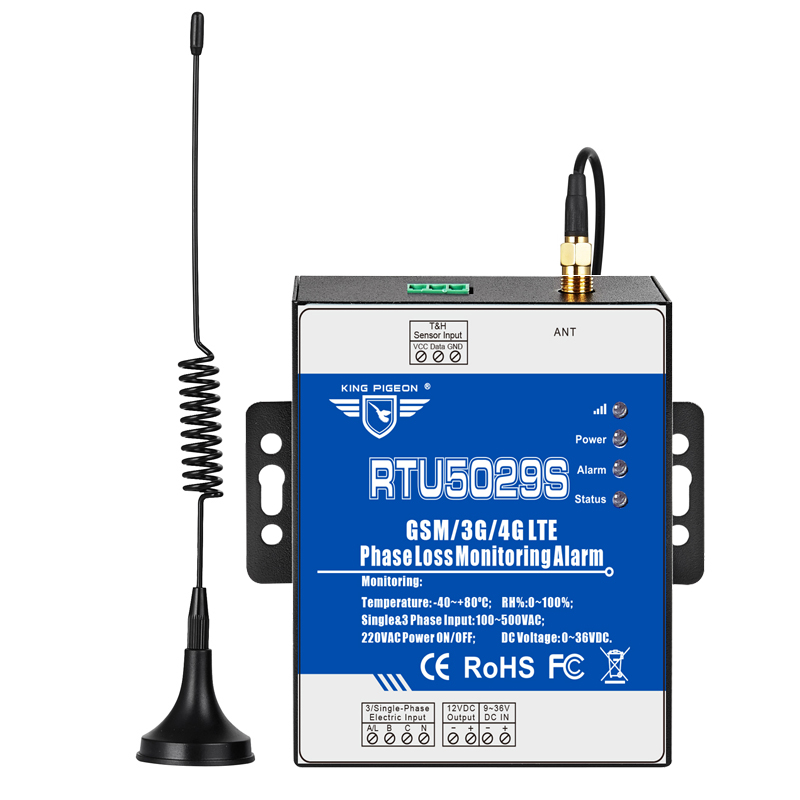

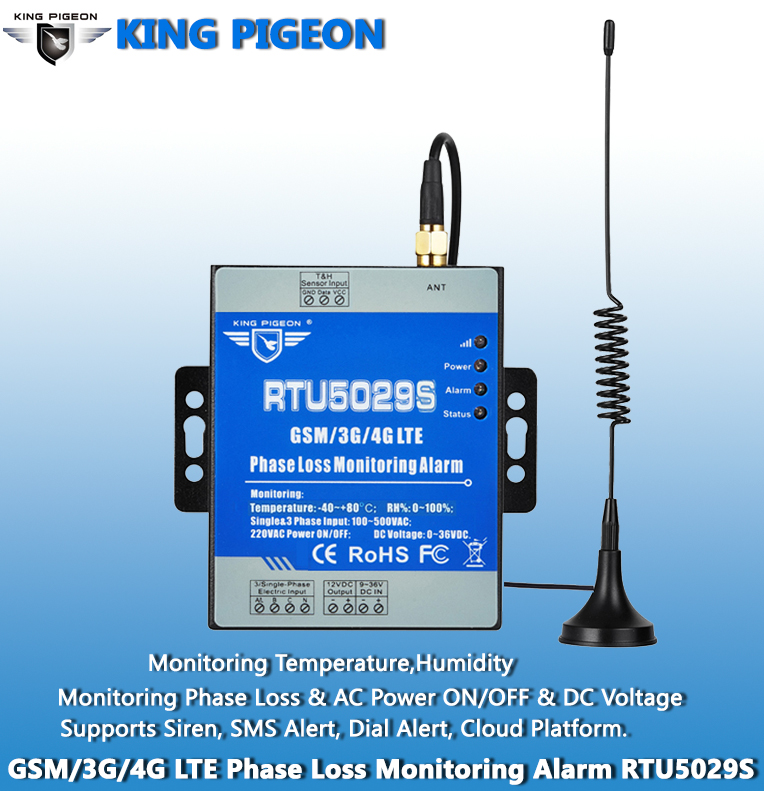

GSM 3 Phase Power Loss Alarm Power Failure Voltage Temperature Humidity Status Monitoring RTU5029S
| FOB Price: | 94.00 - 95.00 USD/Bag |
|---|---|
| Supply Ability: | 500 Bag(s) per Week |
| Shipping: | shenzhen |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Phase Loss Monitoring Alarm X 1 GSM/3G/4G Antenna X 1 Backup Battery X 1 (Inbuilt) AC/DC adaptor(12V1A) X1 User Manual X 1 |
Quick Details
- Usage: Personal
- Brand Name: king pigeon
- color: bule
- GSM Frequency: 850/900/1800/1900Mhz
- Power: 9-36VDC
- Model Number: RTU5029S
- Power Status: 3-phase or single-phase
- Backup Battery: 900mAH, last 8hours
- Exterior dimension: L70mm*W88mm*H30mm
Specifications
GSM 3 Phase Power Loss Alarm Power Failure Voltage Temperature Humidity Status Monitoring RTU5029S
Model: RTU5029SName: GSM 3G 4G LTE Phase Loss Monitoring Alarm
Inquiry Onsite Environment AC Power with a FREE Call from Your Mobile Phone!
Interval Report Onsite Environment Power Status to Your Phone by SMS!
Remote Reset, Remote Reboot, Automatic Reboot Periodicity!
High-Low Temperature Humidity Voltage or Power Failur with SMS Alert!
Support Modbus TCP and Modbus RTU over TCP for Cloud Monitoring!
the GSM 3G 4G LTE Phase Loss Monitoring Alarm is special for remotely monitoring onsite temperature, humidity,AC power, power status through wireless GSM/3G/4G Network. When the 3/Single phase power failure, power voltage or temperature, humidity exceed high threshold or low threshold value, will send SMS alert to upto 10 preset mobile phone immediately.
Just dial from Authorized User number, the GSM 3G 4G LTE Phase Loss Monitoring Alarm will reject at the first "Ring", no communication cost, and then return the current 3/Single phase status,power status or voltage. Moreover, it can report onsite environment interval or daily.
the GSM 3G 4G LTE Phase Loss Monitoring Alarm can be used for solar power monitoring, DC power voltage monitoring, AC power monitoring, Chicken House, Pig Farm, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory, Library and anywhere that need monitoring 3/Single phase AC power failure and temperature or control temperature in expected range.
Mainly Features of 4G Phase Loss Monitoring Alarm:
1. Can be operated from anywhere, no distance limitation;
2. No call charges for inquiry. the GSM 3G 4G LTE Phase Loss Monitoring rejects the call from authorized number then return onsite temperature, humidity,AC power status and power voltage on the first 'ring';
3. Multiple applications. (3/Single phase status, power status, solar panel, DC voltage,temperature, humidity);
4. up to 10 authorized phone numbers, 5 can be used to receive SMS,and 5 can be used to call and SMS while alarm occurrence;
5. 1 input for Temperature & Humidity,AC power status monitoring;
6. External AC Power status monitoring, AC ON/off will send SMS to authorized phone numbers;
7. Inbuilt MCU monitoring the DC input Voltage value, measure range is 0-36VDC, no need additional sensor to save cost;
8. Timer Report-Can setup every x hours automatically send its status/Value to the authorized numbers;
9. Support remotely read historic data via SMS;
10. Support Modbus TCP and Modbus RTU over TCP protocol for cloud monitoring;
11. Rechargeable Backup Battery inside can last 8hours;
12. Secure - Using caller ID and password for identification, unknown callers are ignored;
13. Programmable by SMS Commands or APPs with password protection;
14. Based on GSM/3G/4G Network, applied to many applications.
15. Remote Reset via SMS, Remote Reboot via SMS, Automatic Reboot Periodicity.
Specifications of the 4G Phase Power Loss Monitoring Alarm:
| Parameter item | Reference scope |
| DC Power supply | 9~36VDC, recommend 12V DC 1A |
| Power consumption | 12V input Max. 50mA/Average 30mA |
| Frequency range | 2G :850/900/1800/1900Mhz 3G :W :900/2100Mhz C :850/1900Mhz T :850/2100Mhz 4G LTE |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 SMA Antenna interface |
| Protocol |
Mobus TCP and Modbus RTU over TCP |
| Temp&Humi input | AM230X:Temperature from -40 to 80C (0.5C accuracy),Relative Humidity from 0-99RH%, accuracy is 3%. |
| Power Status | 3-phase or single-phase |
| Alert no. | 10 authorized phone numbers |
| Backup Battery | 900mAH, last 8hours |
| Exterior dimension | L70mm*W88mm*H30mm |
| Net Weight | 300 g |
Standard Package list of 4G Phase Loss Monitoring Alarm:
Phase Loss Monitoring Alarm X 1GSM/3G/4G Antenna X 1 Backup Battery X 1 (Inbuilt) AC/DC adaptor(12V1A) X1 User Manual X 1 Note: the package does not include any SIM card. |
