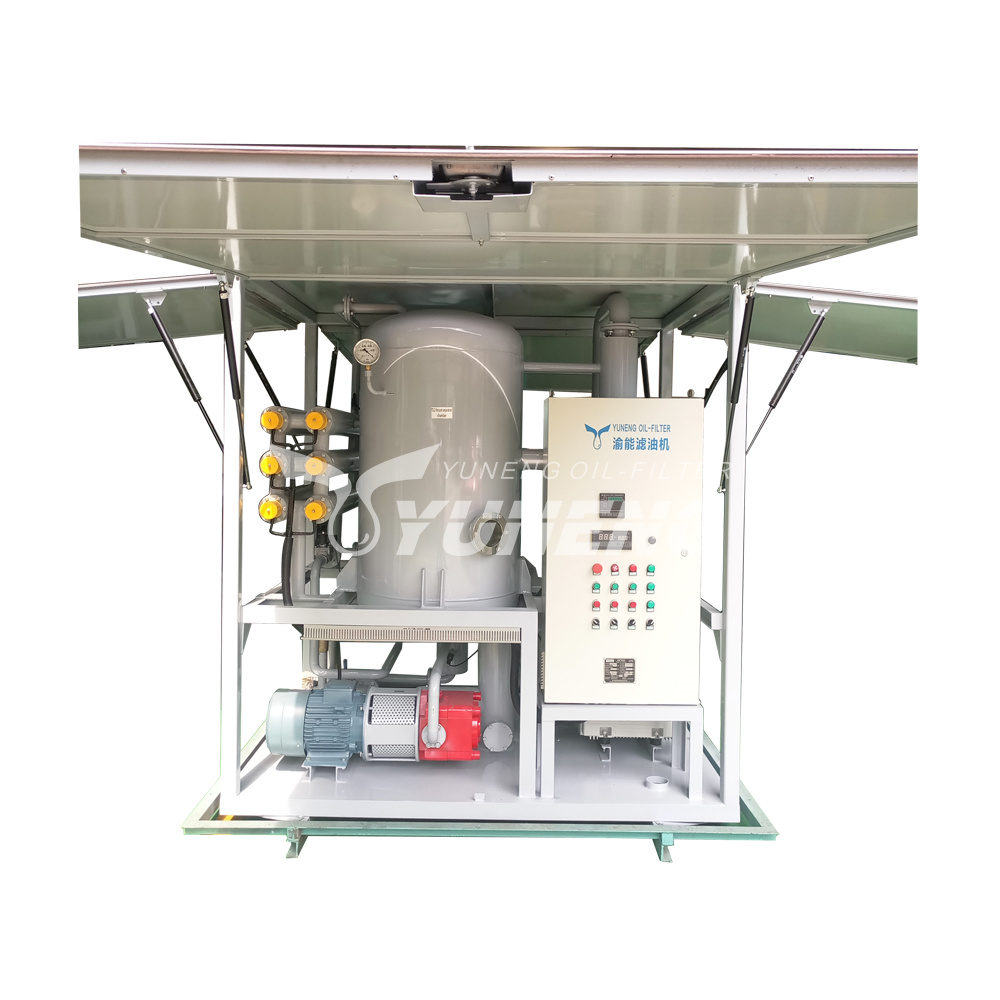

High Working Vacuum Transformer Oil Purification Equipment

FOB Price:	12000.00 - 50000.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	Sea Transportation/ Air Transportation/ Automobile Transportation
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Iron sheet case or seaworthy package.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO
Weight: 500Kg~4000Kg
Brand Name: Yuneng
Condition: New
Dimension(L*W*H): As per capacity
Power(W): 16KW~200KW
Voltage: 380V or as per request
Usage: Transformer Oil
Model Number: ZJA1.8KY,ZJA3KY,ZJA3KY,ZJA9KY,ZJA12KY,ZJA18KY
Working Pressure: Less than 0.5MPa
Flow: 1800L/h~18000L/h
Function: High Working Vacuum Transformer Oil Purification Equipment
Raw material: Carbon Steel
Nominal flow capacity: 30L/min~300L/min
Heating method: Indirect heating
Oil pump: Centrifugal oil pump, better than gear pump
Condenser: Each for the vacuum pump and roots pump
Filter: High quality to 0.5 micron
Appearance: Roots style
Limit vacuity: Less than 5Pa
Working vacuity: Less than 80Pa

Specifications

High Working Vacuum Transformer Oil Purification Equipment

by absorbing the advanced technology of similar products at home and abroad, our High Working Vacuum Transformer Oil Purification Equipment has excellent performance both in design and cost. the oil treatment process and overall performance are in the leading position in China with its advantages of high working vacuum, fast oil filtration speed and oil quality protection. It is mainly used for purify the oil used in 500KV electricity. this series may include two types, fixed close type and mobile trailer mounted type, suitable for oil treatment, transformer vacuum oilling and hot oil circulation draying during big transformers installation and maintenance.

High Working Vacuum Transformer Oil Purification Equipment

1. Used in the electric power system (66kV~500KV).

2. Features include high working vacuum, fast oil filtering and sound oil protection.

3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.

Item	Name of Parameter		Unit	Model
				ZJA1.8KY (1800L/h)	ZJA3KY (3000L/h)	ZJA6KY (6000L/h)	ZJA9KY (9000L/h)	ZJA12KY (12000L/h)	ZJA18KY (18000L/h)
Technical parameter of the equipment	Nominal flow capacity		L/min	30	50	100	150	200	300
	Limit vacuity		PA	5
	Working vacuity		PA	80
	Working pressure		MPa	0.5
	Working temperature of oil			45~65
	Working power			(380V-50Hz) 3Phase 4 Wires, or as per buyer's option
	Total electric power		KW	16	36	70	100	150	200
	Pipe dimeter of oil outlet/inlet		DN	20/20	25/25	32/32	40/40	50/50	65/65
	Size	Length	cm	160	180	220	250	280	345
		Width	cm	125	145	160	195	215	260
		Height	cm	200	220	245	270	300	300
	Weight		Kg	500	700	1460	1800	2400	4000
Oil treatment index	Oil breakdown voltage		KV	70 (Spherical Electrodes)
	Water content		PPM	5
	Air content		%	0.3
	Filtering accuracy		m	1
