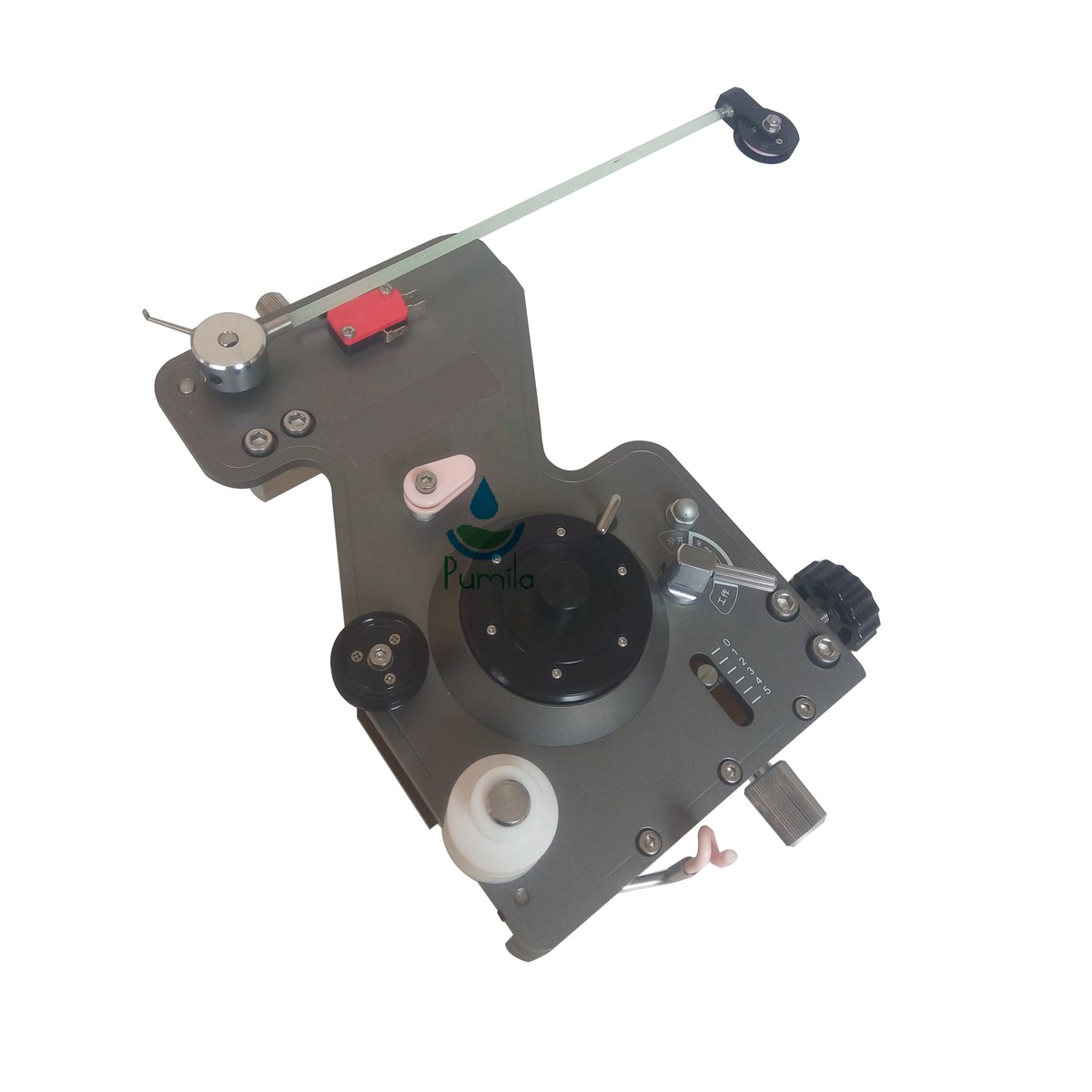

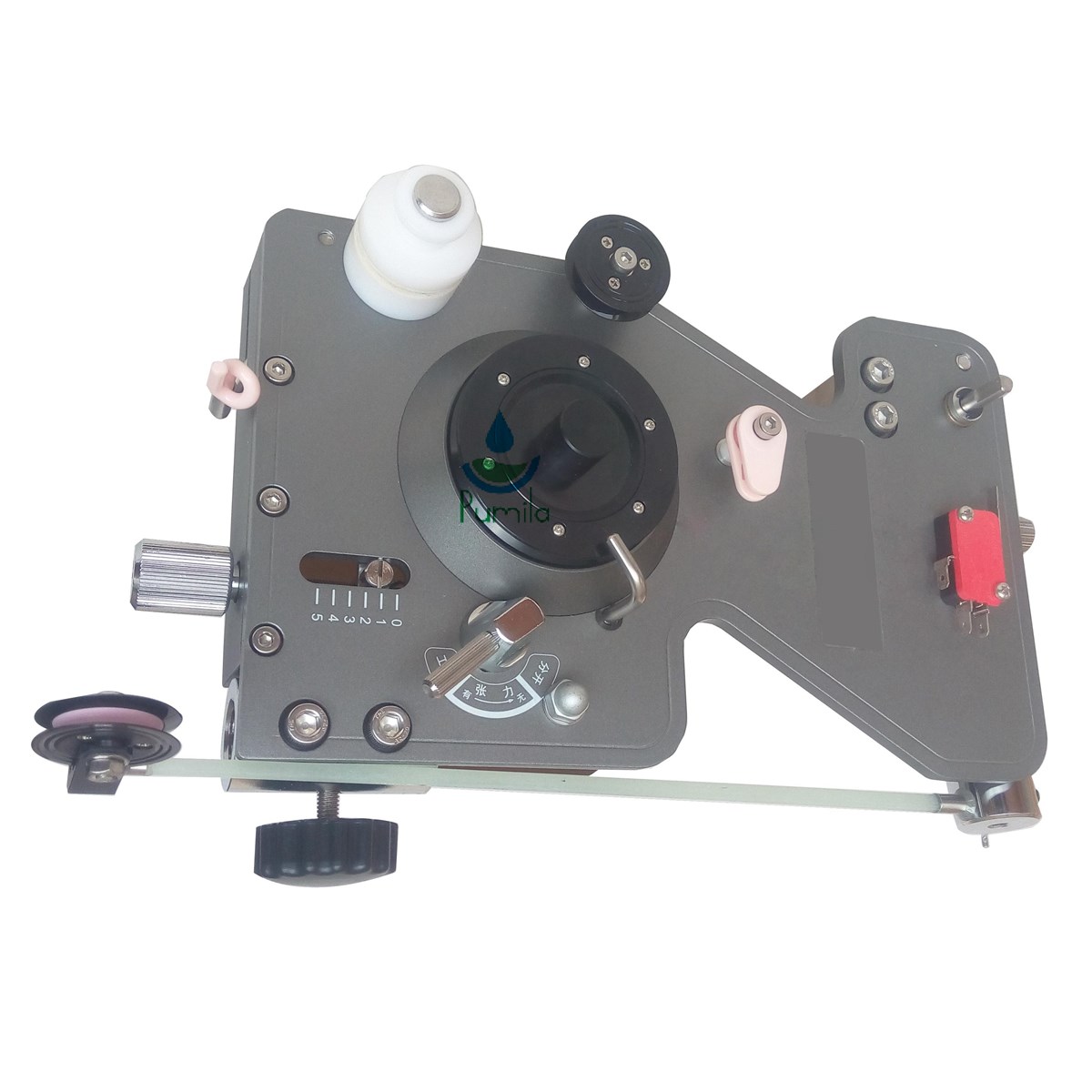

TCL Series Big Mechanical Tensioner Coil Wire Winding Tensioner3, Color Black, Specification 140mm*140mm*45mm
| FOB Price: | 600.00 - 720.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Set(s) per Month |
| Shipping: | port:shenzhen |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton with Foam |
Quick Details
- Brand Name: Pumila
- Size: 140mm*140mm*45mm
- Type: coil winding tension
- Material: metal
- Color: Black
- Model Number: TCL
- Condition: New
- Application: Winding machine
- Feature: Using Permanent Magnet
Specifications
TCL Series Big Mechanical Tensioner Coil Wire Winding Tensioner
| Model | Applied wire diameter(mm) | Tension scope(g) |
| TCL | 0.20-0.60 | 200g-2000g |
| TCLL | 0.50-1.20 | 1000g-5000g |
| TC3L | 0.70-2.00 | 2000g-10000g |
Product feature:
1. Tension test condition: Winding speed 5m/s, the tension range is 200-10000g.
2. TCL series thensioners are simple to be adjusted. Tension can be adujsted and pre-set to the require value according to the application so as to achieve appropriate winding condition,and to ensure the conformity of each coils technical parameters.3. TCL series is the key device controlling the changable tension during winding, make the copper suitable and controble tension. so the the wired coils are more flat and, makiing the technical standarded reached.
Note
1. When the working angle and the rest angle are the same, or when the tension rod fall down to 90 degree angle, please reset the tension to avoid the wear and tear and reducing the life time.
2. When replace the wire during normal working status of tensioner, please check whether there is wire scrap. Make sure to clean them off otherwise it leead to inregular change of tension when starting again the tensioner.
