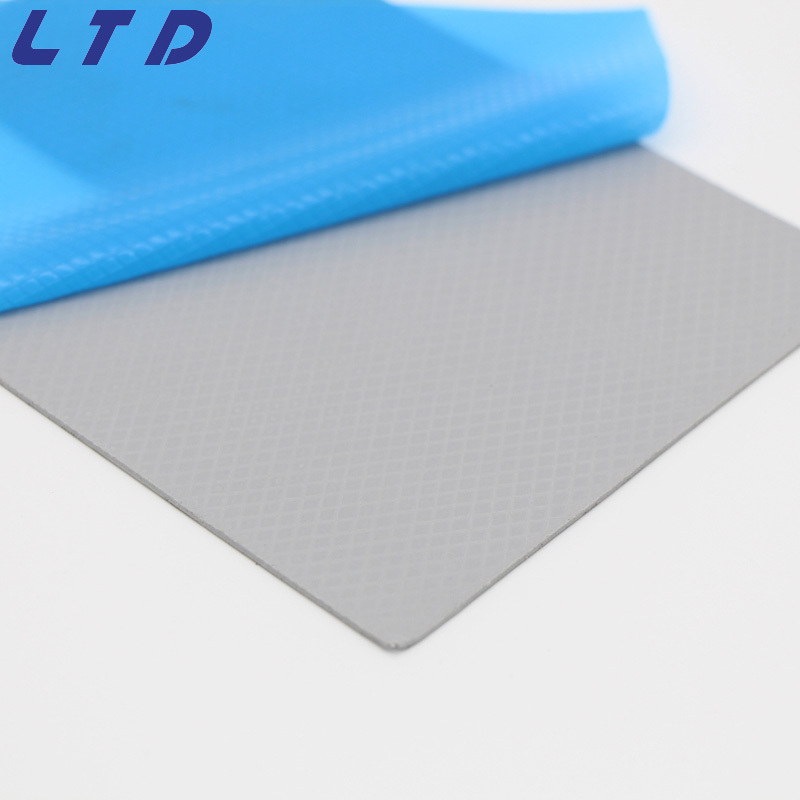

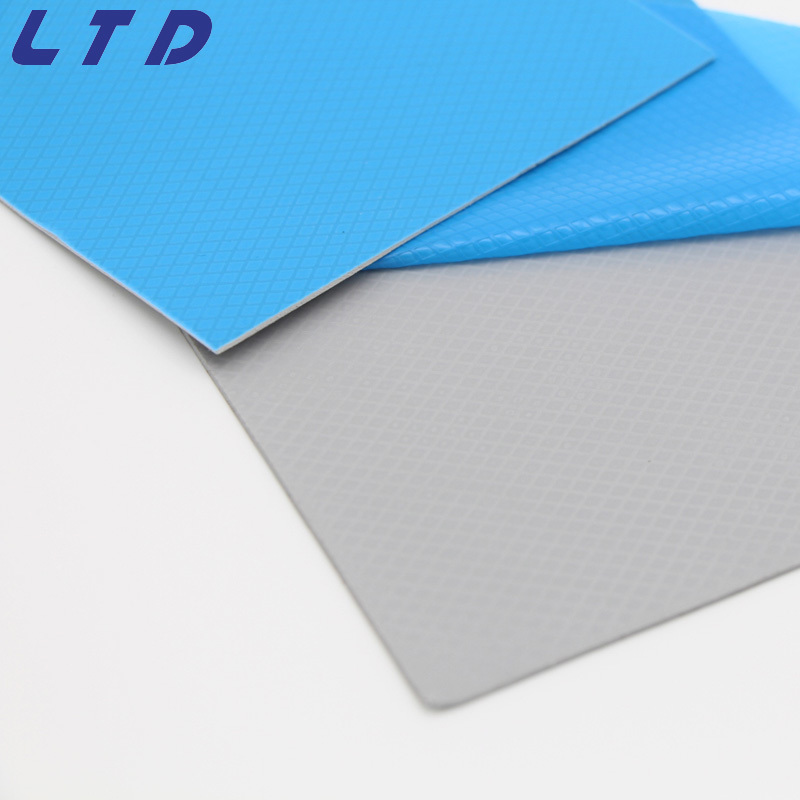

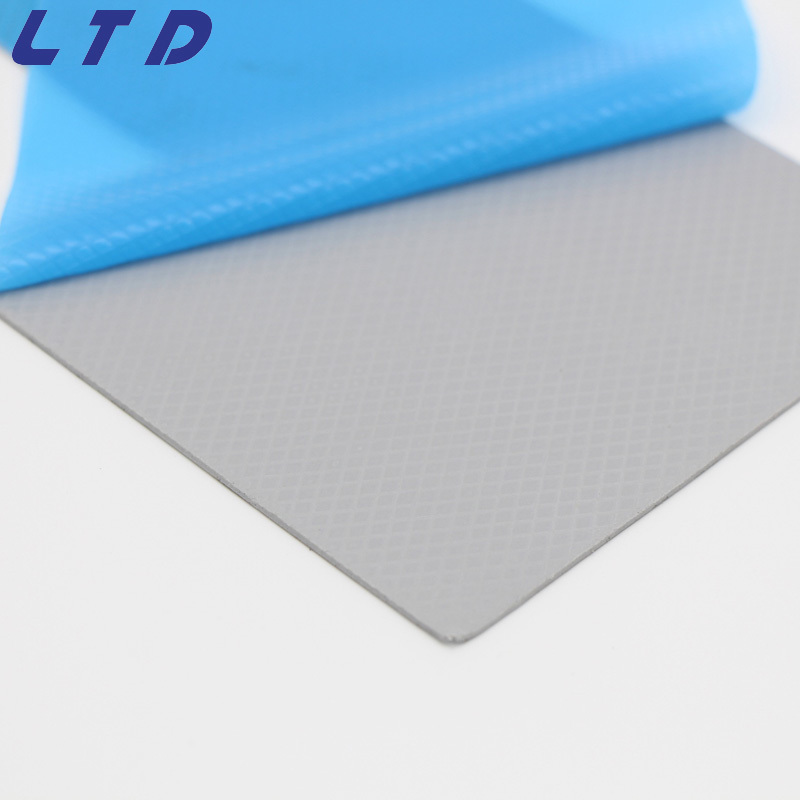

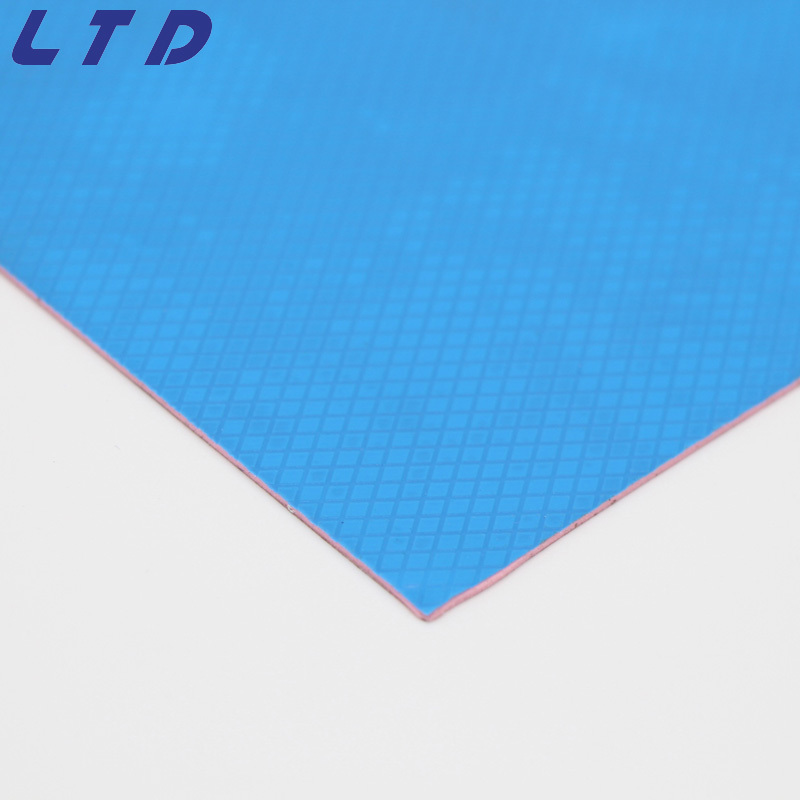

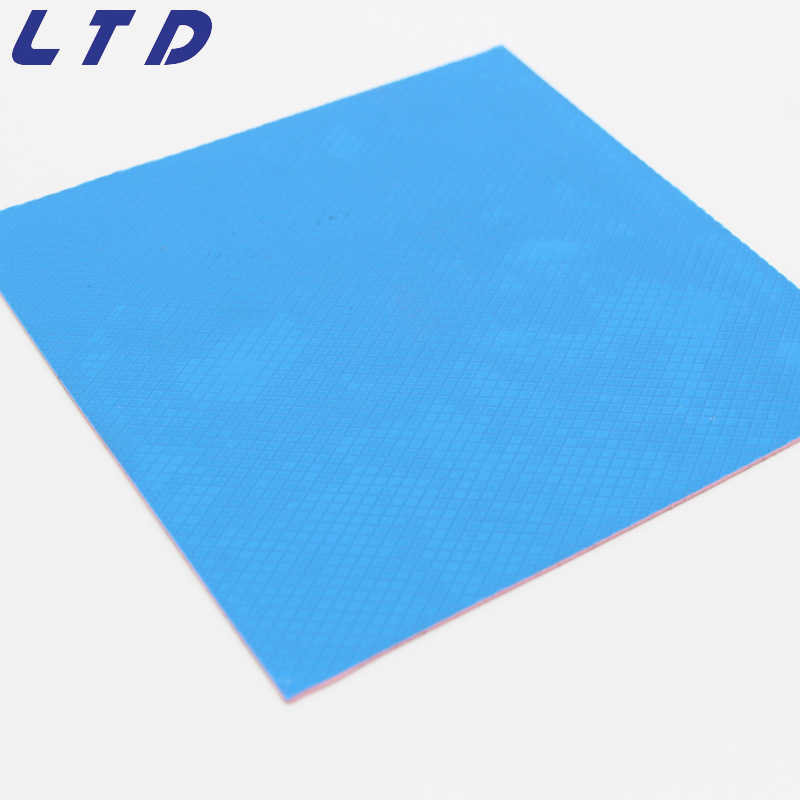

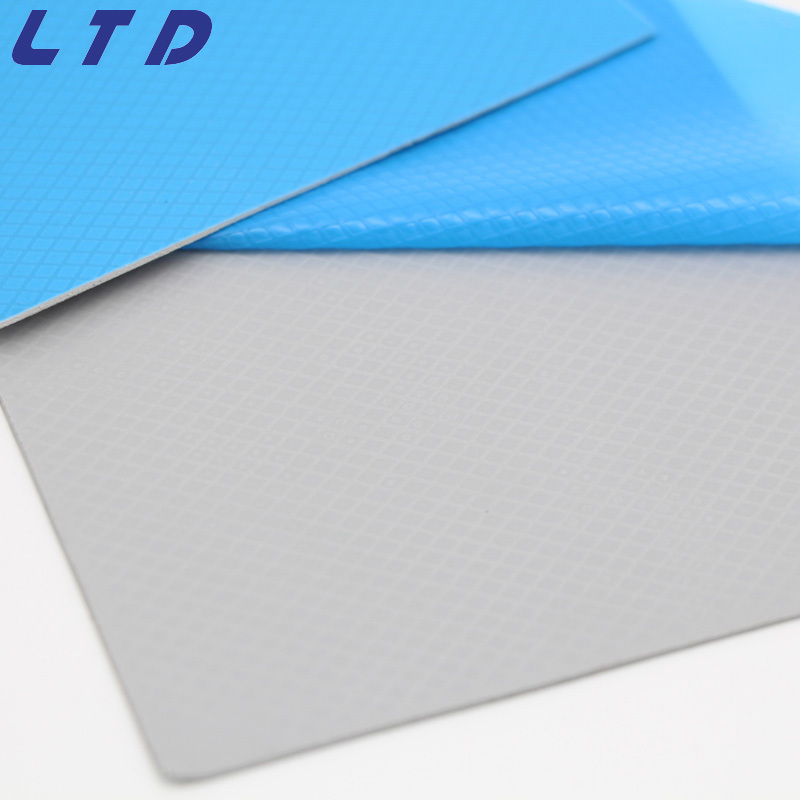

High Thermal Performance Thermal Silicone Rubber Pad Natural Viscosity
| FOB Price: | 0.01 - 0.20 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Week |
| Shipping: | FOB Shenzhen . DHL UPS EMS FEDEX |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard carton package |
Quick Details
- Rated Voltage: 7KV/mm
- Application: High Voltage
- Material: Composite Polymer
- Type: Insulation Sheet
- Brand Name: LTD
- Tensile Strength: 0.2Mpa
- Model Number: LC500-800
Specifications
THERMAL CONDUCTIVITY THEORY
Ultra-High Thermal Conductive Silicon Pad
Ultra-high thermal conductive silicone sheet is a high-performance heat conducting interface material made of 100% imported materials for fillingthe air gaps between the heating device and the heat sink or metal base.Its softness and elasticity characteristics enable it to be used for coveringa very uneven surface. Heat is transferred from the separation device or the entire PCB to the metal casing or diffuser to improve heat dissipationand improve the efficiency of heating electronic components and service
Features & Benefits:
High thermal conductivity, low thermal resistance
Soft and flexible, reducing the interface thermal resistance
High electrical insulation to protect sensitive electronic devices
Natural sticky, easy assembly, re-workable
Meet ROHS and UL environmental requirements
Typical Applications:
CPU, memory module
Communication hardware equipment
High-speed hard disk drive
Automotive engine control module
Microprocessors, memory chips and graphics processors
Military electronic equipment
Physical Properties:
Test Item |
TEst Method |
Unit |
LC500 |
LC600 |
LC700 |
LC800 |
Color |
Visual |
- |
Gray |
Gray |
Gray |
Gray |
THickness |
ASTM D374 |
mm |
0.5~5 |
0.5~5 |
1.0~5 |
1.0~5 |
HArdness |
ASTM D2240 |
Shore00 |
60~80 |
60~80 |
60~80 |
60~80 |
Specific Gravity |
ASTM D792 |
g/cm3 |
3.32 |
3.43 |
3.5 |
3.55 |
TEnsile Strength |
ASTM D412 |
Mpa |
0.2 |
0.22 |
0.15 |
0.15 |
Elongation |
ASTM D412 |
% |
60 |
16 |
24 |
24 |
TEar Strength |
GBT 529-2008 |
KN/m |
0.5 |
0.5 |
0.5 |
0.5 |
BReakdown Voltage |
ASTM D149 |
KV/mm |
7 |
7 |
7 |
7 |
VOlume Resistivity |
ASTM D257 |
cm |
21013 |
21013 |
31011 |
31011 |
Continuous Use Temp |
EN344 |
-40~200 |
-40~200 |
-40~200 |
-40~200 | |
Flame Rating |
UL94 |
- |
V-0 |
V-0 |
V-0 |
V-0 |
WEight Loss |
@150240H |
% |
0.5 |
0.5 |
0.5 |
0.5 |
Dielectric Constant |
ASTM D150 |
@1MHz |
7.92 |
7.47 |
8.0 |
8.0 |
Thermal Conductivity |
ISO 22007-2 |
W/mK |
5.0 |
6.0 |
7.0 |
8.0 |
Standard size:200mm400mm, 300mm400mm; Customized size available;
Coated with fiberglass/one side or double side adhesive/aluminum foil available.
