Fully Enclosed Trailer Movable Transformer Oil Processing & Filtration Machine, Rainproof, Easy to Transport

FOB Price: 1.00 - 5.00 USD/Acre
Supply Ability: 1 Acre(s) per Day
Shipping: by sea/air
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Chongqing in China
Packaging Details: WOODEN CASE

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE
  • Weight: 500KG
  • Brand Name: HOPU
  • Condition: New
  • Dimension(L*W*H): 1.5X1.4X1.7
  • Power(W): 30
  • Voltage: 380
  • Usage: Transformer Oil
  • Model Number: zyd
  • Working Pressure: 0.03
  • Flow: 6000LPH
  • color: blue,yellow,red

Specifications

Application:
Oil Flow Variable from 0~9000Liters/Hour, High Vacuum Transformer Oil Filtration Machine ZYD-150 Is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. the machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It Can remove the free and dissolved Water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. the dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.

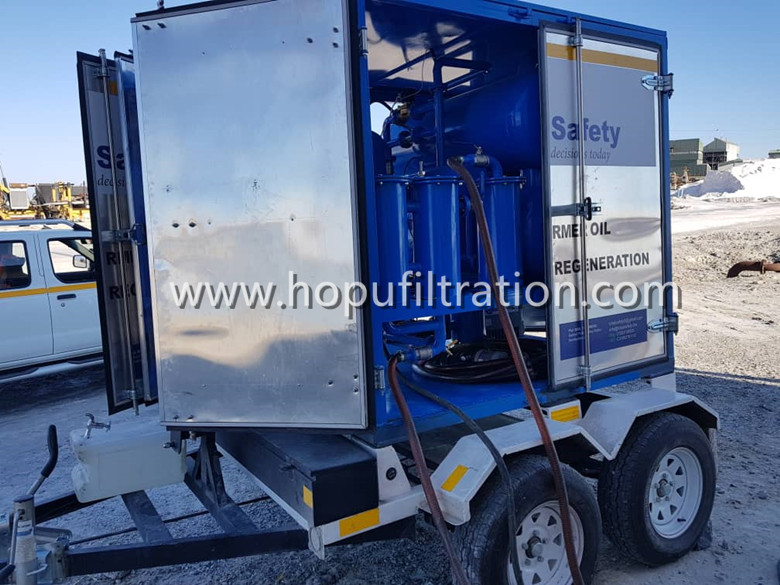

Fully enclosed trailer movable transformer oil processing and filtration machinerainproof easy to transport
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.

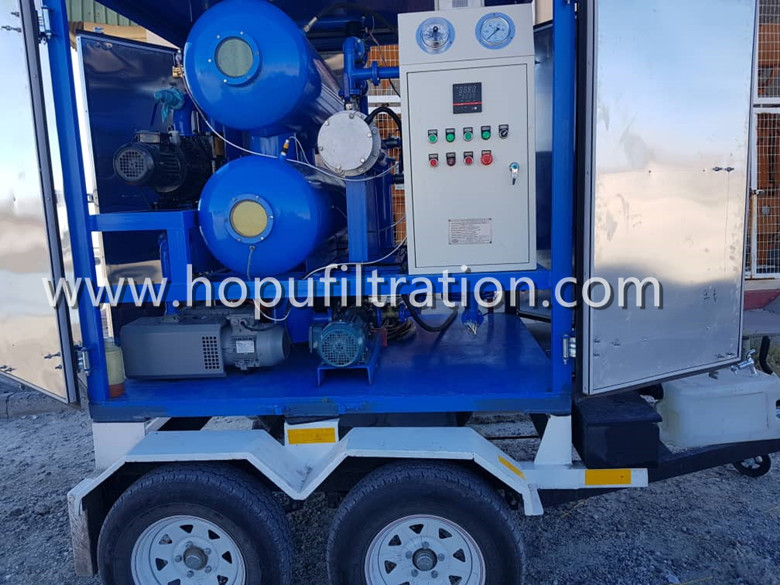

Fully enclosed trailer movable transformer oil processing and filtration machinerainproof easy to transport
Advantage:
HOPU Oil Flow Variable from 0~9000Liters/Hour, High Vacuum Transformer Oil Filtration Machine ZYD-150, it can be used for every different model from 0~9000Liters/Hour. Oil flow rate changeable easily. It can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. as the bridge-type vacuum linking system that also can be an independent vacuum power supply, which can vacuuming and oil injecting for electric insulation devices.

Fully enclosed trailer movable transformer oil processing and filtration machinerainproof easy to transportTechnical Parameters:

Parameters Unit ZYD-30 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow Rate L/H 1800 3000 6000 9000 12000 15000 18000
Working Vacuum Mpa -0.08 -0.099
Working Pressure Mpa 0.3
Temp Range 20 80
Power Supply 380V, 50Hz, 3Phase( As per required)
Working Noise Db 60 - 80 (Depended on the configuation)
Heating Power KW 30 60 90 135 150 165 180
Total Power KW 35 67.5 101.5 149 164 198
Inlet/Outlet Diam MM 25 32 42 50 50 60 60
Weight KG 450 550 750 950 1200 1850 2000
Size Length MM 1450 1450 1750 1850 1950 2050 2150
Width MM 950 1000 1250 1300 1350 1400 1450
Height MM 1700 1750 1950 2000 2050 2100 2150
after TREATMENT
Dielectric Strength KV 75-85
Water Content PPM 3
Gas Content % 0.1
Particle Size 3
Cleanliness NAS 1638 Grade 5
