1.2 w/Mk Thermal Pad Single or Double Sided Adhesive Tape

FOB Price: 0.01 - 0.20 USD/Piece
Supply Ability: 500,000 Piece(s) per Week
Shipping: FOB Shenzhen . DHL UPS EMS FEDEX
Payment Terms: T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • Rated Voltage: KV/mm
  • Application: High Voltage
  • Material: Composite Polymer
  • Type: Insulation Sheet
  • Brand Name: LTD
  • Tensile Strength: MPa
  • Model Number: LC120

Specifications

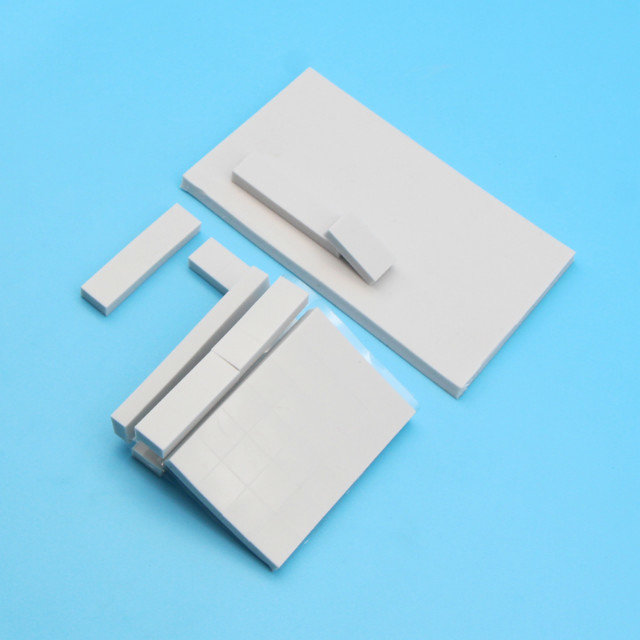

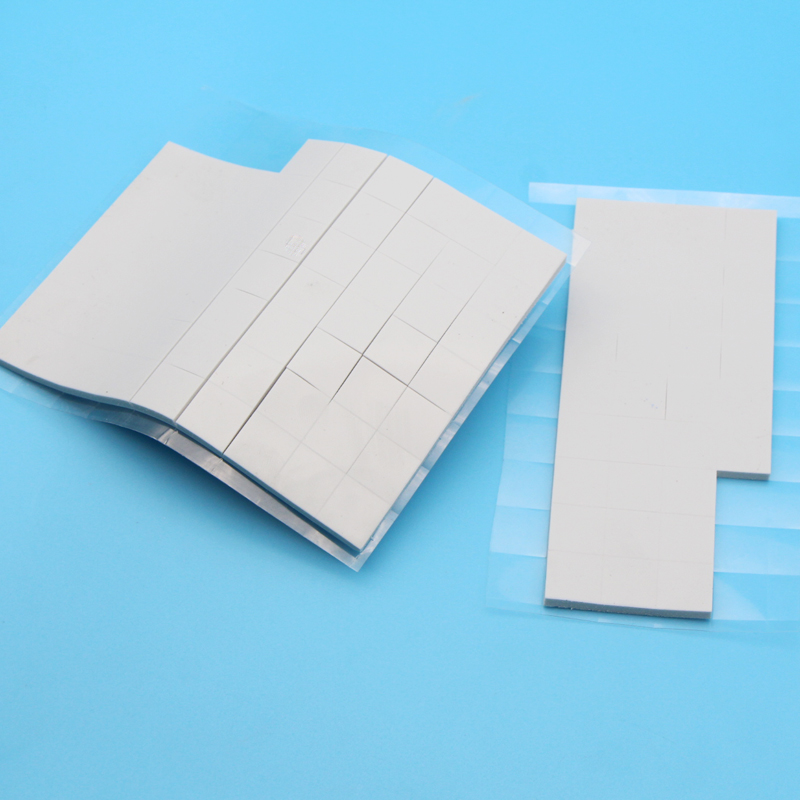

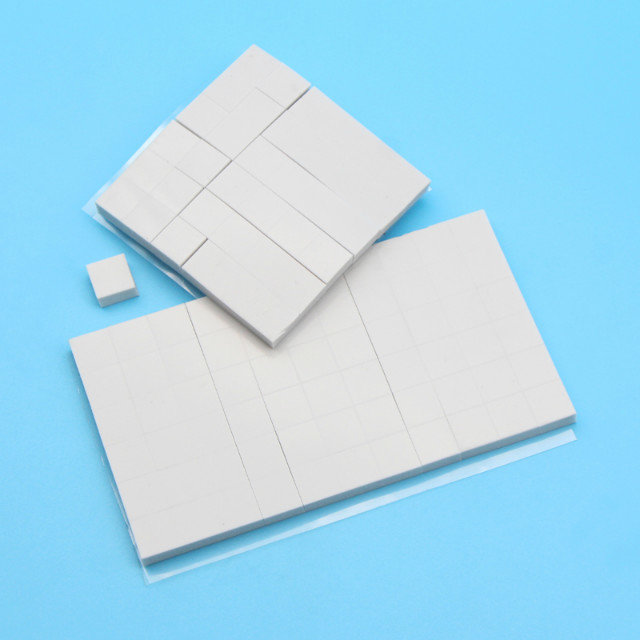

LC120 Thermal Conductive Silicon Pad


12 wmk thermal pad single or double sided adhesive tape

LC120 thermal silicone pad is a very cost-effective general economic thermal gap filling gasket, soft with its own micro-stick, easy assembly. under low compressing force to show good thermal conductivity and electrical insulation properties. Bedding on the gap between the heat device and the heat sink or the machine shell to extrude air to reach the full contact forming a continuous thermal conduction. Using heat sink or machine shell as a cooling device can effectively increase the cooling area to achieve a good cooling purposes.


Features & Benefits:

L Low cost, high efficiency, cost-effective

L Replace the volatile pollution of the thermal grease

L Natural sticky, easy to install, can be reused

L Wide range of thickness, can fill any uneven size gap

Typical Applications:

L Communication equipment

L New energy vehicles / power batteries

L Computer

L Car equipment / charger

L Switching power supply

L PC server / workstation

L Flat-panel TV

L Optical drive / COMBO

L Security equipment

L Notebook computers

L Video equipment

L Any heating element and radiator

Physical Properties:

Test Item

TEst Method

Unit

LC120

Color

Visual

-

off white

THickness

ASTM D374

mm

0.3~15.0

HArdness

ASTM D2240

Shore00

405~805

Specific Gravity

ASTM D792

g/cm3

2.1

TEnsile Strength

ASTM D412

Mpa

0.34

Elongation

ASTM D412

%

100

TEar Strength

GBT 529-2008

KN/m

1.4

BReakdown Voltage

ASTM D149

KV/mm

10

VOlume Resistivity

ASTM D257

cm

81012

Continuous Use Temp

EN344

-40~150

Flame Rating

UL 94

-

V-0

WEight Loss

@150240H

%

0.5%

Dielectric Constant

ASTM D150

@1MHz

5.41

 Thermal Conductivity

ASTM D5470

W/mK

1.2

Standard size:200mm400mm, 300mm400mm; Customized size available;

Coated with fiberglass/one side or double side adhesive/aluminum foil available
