High Thermal Conductive Silicone Pad for Air Gap Filling

FOB Price:	0.01 - 0.20 USD/Piece
Supply Ability:	500,000 Piece(s) per Week
Shipping:	FOB Shenzhen . DHL UPS EMS FEDEX
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Rated Voltage: KV/mm
Application: High Voltage
Material: Composite Polymer
Type: Insulation Sheet
Brand Name: LTD
Tensile Strength: MPa
Model Number: LC200-400

Specifications

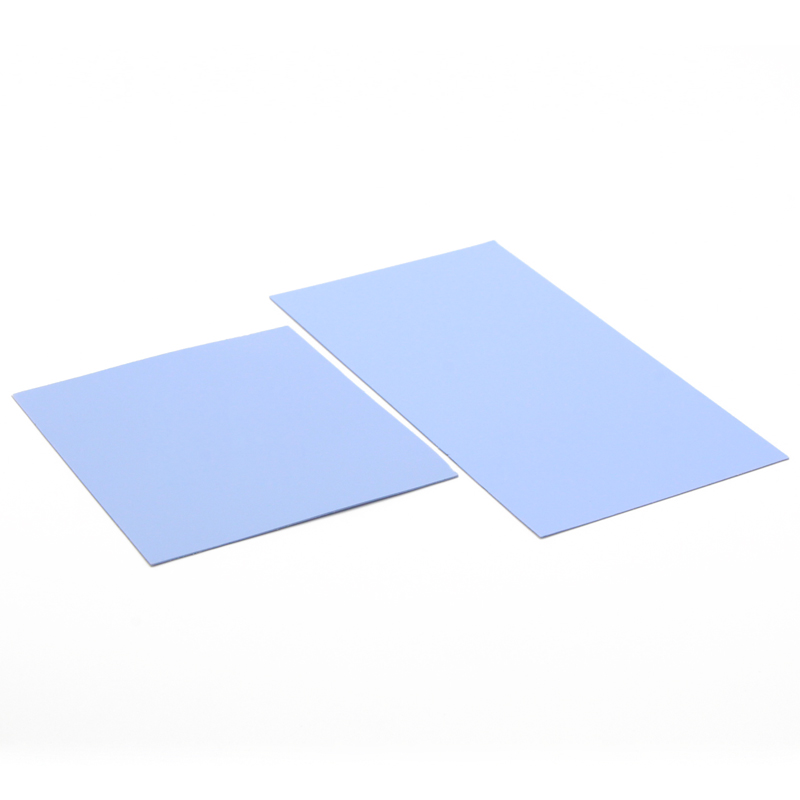

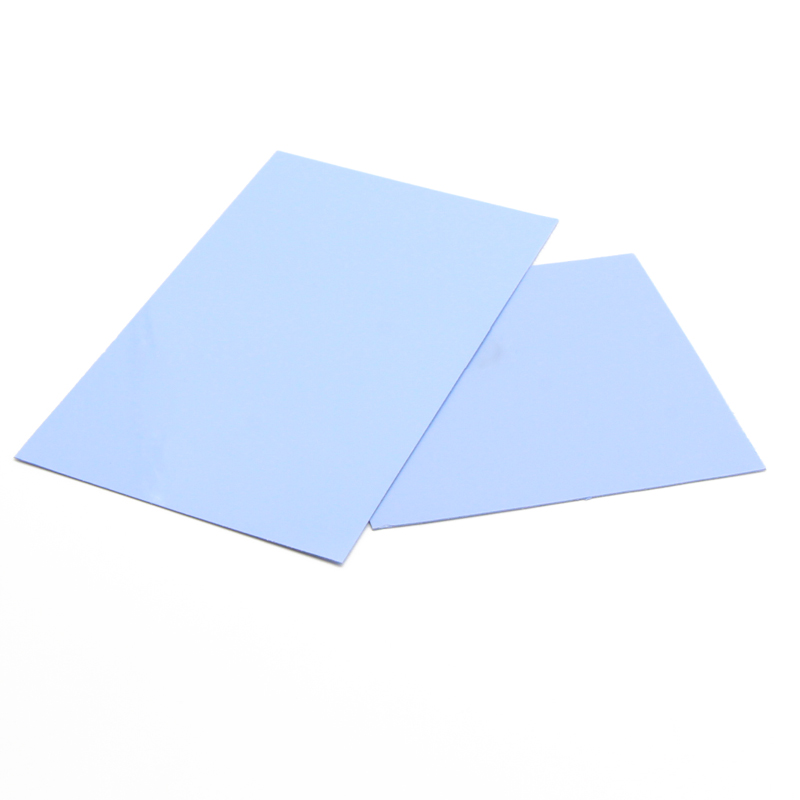

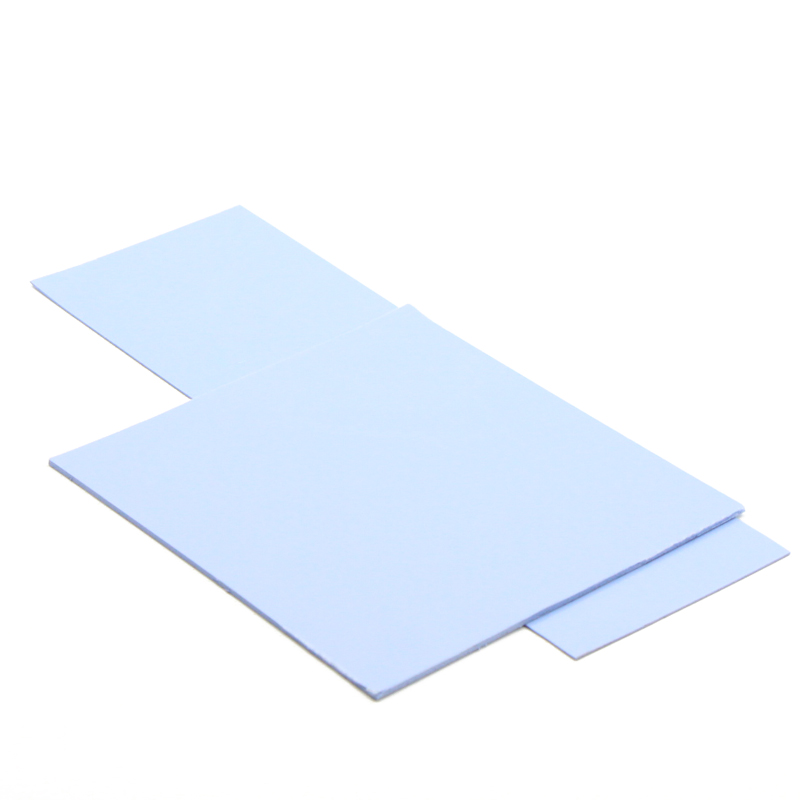

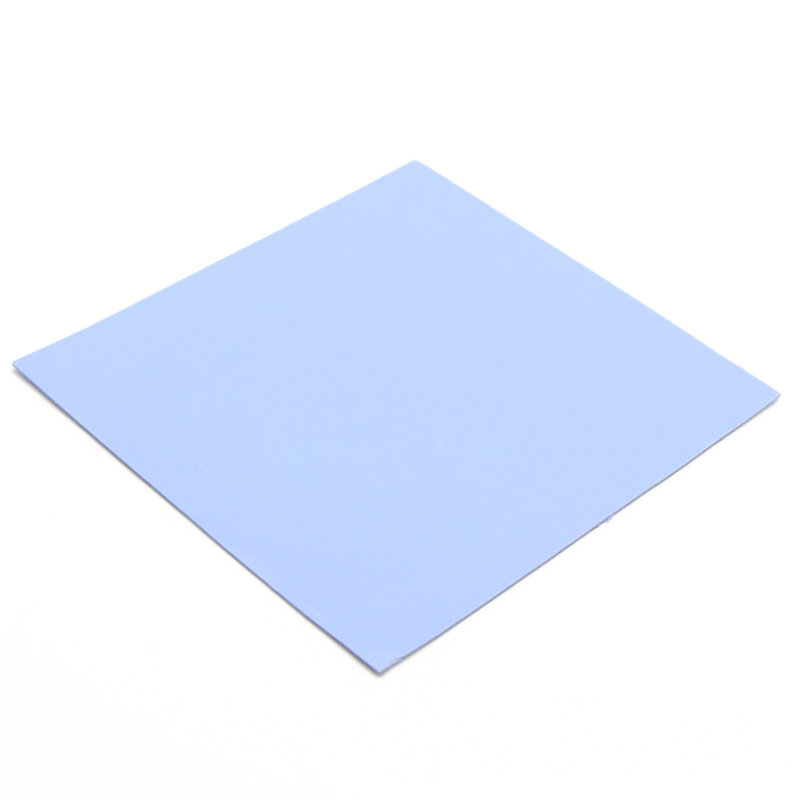

High Thermal Conductive Silicon Pad

High thermal conductive silicone pad is a high thermal conductivity material. The raw material is made of Japan Electrochemical High Thermal Conductive Spherical Alumina Powder and Dow Corning Polymer. It is a cost-effective thermal gap filling material. The surface's natural micro-viscosity and softness can well fill the air gaps to transfer the heat between the heat source and the heat sink to improve heat dissipation and improve the efficiency of heating electro-nic components and service life. It is an ideal thermal interface material.

Features & Benefits:

L Cost-effective, high conductivity, low thermal resistance

L Soft and flexible, reducing the interface thermal resistance

L High electrical insulation to protect electronic devices

L Natural sticky, easy application, reworkable

Meet ROHS and UL environmental requirements

Typical Applications:

L High thermal conductivity module

L new energy vehicles

L Microprocessors, memory chips and graphics processors

L Network communication equipment

L Car equipment, charger

High-speed hard disk drive

Physical Properties:

Test Item	TEst Method	Unit	LC200	LC250	LC300	LC400
Color	Visual	-	Blue	Blue	Blue	Gray
THickness	ASTM D374	mm	0.3~10	0.3~10	0.3~10	0.5~5
HArdness	ASTM D2240	Shore00	40~80	40~80	40~80	60~80
Specific Gravity	ASTM D792	g/cm3	2.5	2.8	3	3.24
TEnsile Strength	ASTM D412	Mpa	0.29	0.25	0.19	0.14
Elongation	ASTM D412	%	45	60	40	32
TEar Strength	GBT 529-2008	KN/m	0.9	0.6	0.9	0.7
BReakdown Voltage	ASTM D149	KV/mm	10	10	10	5
VOlume Resistivity	ASTM D257	cm	51012	71013	11012	11013
Continuous Use Temp	EN344		-40~200	-40~200	-40~200	-40~200
Flame Rating	UL 94	-	V-0	V-0	V-0	V-0
WEight Loss	@150240H	%	0.3%	0.3%	0.3%	0.5%
Dielectric Constant	ASTM D150	@1MHz	5.69	6.79	7.0	6.75
Thermal Conductivity	ISO 22007-2	W/mK	2.0	2.5	3.0	4.0

Standard size:200mm400mm, 300mm400mm; Customized size available;

Coated with fiberglass/one side or double side adhesive/aluminum foil available.

for more, please kindly feel free to contact us: rita (at) szutd.com
