Home >Products Catalog > 9-Axis Refer System AHRS/Imu/Aerospace Heading Reference Syetme

9-Axis Refer System AHRS/Imu/Aerospace Heading Reference Syetme

FOB Price:	260.00 - 300.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Week
Shipping:	DHL
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Garmin Tactix GPS Navigator + ABC Watch

Price:

Min. Order:10 Sets
10 Inch Multi Touch Netbook Support 3G / GPS Wi...

Price:

Min. Order:1 Piece
GPS Battery

Price:

Min. Order:
5'0 inch GPS (F5110)

Price:75.00-85.00 USD/shenzhen

Min. Order:
GPS Navigator

Price:150.00-250.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	CARTON

Quick Details

Warranty: 12Months
Brand Name: RION
Function: gyro
Type: ahrs
Combination: accelerometer
Model Number: AH100B
Use: Hand Held

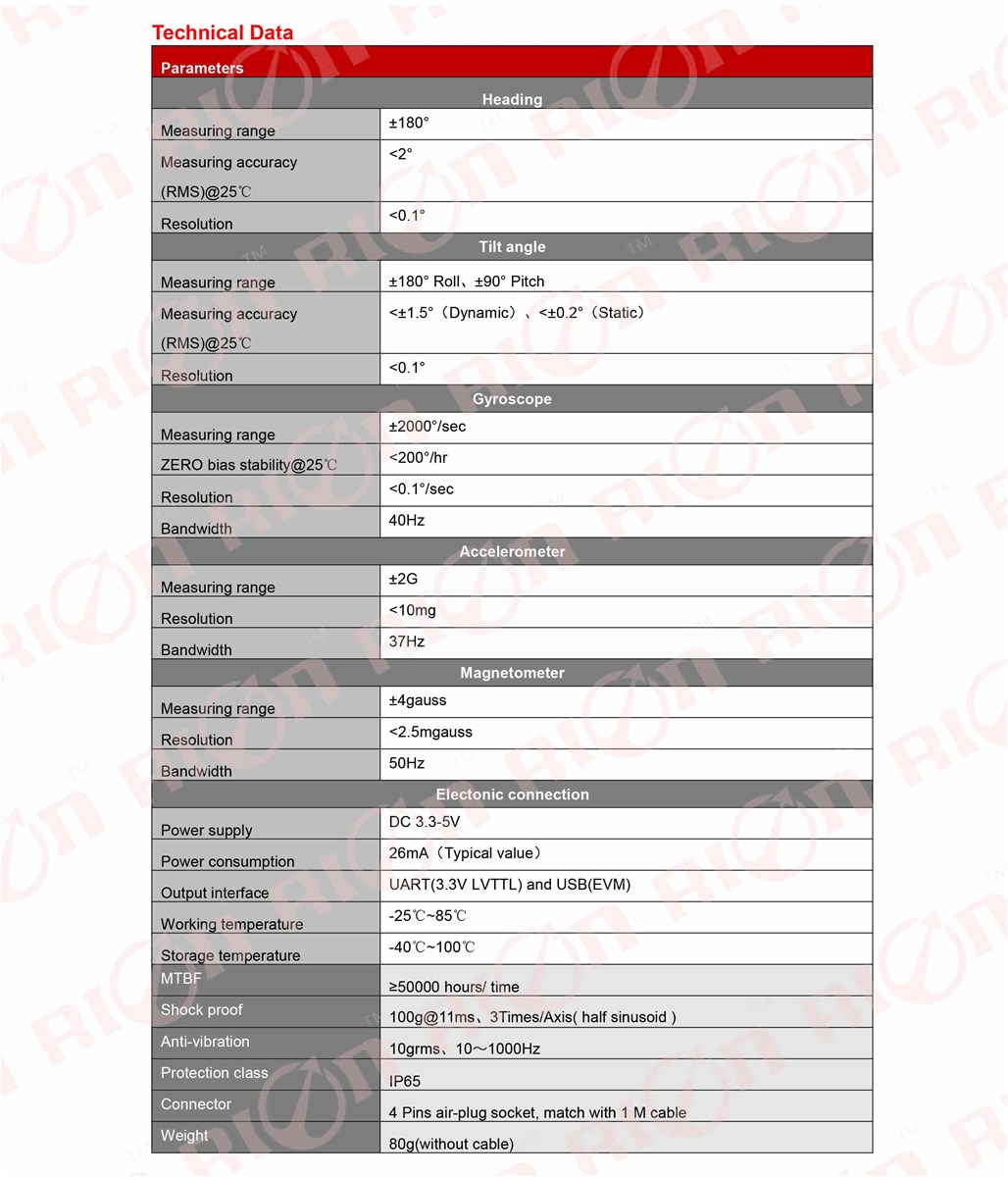

Specifications

General Description

AH100B is a high performance AHRS (Mini AHRS) with low price, can be widely used iN Aircraft model , unmanned aerial vehicles, robots and other high homeostasis electromechanical devices. The device through collecting sensor data and fusion kalman filter, Output real-time gesture data, Because of using three-axis accelerometer and three-axis magnetic sensor to assist the Three-axis gyroscope and temperature compensation algorithm technology, making the product to achieve full posture excellent stability and instantaneity, it Is widely used in all kinds of sports attitude monitoring fields. the product not only can output attitude data, Throught modifying the system parameters,bUt also can output the raw data of sensor like Physical quaNtities, quaternion, etc , meanwhile can modify the system running period to facilitate a variety of interfaces , use flash IAP (in application program) technology , according to the user needs, to keep the user's parameters after power off Can still remember, in favour of user's secondary development .

Features

Intergrated nine axis sensor and temperautre sensor
Multiple intelligent acceleration and gyro cross interference algorithm
High performance drift stability
Low noise
Light weight
Long life, strong stability
Highly cost-effective
Excellent vibration performance
50Hz updated rate
Compact and Lightweight design
TTL/RS232 output optional
Wide temperature working:-40 ~ +85
DC+5V power supply
Real time 3D dynamic measurement

Application

Military & Industry
Car Navigation
Platform stability
the human body to capture
Remote control helicopter
Truck mounteD satellite
Industry control
Robot
3D Virtual reality
Ship electronic needle error compensation related to tilt
Nstrument equipment
GPS combination
Camera steady
