Home  >Products Catalog > BMS > 18S Cells 30A Lithium Power Battery Protection Circuit Board BMS

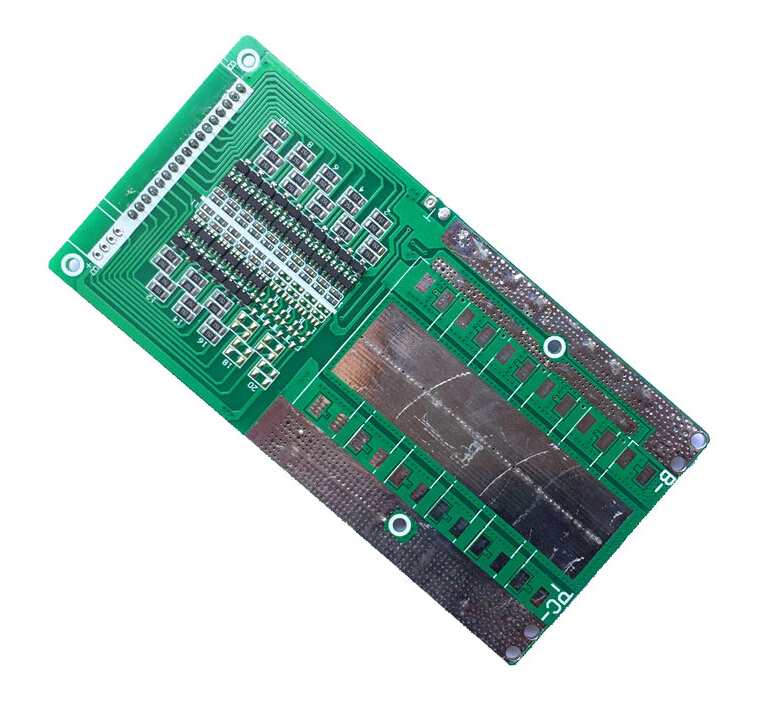

18S Cells 30A Lithium Power Battery Protection Circuit Board BMS

FOB Price: 40.00 - 45.00 USD/Piece
Payment Terms: T/T
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • Application: UAE
  • Nominal Capacity: 30A
  • Voltage: 75.6V
  • Type: Li-Ion
  • Brand Name: Jovlong
  • Input-Voltage: 170V-250V
  • Output-Voltage: 75.60V
  • Output-Current: 30A
  • Output-Power: 2400W
  • Battery-Series: 18S
  • Charging-Mode: CC/CV
  • Accuracy: 1%
  • Balanced-Mode: Passive/Active
  • Balance-Current: 3A
  • OTP/OVP/OCP: YES

Specifications

to make safer batteries, to make the battery safer.

EUA XX S XXX A series is the intelligent BMS for li-polymer battery for UAV. the BMS is compatible with all the communication protocol in the market including SMBus/UART/CAN/SPI/RS485/RS232. and there is PC smart tool and software. The BMS is not only for inspecting and forecasting the lithium and polymer battery capacity of 2s, 3s, 4s and 16s max, but also for monitoring the cells' balance states and key data, to avoid overcharging, over discharging, short circuit or over current. The user can read the Data Flash from the PC and amend the controlling parameters of the battery based on the application, then to record the discharge data.

18S Cells 30A Lithium Power Battery Protection circuit Board BMS

Model EBUA06S10A EBUA07S15A EBUA12S17A EBUA13S20A EBUA14S25A EBUA18S30A
Input-voltage 170-250V 170-250V 170-250V 170-250V 170-250V 170-250V
Output-voltage 25.20V 29.40V 50.40V 54.60V 58.80V 75.60V
Output-current 10A 15A 17A 20A 25A 30A
Output power 300W 500W 1000W 1200W 1600W 2400W
Battery series 6S 7S 12S 13S 14S 18S
Charging mode CC/CV CC/CV CC/CV CC/CV CC/CV CC/CV
Accuracy 1% 1% 1% 1% 1% 1%
Balanced mode Passive/active Passive/active Passive/active Passive/active Passive/active Passive/active
Balance current 2A 3A 3A 3A 3A 3A
OTP Yes Yes Yes Yes Yes Yes
OVP Yes Yes Yes Yes Yes Yes
OCP Yes Yes Yes Yes Yes Yes
Out-pin XT150 XT150 AS150 AS150 AS150 AS150
Out-line AWG18 AWG16 AWG12 AWG12 AWG10 AWG10
Stardard IEC60950/IEC55022A
