Guangdong Orinlon Technology Co., Ltd.
China Manufacturer with main products: BMS, Li-Polymer Battery Pack, Wireless Charging, Electronic Components |
Home
>Products Catalog > BMS > 13S 20A Drone Intelligent Charging Management System Li-Polymer Battery Pack Charger

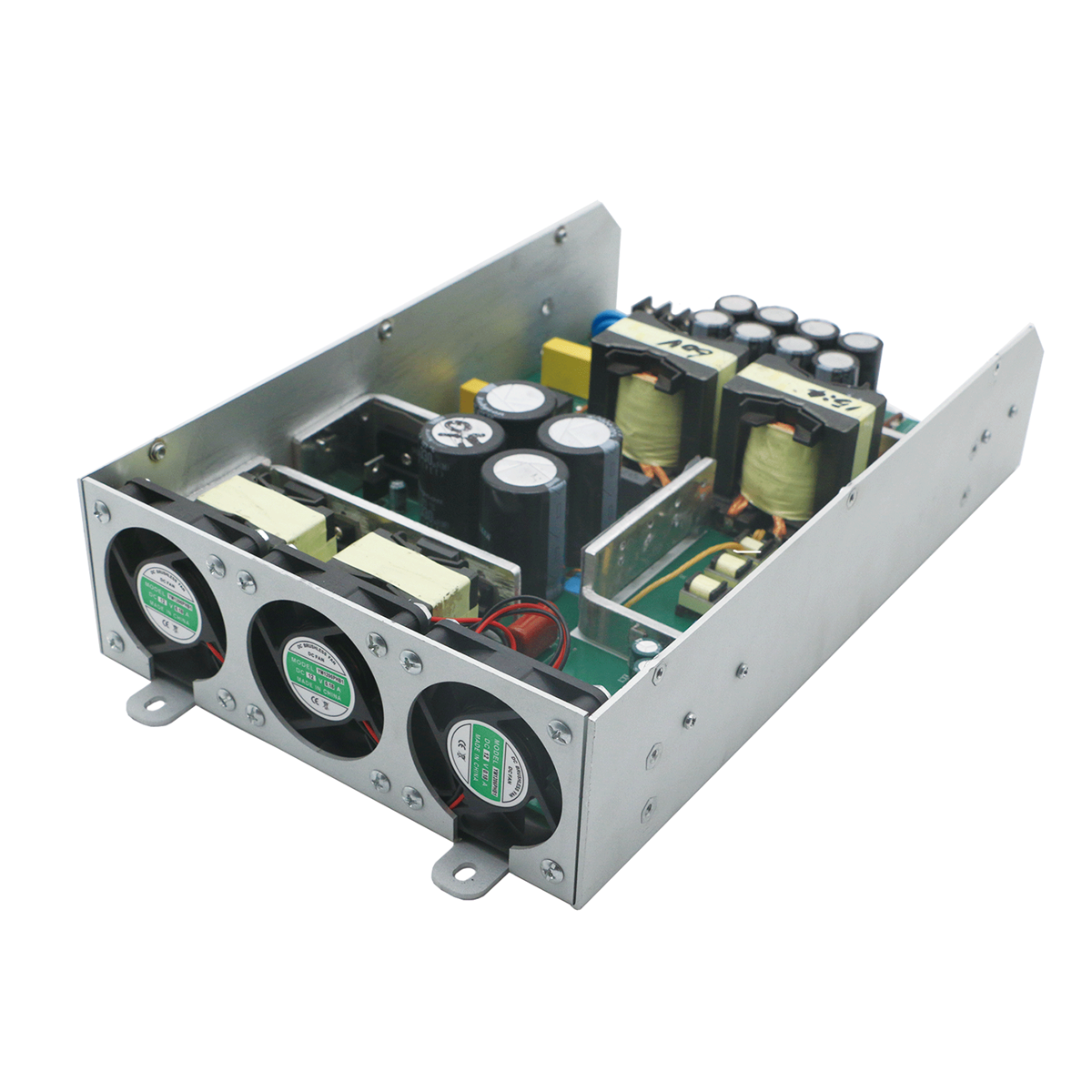

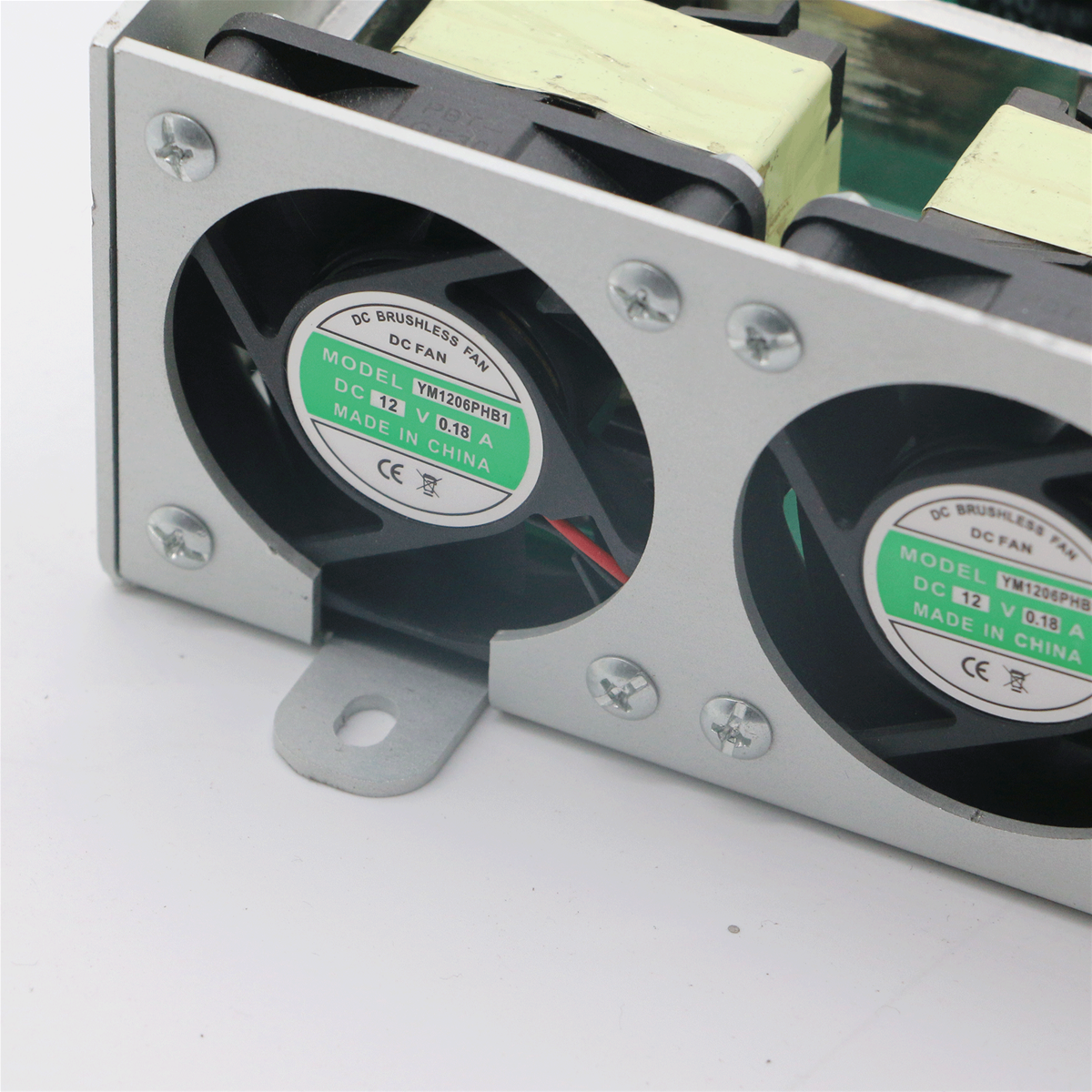

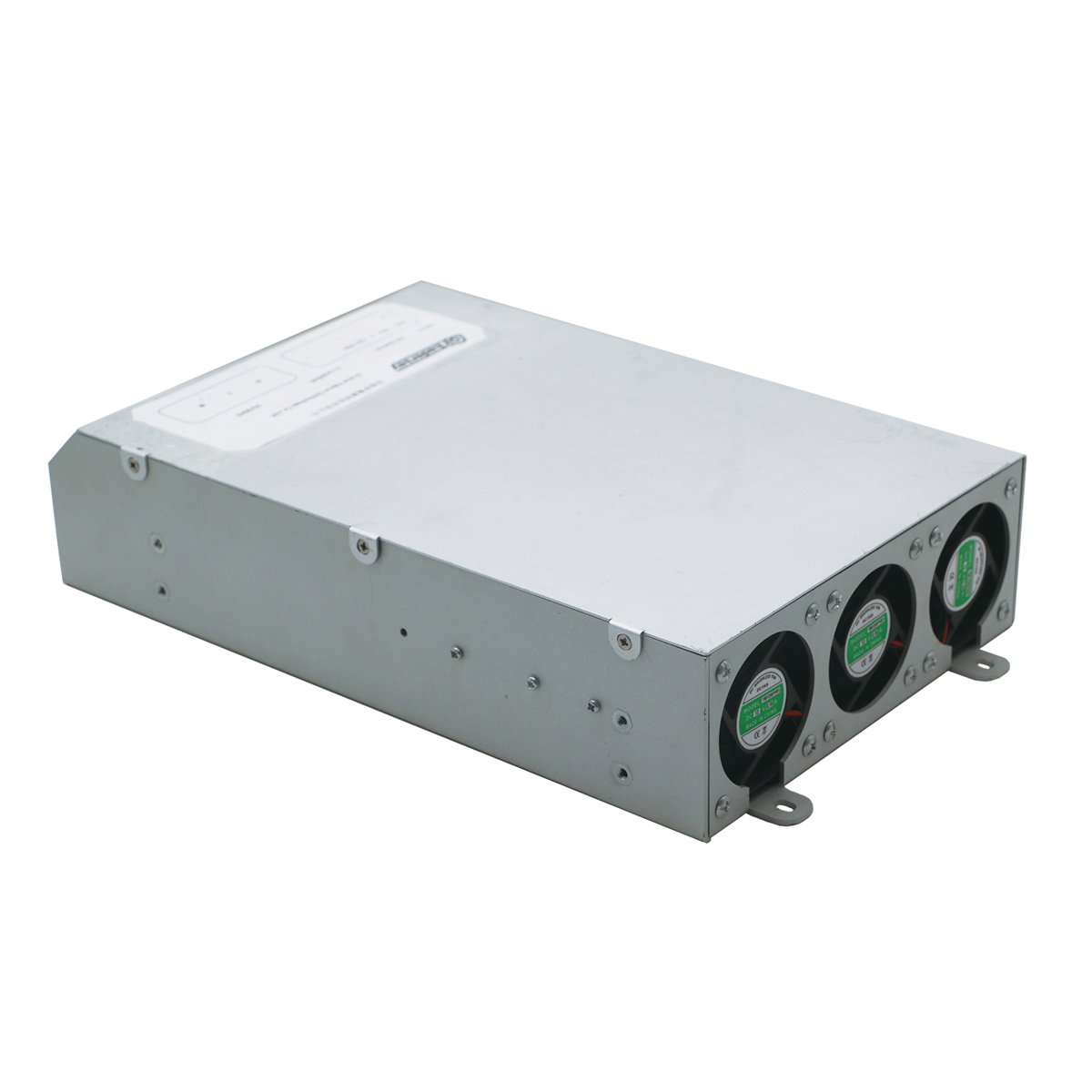

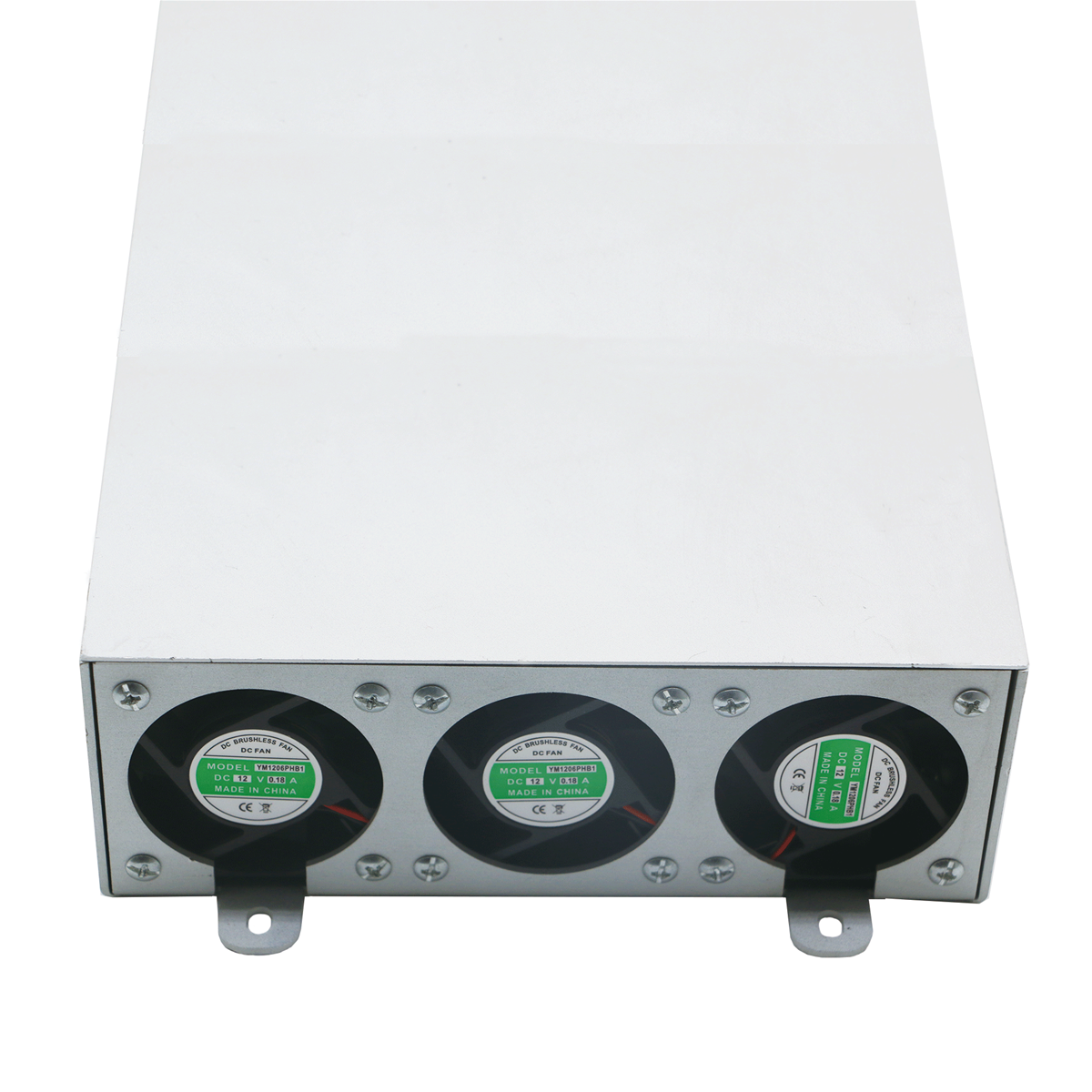

13S 20A Drone Intelligent Charging Management System Li-Polymer Battery Pack Charger
| FOB Price: | 310.00 - 325.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Type: Electric
- Use: drone
- Brand Name: Jovlong
- Socket type: Customized
- Color: customized
- Model Number: ECUA13S20A
- Intput Voltage: 170V-250V
- Output Voltage: 54.60V
- Output Current: 20A
- Output Power: 1200W
- Battery-Series: 13S
- Charging Mode: CC/CV
- Accuracy: 1%
- Balance-Mode: Passive/Active
- Balance Current: 0.5A/3A
- OTP/OVP/OCP: YES
Specifications
to make safer batteries, to make the battery safer!
ECUA XX S XX A series charging management system is an intelligent system for battery pack charging, matching all the communication protocol (SMBus/UART/CAN/SPI/RS485/RS232). the system includes PC smart tools and PC software, it is for indicating the battery of 2S, 3S, 4S even 16S, cell balance and key parameters monitoring, to avoid overcharging, over discharging, short circuit or over current. Users can read the data flash by PC, amend the parameters of ECUAxxSxxA and record the charging and discharging data.
| CMS (Charging Management System) | ||||||
| Model | ECUA06S10A | ECUA07S15A | ECUA12S17A | ECUA13S20A | ECUA14S25A | ECUA18S30A |
| Input-Voltage | 170V-250V | 170V-250V | 170V-250V | 170V-250V | 170V-250V | 170V-250V |
| Output-Voltage | 25.20V | 29.40V | 50.40V | 54.60V | 58.80V | 75.60V |
| Output-Current | 10A | 15A | 17A | 20A | 25A | 30A |
| Output-Power | 300W | 500W | 1000W | 1200W | 1600W | 2400W |
| Battery-Series | 6S | 7S | 12S | 13S | 14S | 18S |
| Charging-Mode | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV |
| Accuracy | 1% | 1% | 1% | 1% | 1% | 1% |
| Balanced-Mode | Passive/Active | Passive/Active | Passive/Active | Passive/Active | Passive/Active | Passive/Active |
| Balance-Current | 0.5A/2A | 0.5A/3A | 0.5A/3A | 0.5A/3A | 0.5A/3A | 0.5A/3A |
| OTP | YES | YES | YES | YES | YES | YES |
| OVP | YES | YES | YES | YES | YES | YES |
| OCP | YES | YES | YES | YES | YES | YES |
| Out-Pin | XT150 | XT150 | AS150 | AS150 | AS150 | AS150 |
| Out-Line | AWG18 | AWG16 | AWG12 | AWG12 | AWG10 | AWG10 |
| Balance-Line | AWG24 | AWG24 | AWG24 | AWG24 | AWG24 | AWG24 |
| Standard | IEC60950/IEC55022A | |||||
