>Products Catalog > Auto Alignment & Straightening Systems > Auto Body in Ground Frame Machine, Auto Body Frame Straightening Equipment, Car Chassis Straightening Benches
Auto Body in Ground Frame Machine, Auto Body Frame Straightening Equipment, Car Chassis Straightening Benches
| FOB Price: | 5000.00 - 10000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Quick Details
- Warranty: 1Years
- Brand Name: DOOCAR
- Worktable Width: 880mm
- Worktable Length: 3140mm
- Weight: 1600kg
- Max. Lifting Capacity: 2500kg
- Max. Hydraulic Pressure: 70Mpa (10000PSI)
- Bench Height: 120-1600mm
Specifications
in ground car chassis straightening alignment and collision repair benches

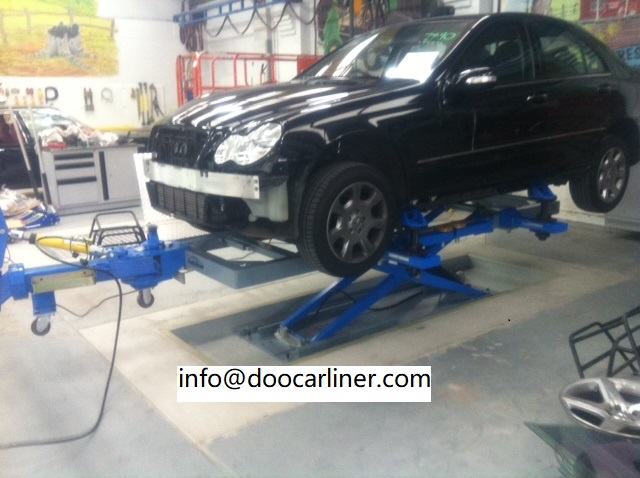

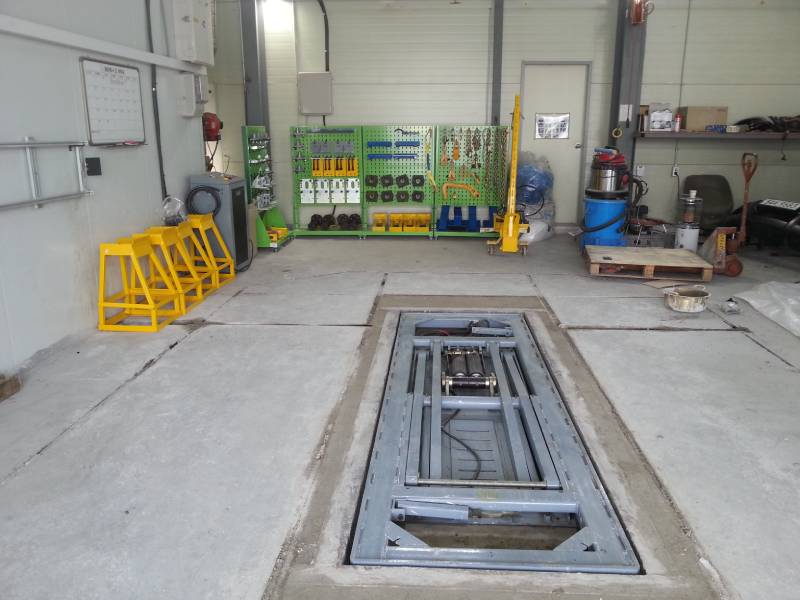

the car chassis straightening benches is Mounted in ground, level with workshop floor. Any car or trucks can be rolled into the position over the bench fast and easily. the ideal straightening, Alignment, collision repair bench suits for cars, SUVs, crossovers, MPVs and Light commercial vehicles.
Mounted the bench in the ground of your Body shop, have a frame rack in your stall without losing valuable work shop Space, create a more productive shop environment.
the in-ground bench turns into a scissor Lift after frame straightening job finished.
Feature:
1.the bench Lifting max height is 1600mm, the distance between car chassis and ground is 1900mm max. Can be used for chassis repair working as a scissor lift. the Technicians can work at a comfortable height.
2.the frame Bench is made of high tensile strength alloy steel, anchoring and holding the Clamping fixtures stationary.
3.the pulling Tower offers 100KN and 360 degree multi-angle pulling capacity.

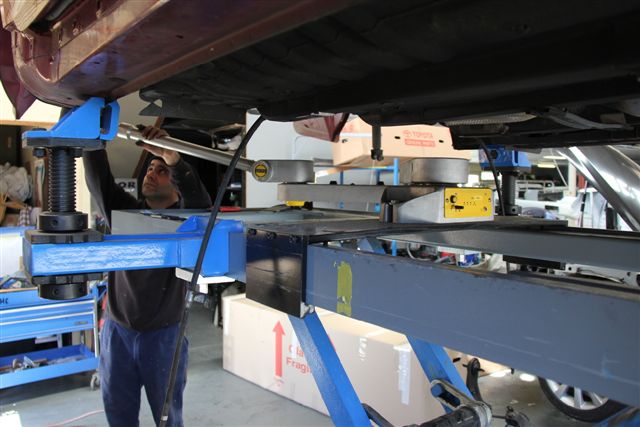

4.Universal Clamping fixtures is safe and reliable for vehicle positioning and anchoring.
5.Handle most Types of auto sheet metal damage and cosmetic damage repair.
6.High Tensile strength pulling chains keep pulling safe and long life.
7.Anchoring and pulling accessories board to avoid tools loss.
8.Perfect Combination of scissor lift and frame straightener.
9.the in-ground bench is a perfect straightening, alignment, collision repair bench, Used as a multifunctional vehicle maintenance and general repair.
10.the Straightening bench allows body collision repair of all cars, SUV,crossovers, MPVs, light commercial vehicles, as well as chassis repairs
Info(at)
Technical details:
in-ground bench specifications
Bench length |
3140mm |
Bench width |
880mm |
Bench height |
120-1600mm |
Pulling tower angle capacity |
360 degree |
Hydraulic system capacity |
70Mpa (10000PSI) |
Pulling tower capacity |
100KN |
Air pressure range |
0.5-0.8Mpa |
Lifting capacity |
2500kg |
Machine total weight |
1600kg |
Note: Besides in-ground installation, the Bench also can be mounted above the ground.
