Guangzhou Airhorse Compressor Co
China Manufacturer with main products: Screw Air Compressor, Air Dryer, Pipe Air Filter |

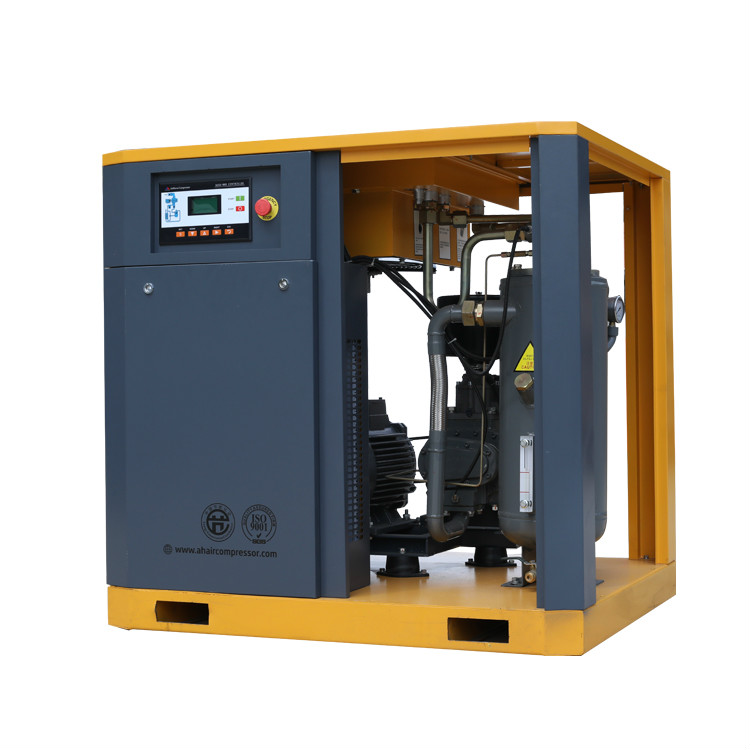

High Performance 30hp Direct Screw Air Compressor Two Stage Compressor
| FOB Price: | 1000.00 - 3000.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Carton(s) per Month |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Airhorse
- Lubrication Style: Oil-less
- Configuration: Stationary
- Type: Screw
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1year
- Certification: CE,ISO,ASME
- Weight: 491KGS
- Dimension(L*W*H): 1200*950*1150mm
- Voltage: 380/3/50(or customized)
- Model Number: AHB-30A
- Mute: Yes
- Power Source: AC Power
- Air flow: 2.8-3.8m3/min
- pressure: 8bar-12bar
Specifications
Overview
Quick Details
Condition:New Type:Screw Configuration:Portable
Power Source:AC Power Lubrication Style:Lubricated Mute:No
Place of Origin:Guangdong, China (Mainland) Brand Name:Airhorse
Voltage:380v/3ph/50hz(or customized)
Dimension(L*W*H):135*50*95mm Weight:491kg, 491kg
Certification:ISO,CE,ASME Warranty:1 year
after-sales Service Provided:Engineers available to service machinery overseas
Free air delivery:2.8-3.8m3/min Pressure:7-12barMotor power:22kw/30hp
Electricity:380v/3ph/50hz(or customized) Starting method:Star-delta starting
Cooling model:Air cooling Size:1200*950*1150mm
Packaging & Delivery
Packaging Details
Wooden Crate,Full Closed Woode Case.1pcs/each
Screw type air compressor machine prices 220v electric portable air compressor with CE mark
Port:Guangzhou,China
High performance 30hp direct Screw Air Compressor two stage compressor
| TCEHNICAL SPECIFICATIONS of the DIRECT DRIVEN SCREW AIR COMPRESSOR(Airhorse) | |||||||||||
| Model | AHD-30A | AHD-50A | AHD-75A | AHD-100A | AHD-120A | AHD-150A | AHD-175A | AHD-220A | AHD-250A | AHD-300A | AHD-350A |
| Free air deliver/Discharge pressure (m3/min/Mpa) |
3.8/0.7 3.6/0.8 3.2/1.0 2.8/1.2 |
6.8/0.7 6.2/0.8 5.6/1.0 4.9/1.2 |
10.0/0.7 9.1/0.8 8.5/1.0 7.6/1.2 |
13.5/0.7 12.6/0.8 11.2/1.0 10.0/1.2 |
16.1/0.7 15.0/0.8 13.8/1.0 12.3/1.2 |
21/0.7 19.8/0.8 17.0/1.0 15.3/1.2 |
25.2/0.7 24.0/0.8 21.0/1.0 18.3/1.2 |
28.7/0.7 27.6/0.8 24.6/1.0 21.5/1.2 |
32.0/0.7 30.5/0.8 27.5/1.0 24.8/1.2 |
36.7/0.7 34.5/0.8 30.2/1.0 27.8/1.2 |
42.0/0.7 40.5/0.8 38.1/1.0 34.6/1.2 |
| Free air deliver/Discharge pressure (CFM/PSI) |
134/102 127/116 113/145 99/174 |
240/102 219/116 198/145 173/174 |
353/102 322/116 300/145 269/174 |
477/102 445/116 396/145 353/174 |
569/102 530/116 488/145 435/174 |
742/102 700/116 601/145 541/174 |
890/102 848/116 742/145 647/174 |
1014/102 975/116 869/145 760/174 |
1131/102 1078/116 972/145 876/174 |
1297/102 1219/116 1067/145 982/174 |
1484/102 1431/116 1346/145 1223/174 |
| Compression stage | Single stage | ||||||||||
| Ambient temprerature | -5--+45 | ||||||||||
| Cooling mode | Air cooling | ||||||||||
| Discharge temperature | Ambient temperature+15 | ||||||||||
| Lubricant (L) | 14.5 | 20 | 45 | 45 | 75 | 75 | 85 | 85 | 120 | 210 | 220 |
| Noise Level (Db) | 682 | 722 | 752 | 762 | |||||||
| Drive method | Direct driven | ||||||||||
| Electricity (V/ph/Hz) | 380/3/50 | ||||||||||
| Motor power (KW/HP) | 22/30 | 37/50 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 160/220 | 185/250 | 220/300 | 250/350 |
| Starting method | Y-Starter (Star delta starting) | ||||||||||
| Dimension (mm) | 1200*900*1150 | 1560*1000*1365 | 1800*1070*1490 | 1800*1070*1490 | 2100*1400*1780 | 2500*1450*1800 | 2700*1550*1800 | 2700*1550*1800 | 2800*1800*1950 | 2800*1800*1950 | 3250*2100*2300 |
| Net Weight (kg) | 510 | 740 | 1100 | 1270 | 1450 | 2150 | 2750 | 3150 | 3450 | 3850 | 4250 |
| Air outlet diameter (inch/mm) | 1'' | 11/2'' | 2'' | 21/2'' | DN80 | ||||||
Product Display
| for more information about product form, please click |
| Screw Compressor Spare Parts |
PLC(Siemens/Schneider) Significantly increase service life Powerful troubleshooting and protection function | |
Intake valve(HOERBIGER from Austria) System automatically adjusts the consumption System automatically adjusts the consumption | |
Motor (Jiangtian, Qingjiang, Protection class IP54, insulation class F Efficiency 3%-5% higher than similar products | |
Air end (German technology) GHH Higher efficiency and more dependable Higher efficiency and more dependable |
Air filter (Germany MANN) 99.9% dedusting effect, ensuring |
|
Double screw (Sweden SKF) High precision, long service life | |
Three grade air and oil separator Built-in highly efficient air and | |
Oil filter (Germany MANN) with efficiency 20% higher than Filter accuracy up to 9m |
Application
Our products are widely used in power generation, semiconductor, shipbuilding, oil field, rubber, food, pharmacy, package, electronic, communication, cement, glasses, chemical, textile, papermaking, gas, and oil refining, etc.
Contact
Company Information
Guangzhou AirHorse Compressor Co., Ltd Is the professional manufacturing and exporter. We are specialized in air compressor research, development and production. the main products including screw air compressor, piston air compressor and air dryer etc. with the advanced design, high reliability, low noise, long running life time, our products are widely used in power Generation, semi conductor, shipping, ship building, oil field, rubber, food, pharmacy, package, electronic, communication, cement, glasses, chemical, textile, papermaking, gas, oil refining etc. |
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Our company is located in AirHorse Industrial Park, Zengcheng District, Guangzhou, Guangdong, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about product package?
A5: We pack our products strictly with standard seaworthy case.
Q6: What about the voltage of products?
Can they be customized? A6: Yes, of course. The voltage can be customized according to your equirement.
Q7: Which payment term can you accept?
A7: 40% T/T in advanced, 60% T/T against the B/L copy.
Q8: how long will you take to arrange production?
A8: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
