Euro Standard Villa Light Gauge Steel Frame Roll Forming Machine
| FOB Price: | 55000.00 - 65000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Year |
| Shipping: | Ocean shipping, Shanghai port |
| Payment Terms: | L/C, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: ISO
- Brand Name: BOSJ
- Condition: New
- Weight: 3T
- Dimension(L*W*H): 4800x1200x700mm
- Voltage: 380V 50Hz 3Phases
- Power(W): 7.5kw
- Model Number: BOSJ/S
- Production Capacity: 6-8 tons/h (Overall speed to make the whole house)
- Tile Type: Steel
Specifications
Euro standard villa light gauge steel frame roll forming machine 1.Brief Introduction: Product size: C89x41x5.5 2.Technical parameters: Dimension: 4800x1200x700mm Weight: 3 T Colour: Customized Main motor: 7.5 KW Servo motor, Taiwan Delta Transmission: Gear transmission + chain drive Forming Mould: Cr12Mov after CNC machining, vacuum heat treatment to HRC56-62 Main axis: 40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating. Speed: 40m/min(without punching and cutting) Production capacity : 6-8 tons/h (Overall speed to make the whole house) Tolerance: Punching and cutting: 0.5mm forming: 0.75mm Hydraulic Cutting 1. Assemble light steel keels piece by piece(according to numbers and drawings) 2. Combined all parts together(chassis, wall, floor beam, roof, etc) 3. Install the exterior wall 4. Complete the windows, doors and cornice with trim and flashing 5. Fix the exterior corner Thank you for your attention! Click"Send"Now!
Thickness: 0.6-1.2mm
Material Width: C178mm
Material type: G300-G550 galvanized steel

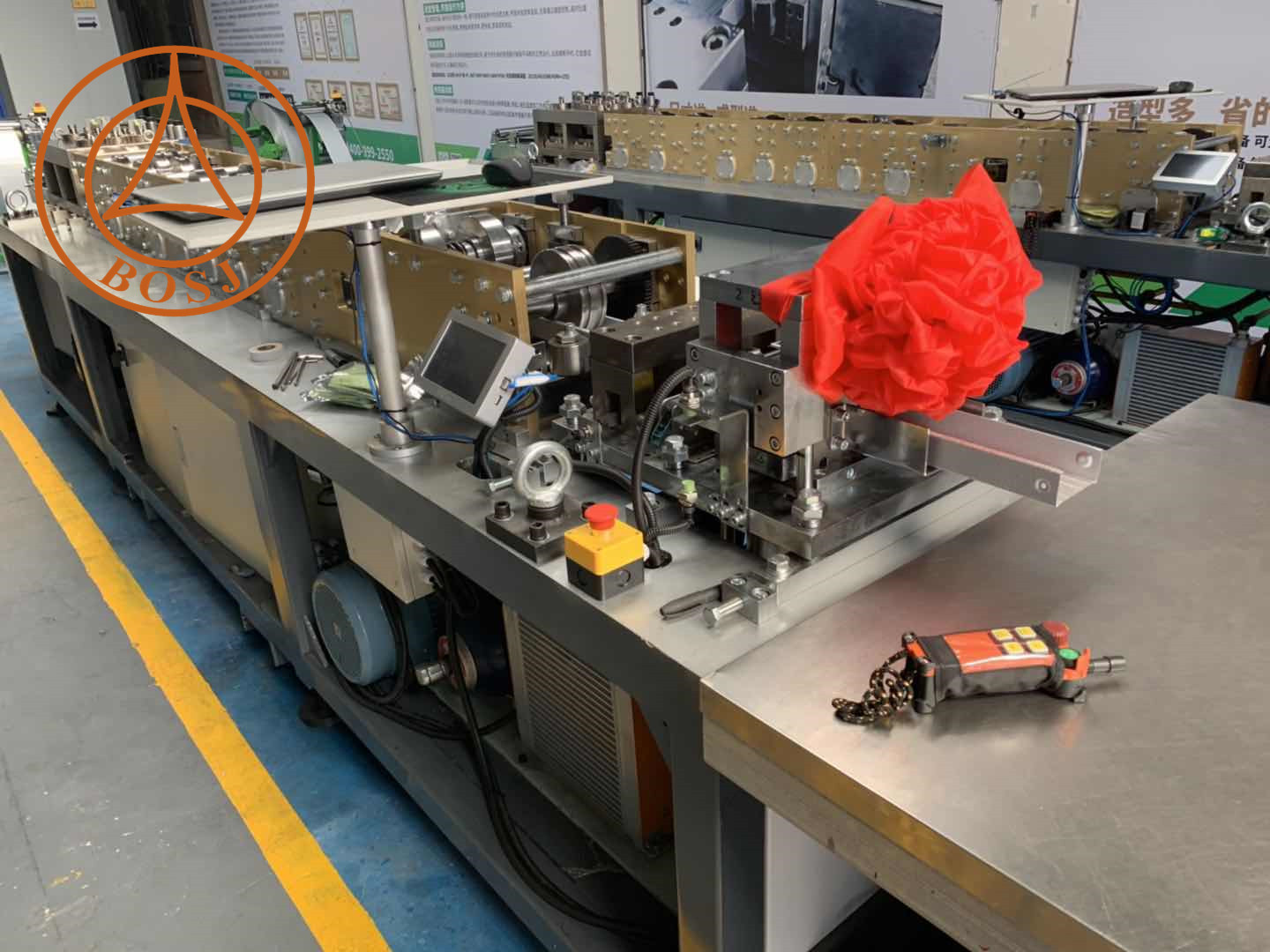

Roll Forming machine
Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;

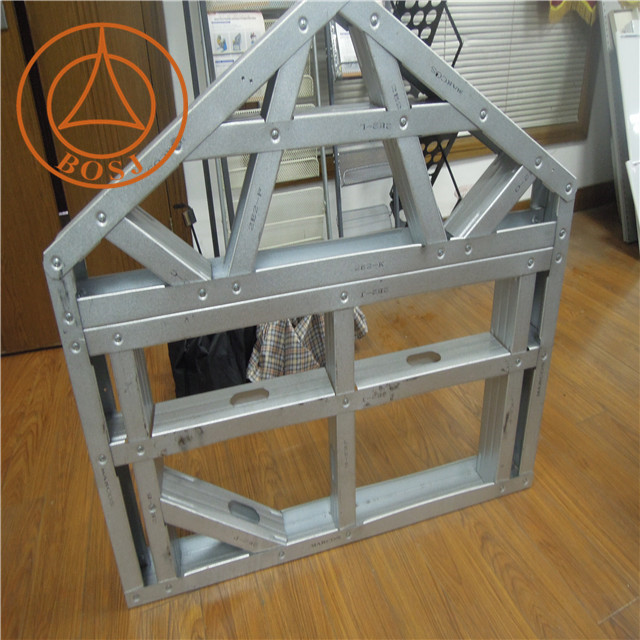

3.how to Install:
Create frame work 3D map and 3D decoration viewwith analysis project function, the software can calculate bearing capacityCalculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching materialPermanent use without updating or upgrading
