Shandong Jiaqun CNC Machine Tool Co., Ltd.
China Manufacturer with main products: Radial Drilling Machine, Turret Milling Machine, CNC Lathe Machine, Lathe Machine, Metal Band Sawing Machine, CNC Milling Machine, CNC... |

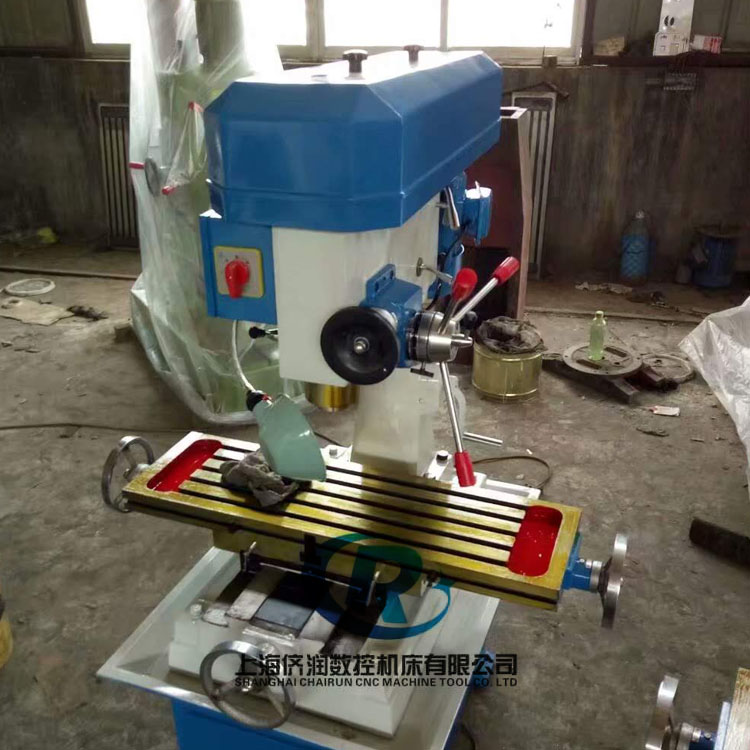

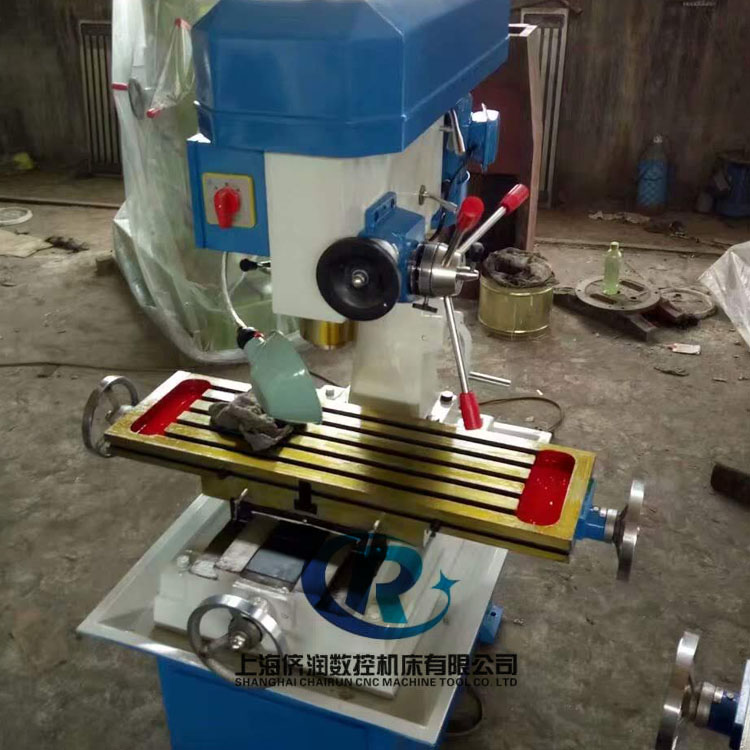

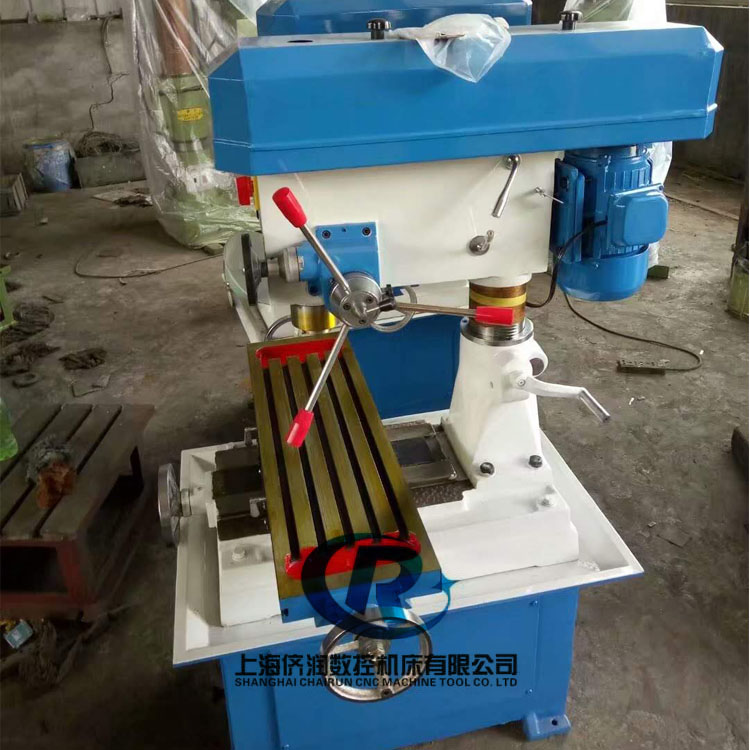

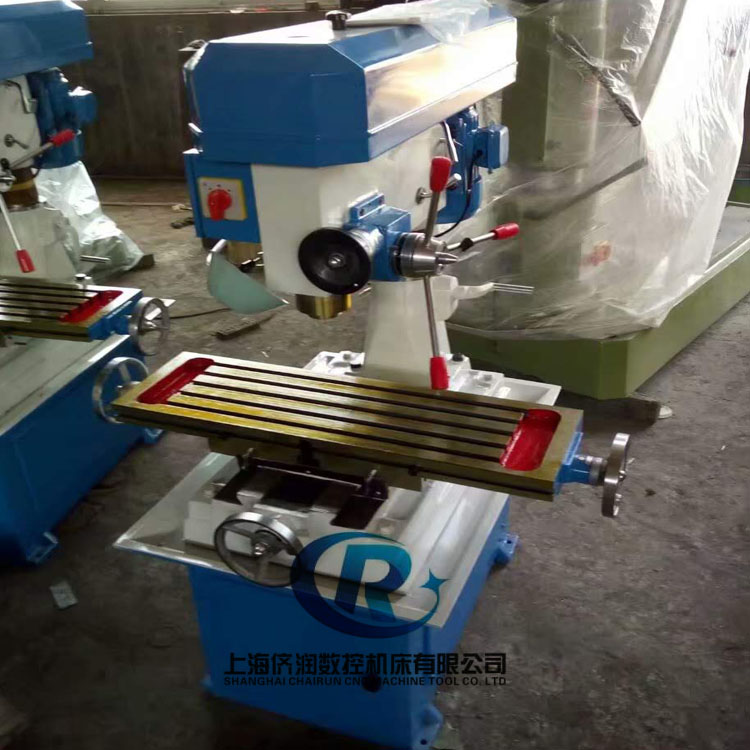

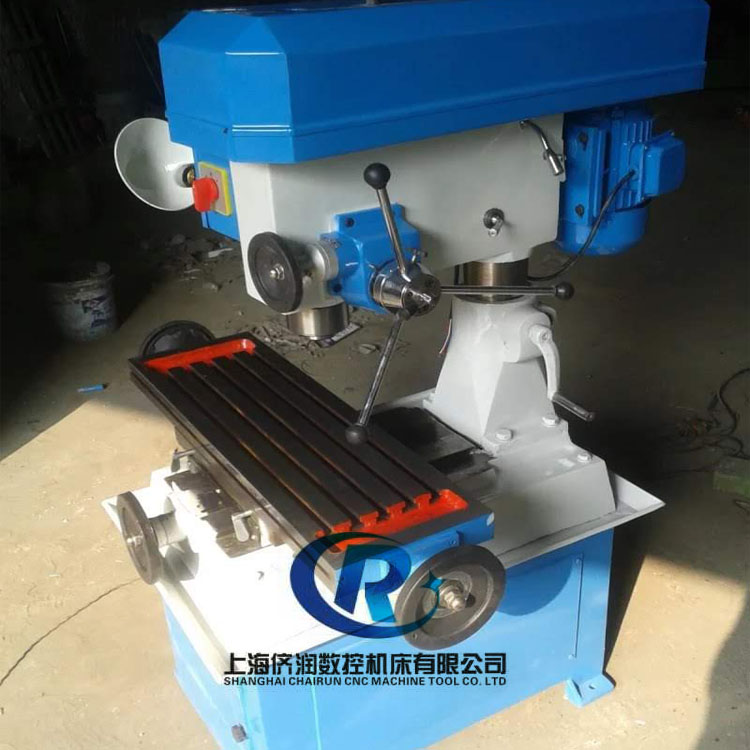

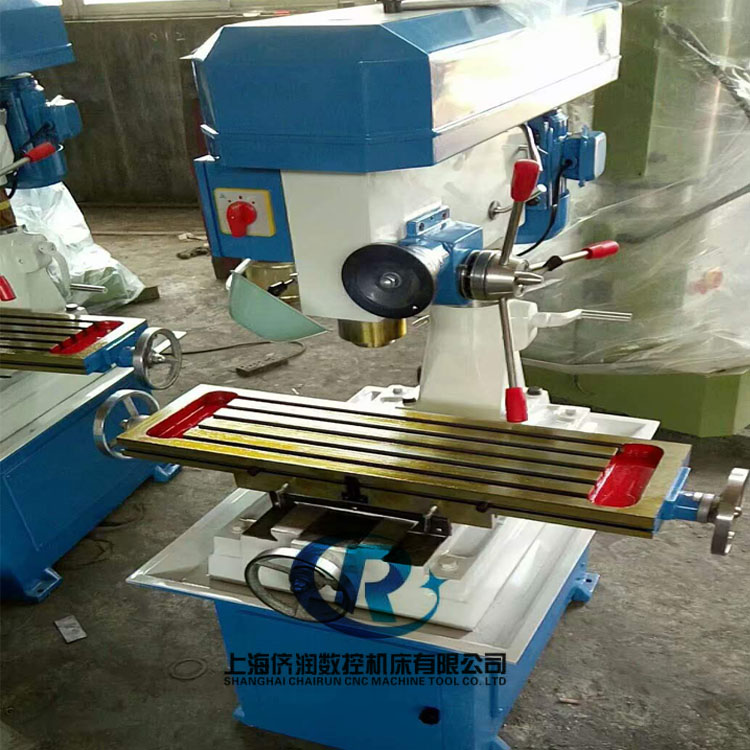

Zxtm-40 Drilling & Milling Machine
| FOB Price: | 550.00 - 700.00 USD/Other |
|---|---|
| Supply Ability: | 10 station per Week |
| Shipping: | qingdao |
| Payment Terms: | T/T, Western Union, Other, papal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- After-sales Service Provided: No overseas service provided
- Warranty: no
- CNC or Not: Normal
- Brand Name: chairun
- Condition: New
- Weight: 410/460
- Dimension(L*W*H): 1050*1200*1530
- Power(W): 1500
- Voltage: 220
- Type: Vertical
- Model Number: zxtm-40
Specifications
the main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.the Vertical Milling Machine with Milling and tapping function
3.the universal milling machine Worktable can be equipped with the gear Transmission power feed,
4.Full-featured and flexible
5.Easy to operate
6.the milling machine can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.the milling Head stock Swivels 45
Specifications |
ZXTM-40 drilling milling machine |
Max. Drilling Dia. (mm) |
40 |
Max. Horizontal Milling Dia. |
100 |
Max. Vertical Milling Dia. |
20 |
Distance from Spindle Nose to Table |
550 |
Distance from Spindle Axis to Column |
300 |
Spindle Travel |
120 |
Spindle Taper |
MT4 |
Spindle Speed Range |
(9 step) 168-3168 |
Table Size (mm) |
800*240 |
Table Travel (mm) |
400*250 |
Main Motor Power (KW) |
1.5 |
N.W./G.W.(Kg) |
410/460 |
ZXTM-40 Milling Machine Standard Packing List
No. |
Description |
Specification |
Qty |
1 |
Milling Machine ZXTM40 |
1 | |
2 |
Drilling Chuck |
16 |
1 |
3 |
V-Belt (on Machine) |
A889 |
2 |
4 |
Hexagon Spanner |
5 |
1 |
5 |
Wedge Shifter |
1 | |
6 |
Reduction Sleeve |
MT 4/3 4/2 |
1 |
7 |
Draw Bar |
1 | |
8 |
Spindle Bar |
1 | |
9 |
Wrench |
S18-21 |
1 |
10 |
Grinding Wheel |
1 | |
11 |
Boring Bar |
1 | |
12 |
Grinding Wheel |
1 | |
13 |
Machine Vice |
125 |
1 |
14 |
Milling Chuck |
MT4 |
1 |
15 |
Operation Manual |
1 | |
16 |
Quality Certificate |
1 | |
17 |
Packing list |
1 |
