Shandong Jiaqun CNC Machine Tool Co., Ltd.

Home >Products Catalog > metal band sawing machine > GB4240 Metal Band Sawing Machine|4240 Sawing Machine

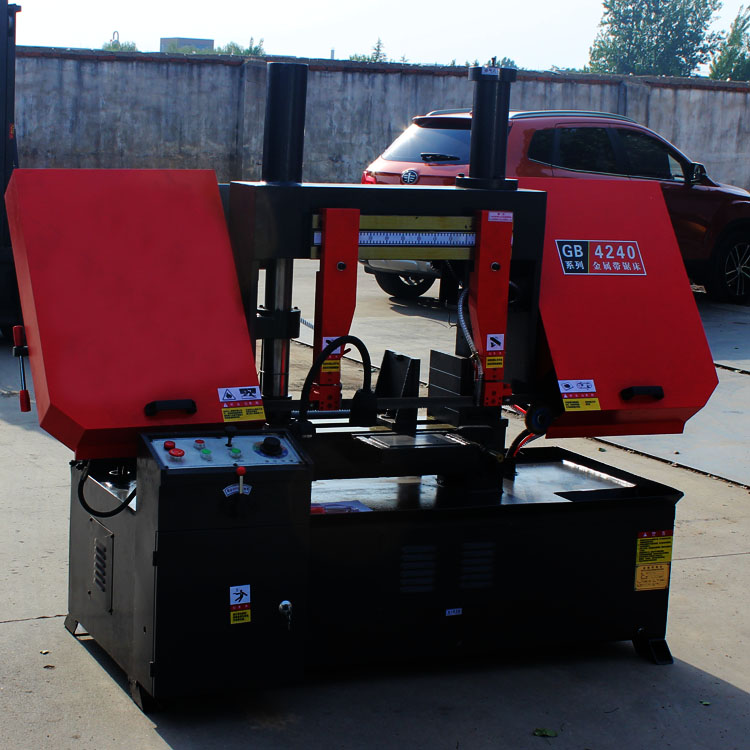

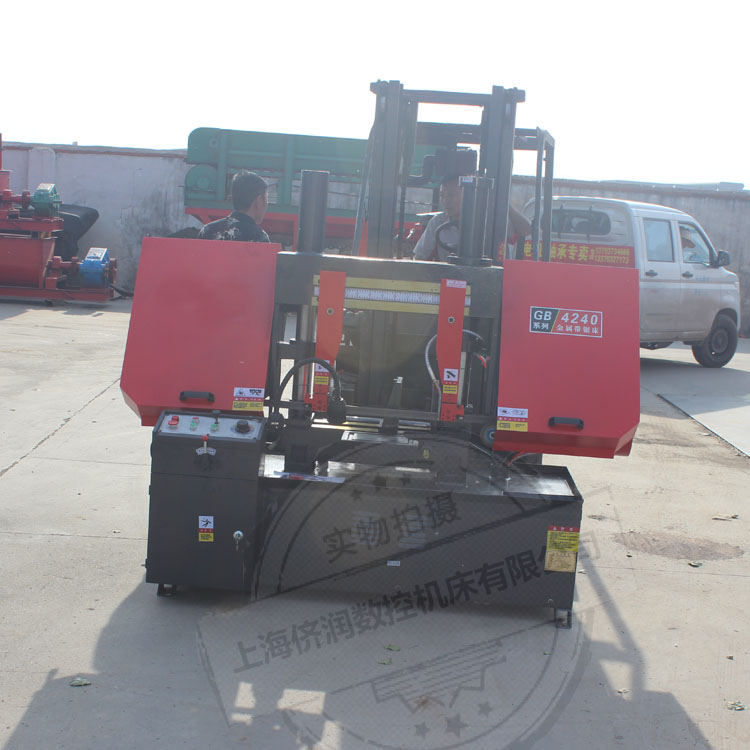

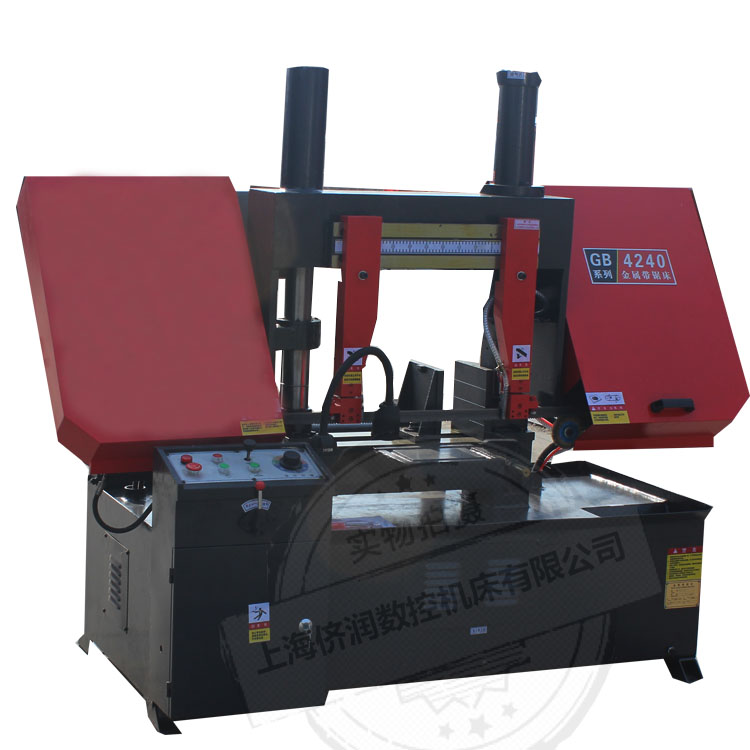

GB4240 Metal Band Sawing Machine|4240 Sawing Machine

In Stock

Inquiry Now Start Order

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Quick Details

GB4240 metal band sawing machine4240 sawing machine

the main performance characteristics:

1. Double upright column machine type,rigidity good stability.

2. Hand wave feeding mechanism, sawing automatic cycle.

3. Feeding stepless speed change, Saw belt stepless speed change

4. the size of the positioning device, for batch production.

Application:

for high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Product main technical parameters:

Main technical parameters		GB4240
Sawing range	Round steel	400mm
	Square material	400400mm
Belt saw blade size		321.14590mm
Saw blade speed		19-86m/min
Motor power	Main motor	4kw
	Oil pump motor	0.75kw
	Cooling pump motor	0.125kw
Hydraulic system pressure		3.2MPa
Working table height		575mm
Sawing machine external form size		226413041862mm
Package size		267817802150mm
NW/GW		1410/1800kg
