Home >Products Catalog > Topchina Sunbun SK 350 High Speed PET/PVC Making Injection Molding Machine

Topchina Sunbun SK 350 High Speed PET/PVC Making Injection Molding Machine

FOB Price:	36000.00 - 40000.00 USD/Set
Supply Ability:	1 Set(s) per Year
Shipping:	Ningbo Port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

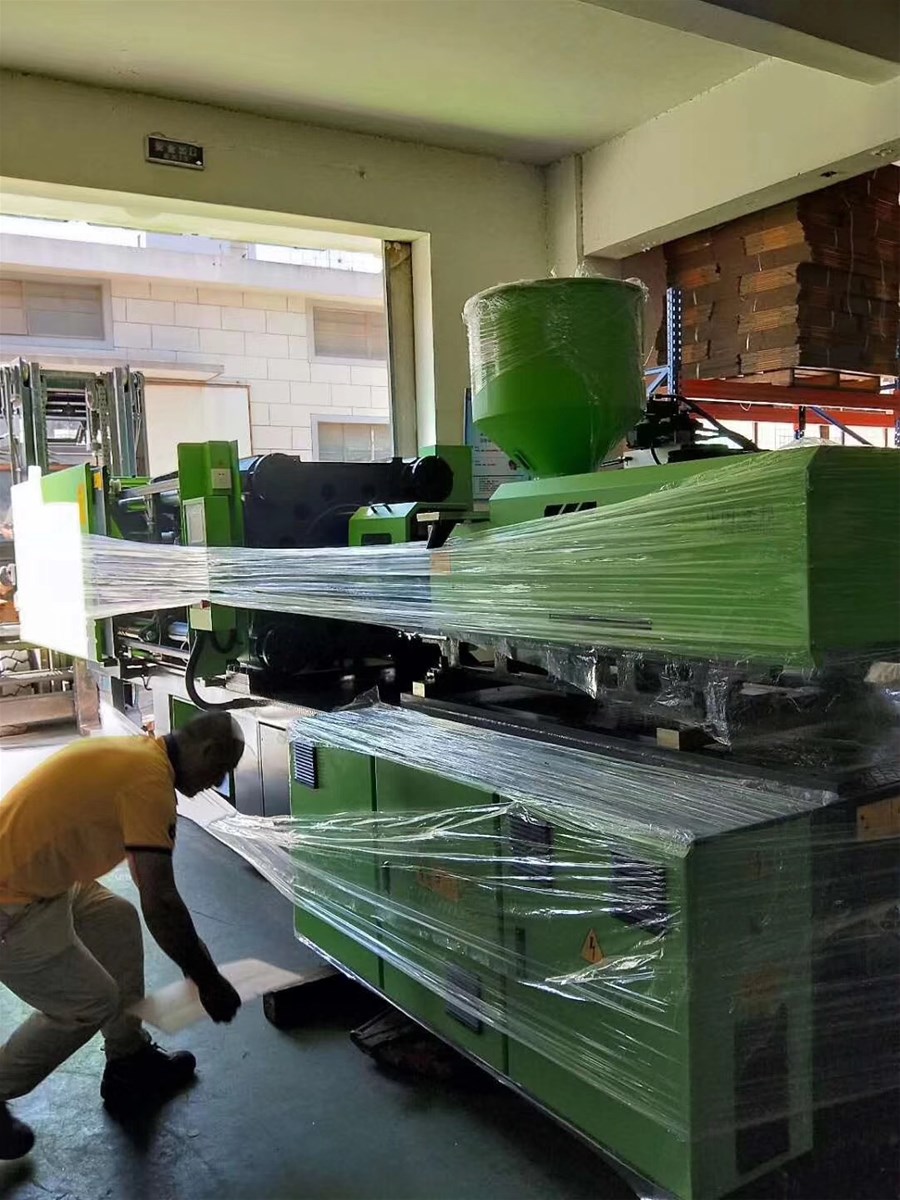

Packaging Details:	Seaway Packing

Quick Details

After-sales Service Provided: Overseas third-party support available
Clamping Force: 3500N
Brand Name: SUNBUN
Style: Horizontal
Condition: New
Certification: CE UL ISO9001 ISO14001
Power(W): 37 KW
Opening Stroke: 700 mm
Injection Rate: 403 cm3/s
Injection Weight: 1306
Automatic: Yes
Plastic Type: Thermoplastic
Model Number: SK350
Type: Preform Injection

Specifications

Brand:Sunbun
Founded:2002 Year
Structure:Central locking stucture / Central clamping sturcture  (China only 2 factory )
Production condition:2000 set   2018 years
Tonnage:140T-2800T
Series:SK Series  High speed  high precision machine
Biggest live project:1800T  /2500T

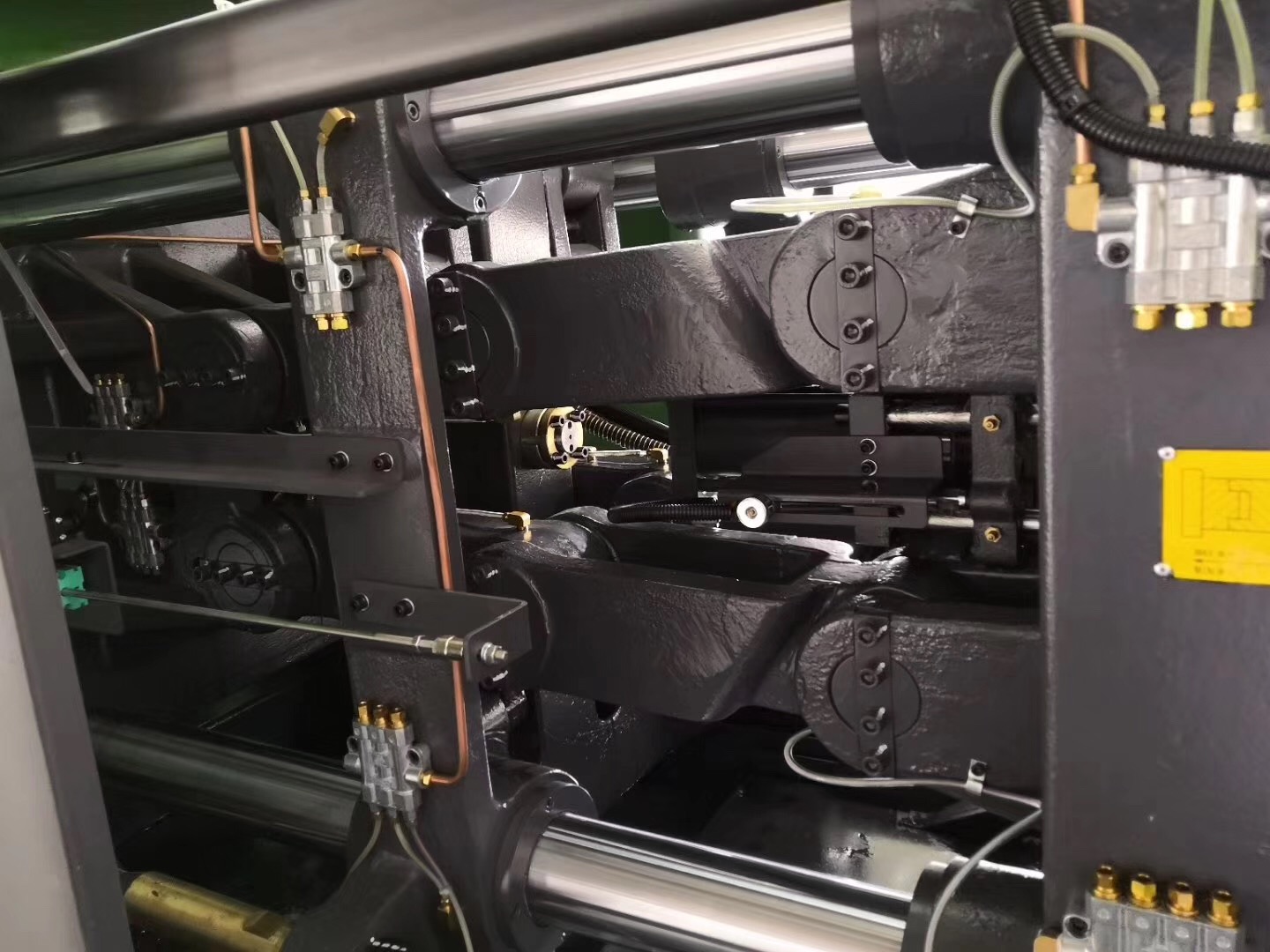

Advantage of Central locking sturcture  (sales points)

1, 100% clampping force use ratio.10%-20% higher than tradtional one
2,  Less fins on the finished products
3,  2%-6% raw material saving on the production   (deeper cavity more, save more material)
4,  effective production for the mold.Mold board and pull rod
5,  Open stroke 10%-20% longer than tradtional one
6,  Less deformation after cooling
7, FB:

Shortl spacking.......
1, Bigger clampping force,  Use smaller machine make bigger productes
2, Bigger Open stroke,  Very suit for deep cavity product

Inject type	Unit	SK350/C1900
Screw type		A	B	C	D
Screw dia	Mm	60	65	70	75
Screw dia ratio	L/D	22.5	21	21.5	20
Injection volume	Cm3	918	1078	1250	1435
Injection volume (ps)	G	835	981	1138	1306
Max injection rate to air	Cm3/s	258	302	350	403
Injection pressure	Mpa	206	176	152	132
Injection stroke	Mm	325
Max injection speed	Mm/s	92
Screw max speed	R/min	182

Clamping force	Kn	3500
Open stroke	mm	700
Bar distance	Mmxmm	713X660
Max mold	Mm	730
Min mold	Mm	330
Ejector stroke	Mm	190
Ejector force forward	Kn	113
Ejector force backard	Kn	82
Thimble qty	Pcs	1+12

System pressure	Mpa	16
Motor power	Kw	37
Heater power	Kw	24.95/28.55
Tem control zone qty	Pcs	1+5
Bucket capacity	Kg	50
Oil tank capacity	L	520
Size	M	7.1X1.75X2.2
Weight	T	13

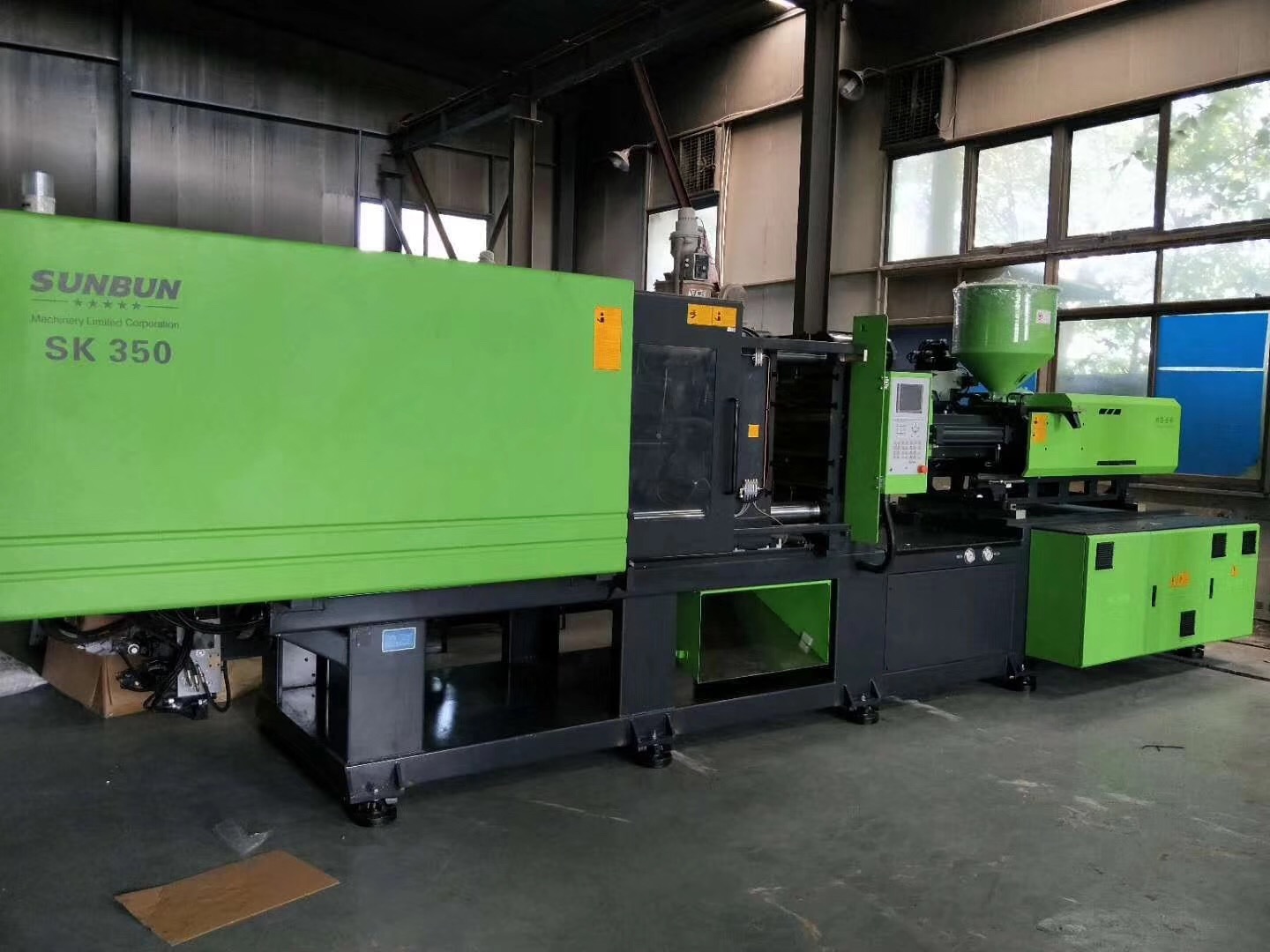

China Sunbun SK 350 high speed PETPVC making injection molding machine
