| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 100pcs/bag |
Quick Details
- Gender: Male
- Type: Adapter
- Brand Name: FUTAI
- Color: silver
- Model Number: FT-Adapter-TNC/N-JJ
- Material: Brass
- Plating: Nickel
- Insulator: PTFE
- Product Name: TNC to N adapter
- Sample: welcome ask sample for testing
Specifications
Wholesale TNC Male to N Male Adapter
Specifications:
Model |
FT-Adapter-TNC/N-JJ | |
Major Technical Characteristics | ||
Type |
FT-Adapter-TNC/N-JJ | |
Impedance |
50 | |
Frequency Range |
DC~12.4 | |
Center conductor retention force |
0.28 N | |
Insertion Loss |
0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight 1.10+0.02f | |
Durability(mating) |
500(cycles) | |
Material & Plating | ||
Body |
Brass |
Gold plated /nickel plated |
Pin contact |
Brass |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Insulator |
PTFE | |
O-ring sealing |
6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's Requirements.

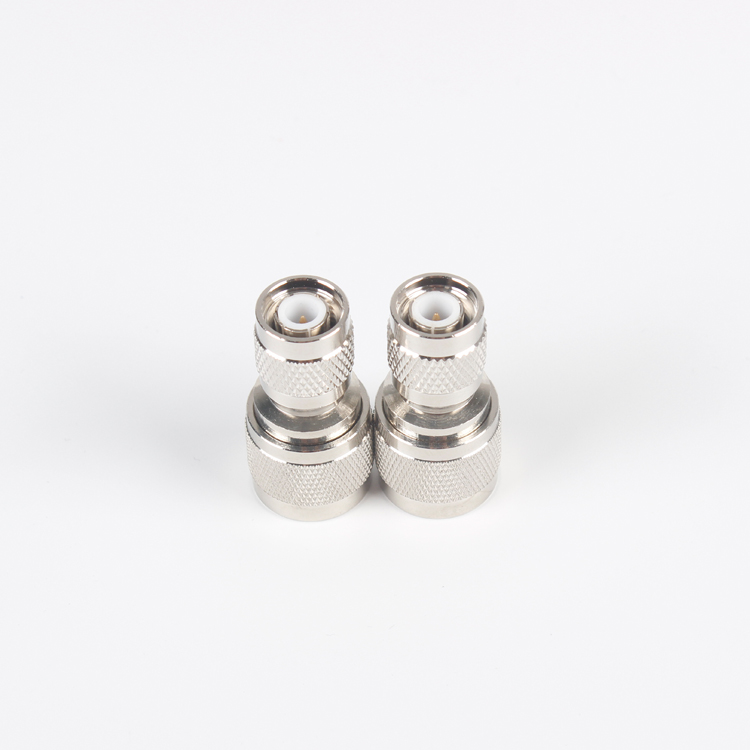

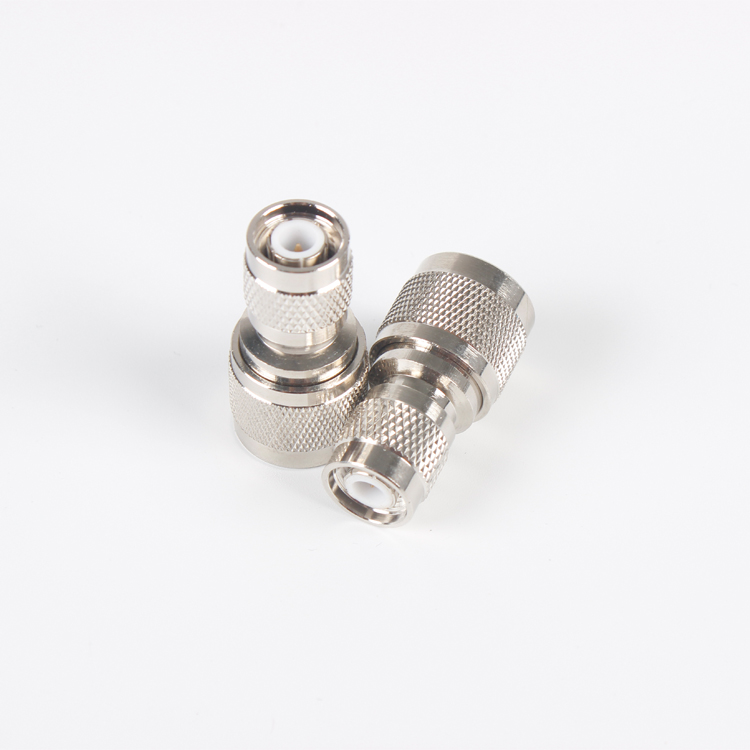

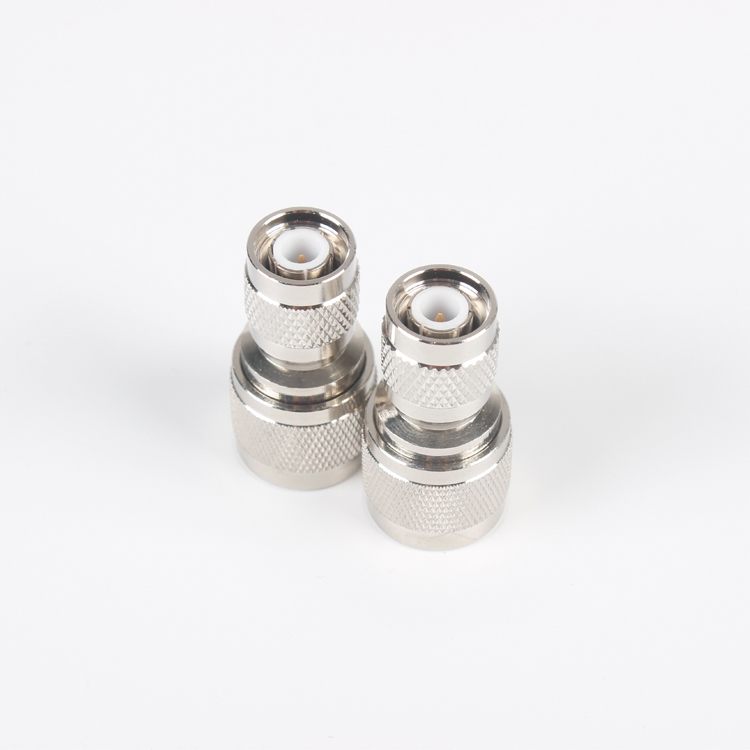

Pictures
about Us
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on).
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
