REPEATER & CRH MODULE CIRCULATORS RF Drop in
| FOB Price: | 5.00 - 7.00 USD/Piece |
|---|---|
| Supply Ability: | 99,999 Piece(s) per Month |
| Shipping: | FOB Shanghai |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | packing tray |
Quick Details
- Brand Name: ME-SOUL

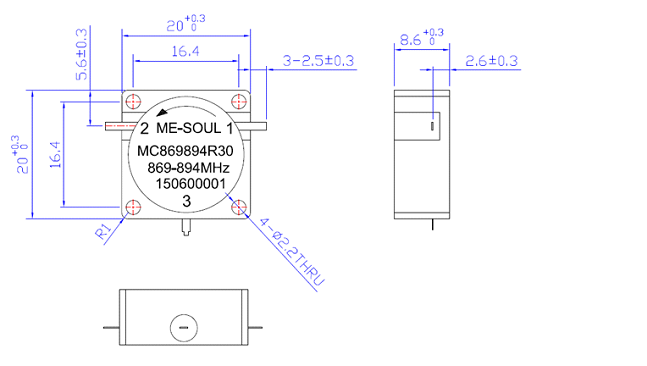

- Size: 20*20*8.6
- Type: circulator
- Material: steel
- Color: black

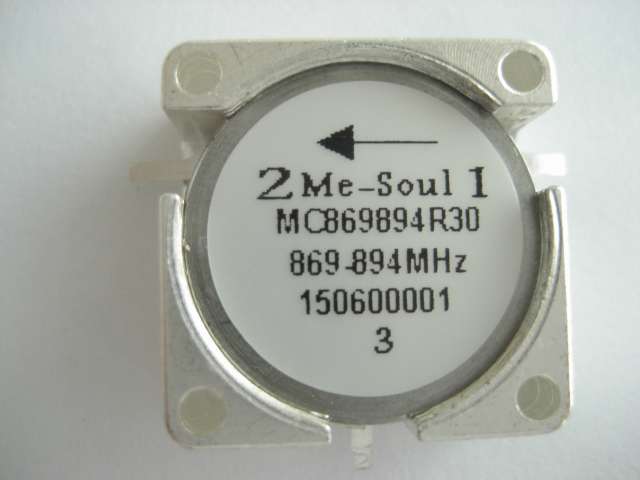

- Model Number: MC869894R30
Specifications
Description
REPEATER and CRH MODULE CIRCULATORS
Applications
Power Amplifier for Repeater
Module for CRH(China Railway High-speed)
Features
Good temperature performance.
Low Insertion Loss, Low IMD Design,
High power handling.
ROSH Compliance.
High quality,Low price, Fast delivery.
Custom design available.
Description
It is the high volume of circulators designed
for Repeater and CRH modules
and other infrastructure environments.
this design offers high reliability.
Specification:
Model No Frequency Range Insertion Loss Isolation(dB) VSWR Temperature Power (W)Dimensions (mm)(MHz)(dB)()
MC824849R30 824-849 0.35 21 1.2 -40~+85 100 20*20*8.6
MC925960R30 925-960
MC869894R30 869-894
