Qingdao Zhenxiong Equipment Co., Ltd.

China Manufacturer with main products: PE Gas and Water Pipe Machine, PP/PE Krah Pipe Machine, High-Pressure Composite Pipe Making Machine, PE Insulating Pipe Machine, PE...

Home >Products Catalog > Automatic Double Corner Refrigerator Door Gasket Welding Mahcine

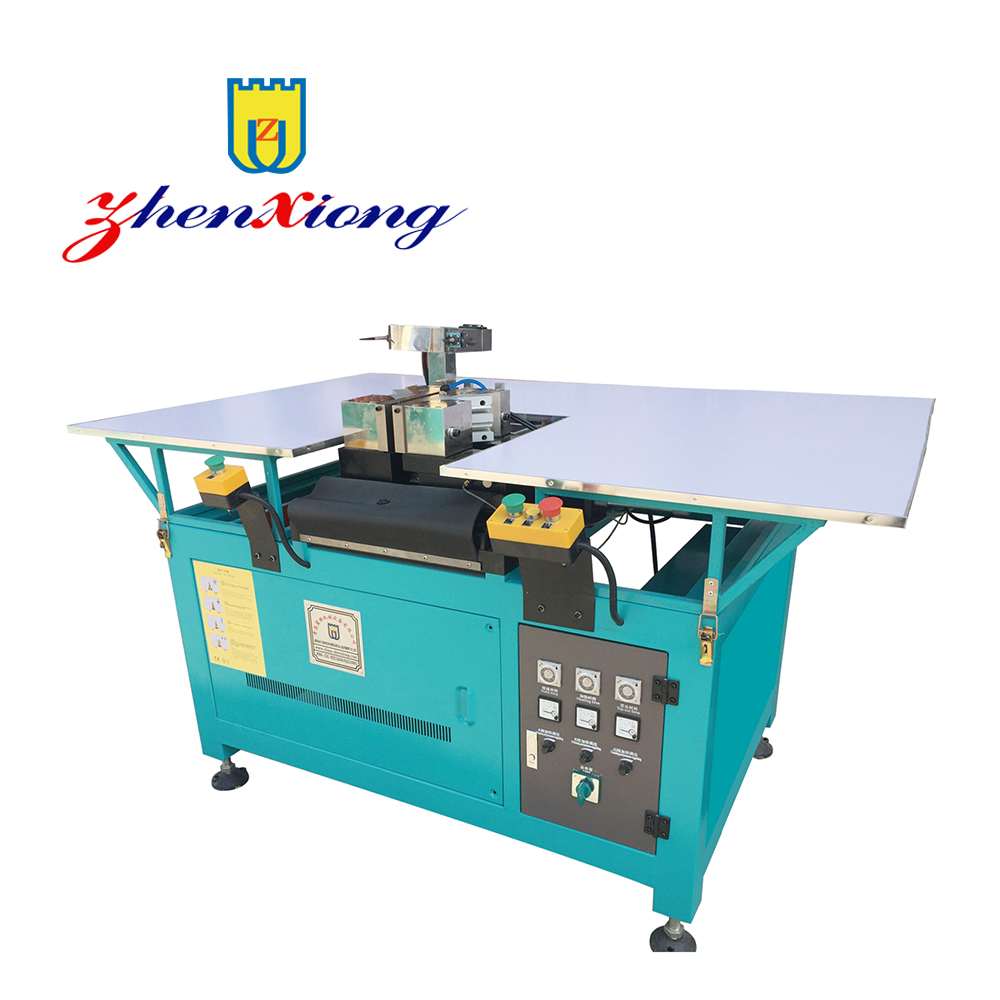

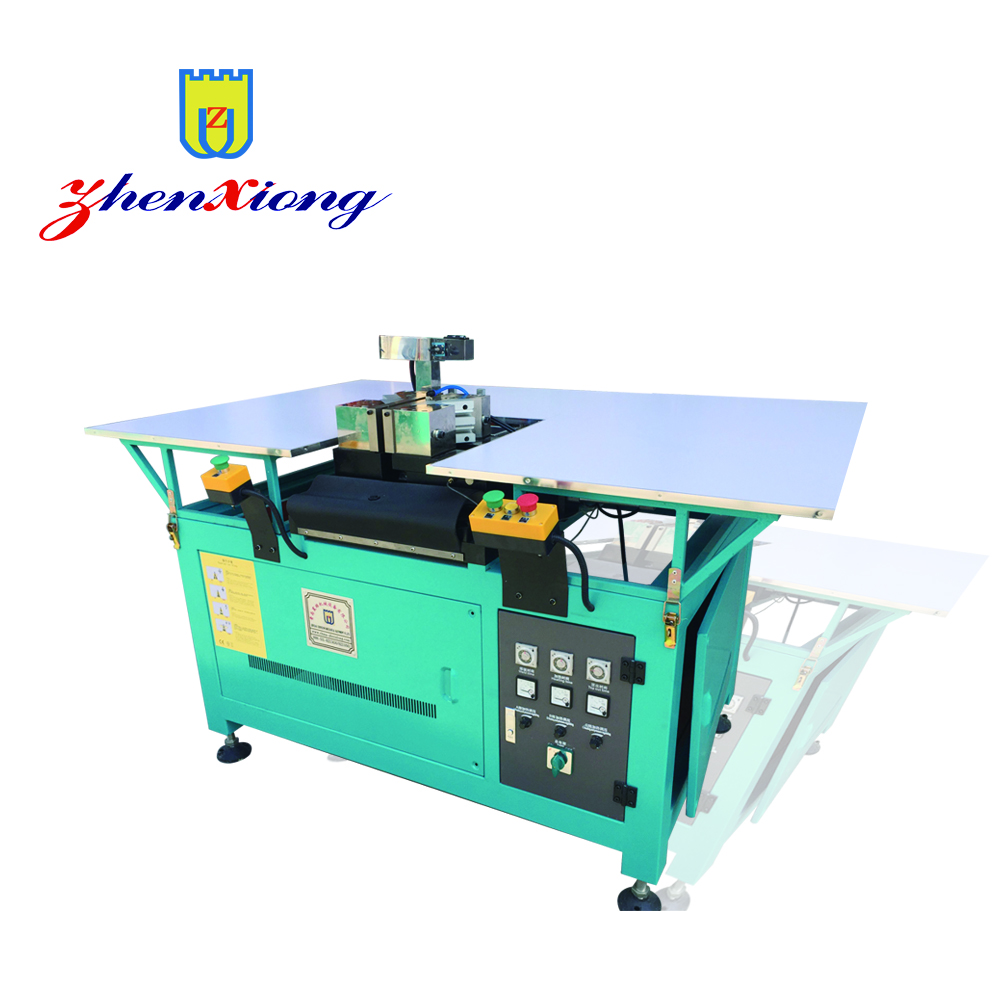

Automatic Double Corner Refrigerator Door Gasket Welding Mahcine

FOB Price:	6300.00 - 6800.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	Qingdao port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Satandard package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Usage: welidng
Weight: 3.5t
Voltage: 380V 50Hz 3phase
Brand Name: ZX
Dimensions: 2m x 1.4m x 1.4m
Welding Area: 60mm X 60mm
Frequency: AC
Power: 2.3kw
Model Number: ZXSJ
Voltage: 220V or 380V
Frequency: 50-60Hz

Specifications

Feature:

(1) this machine adopts advanced PLC control system that conquers error of old machine caused by multi electric apparatus.

(2) It breaches many processes of old welder such as manual work for pruning rest material and welding lump and so forth.

(3) this machine can weld 2 gasket corners every time, after welding, it cleans rest material automatically to keep even, firm and beautiful appearance of welding corner.

(4) the welding process is: heating ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.

(5) Photoelectrical protection system is used to protect hands being clamped in operation.

(6) Welding period is 11~14 second/ two corners, the output can reach 600~650 sets per day.

Else we supply other parts as follows:
(1) Automatic refrigerator door gasket production line& mould.
(2) New stype Automatic refrigerator door gasket welding machine & mould.
(3) Automatic single cornern refrigerator door gasket welding machine & mould.
(4) Magnetic strip inserting machine to gasket.
(5) Magnetic strip extruder.
(6) Automatic 45 degrees cutting machine.
(7) Refrigerator door gasket mould.
(8) Soft PVC granulator & crusher.
(9) Other downstream equipments.
Automatic double corner refrigerator door gasket welding mahcine
