Dongguan Zeguan Machinery Co., Ltd.
China Manufacturer with main products: Aluminum Cutting Machine, Aluminum Sawing Machine, Steel Pipe Cutting Machine, Aluminum Angle Cutting Machine, Aluminum Profile 45 Degree... |
Photo Frame Angle Cutting Machine, Aluminum Frame Angle Cutting Machine
| FOB Price: | 5400.00 - 5750.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Quick Details
- After-sales Service Provided: No overseas service provided
- Condition: New
- Brand Name: ZEGUAN
- Weight: 460
- color: blue
- Model Number: ZG-350SA2
Specifications
High spindle rotation. Cut two 45 (one 45at Left and right respectively) simultaneously with one movement. Accurate cutting Angle. Smooth cutting section and burr-free. No need for secondary processing. High efficiency: 3 times of productivity of common single-head machine. Be Suitable for 45saw cutting (sliding door and window frame, photo frame, Picture frame, display case, air outlet, light boxes, screens, strips, aluminum Binding, extruded aluminum ).

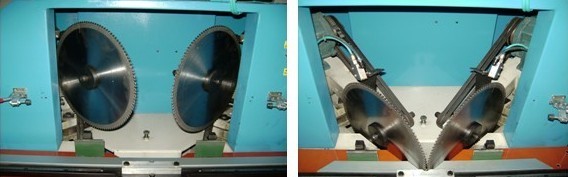

1. Double-pole synchronous saw cutting: cut two 45 (one 45at left and Right respectively) simultaneously with one movement and save 2/3 of time Compared to general cutting.
2. Stamp foot switch to auto press and saw materials, which is safe and Easy.
3. Air-pushed hydraulic saw feeding and steady cutting speed. Auto-spray Atomized cutting oil during cutting to cool and lubricate saw blade to keep it Clean and sharp.
4. Clamp with cylinders at top and bottom, front and back, steady Materials, never deform, accurate cutting angle and pressing pressure Adjustment available to prevent hollow material from deforming.
5. 2.5*2.5mfeeding and discharging rack are specially Installed on right and left of the machine. Set positioning plate on Discharging rack for convenience of determining cutting dimensions (transfer Table is steel platform).
Model |
ZG-350SA2 |
Sawing Angle |
452 |
Max. Sawing Width |
90mm |
Max. Sawing Height |
140mm |
Spindle Speed |
3300R.P.M |
Saw blade |
Tungsten Steel head; alloy saw blade |
Dimension of work surface |
870190800mm |
Machine Motor |
2HP2 |
Air Pressure |
6kg/cm2 |
Machine Dimension |
14109001300 |
Packing Dimension |
15009801420mm,2500*150*100 |
NW/GW |
390/460kg |
