Home >Products Catalog > Portable Biogas CH4 CO2 H2S O2 Gas Detecting Monitor with External Air Pump

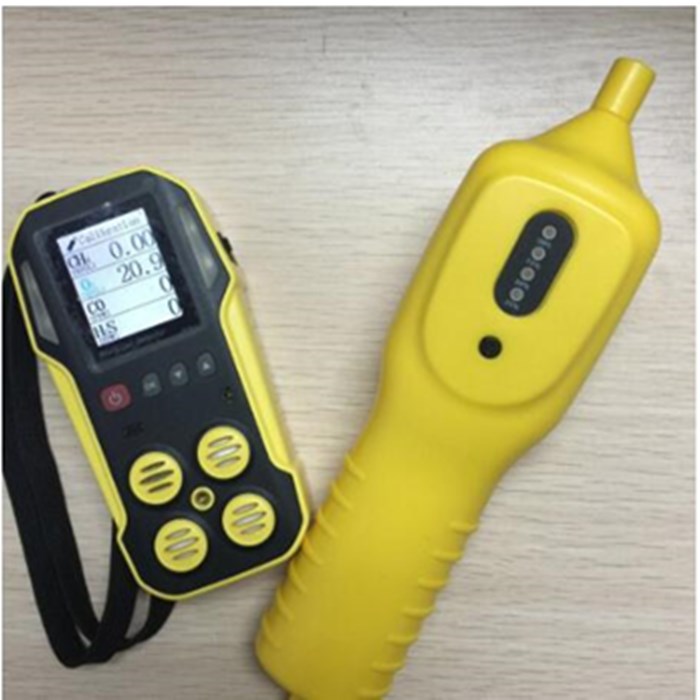

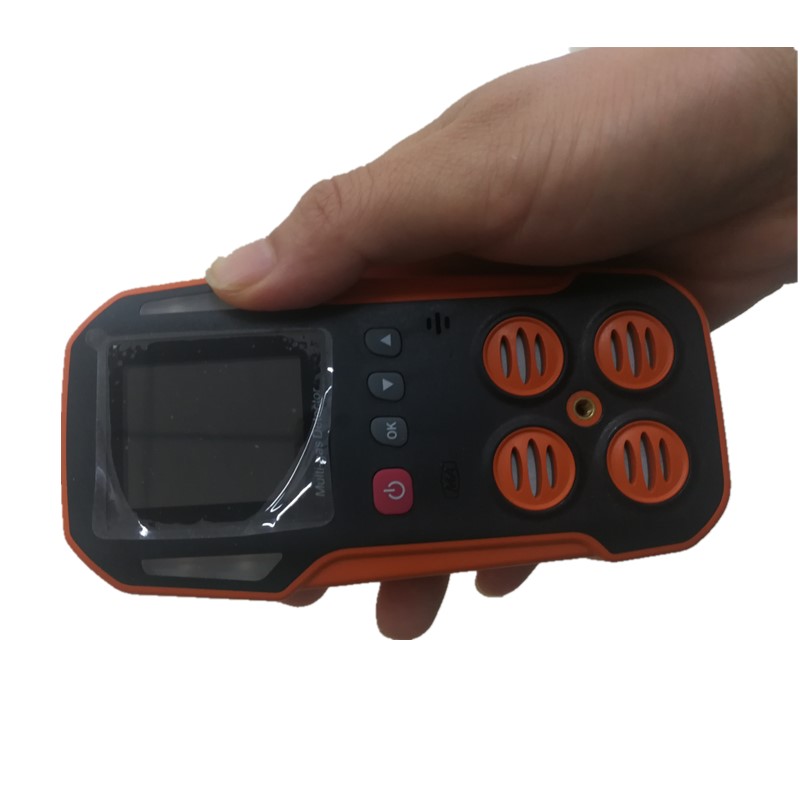

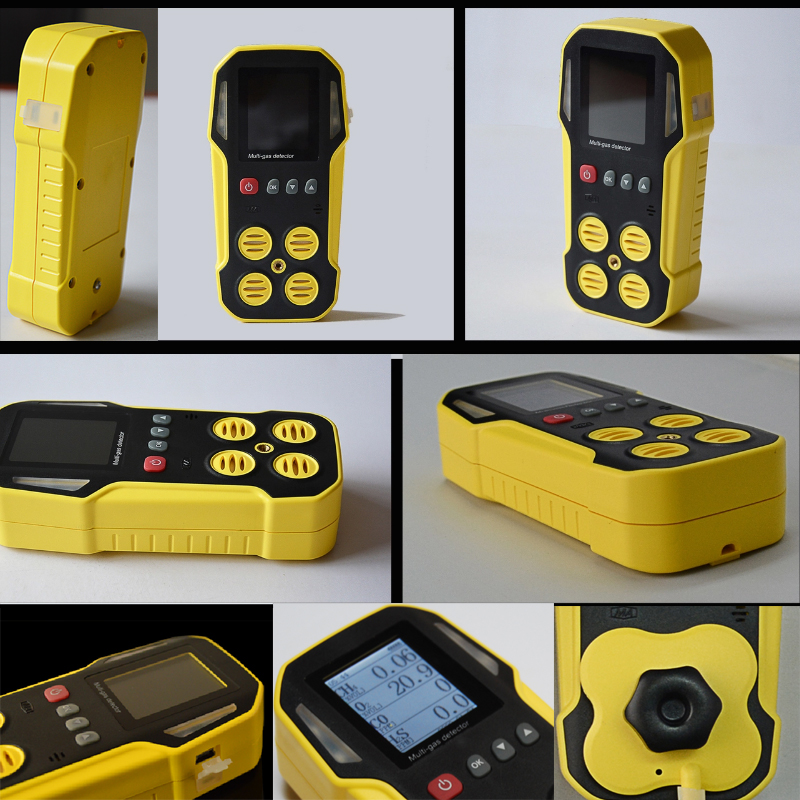

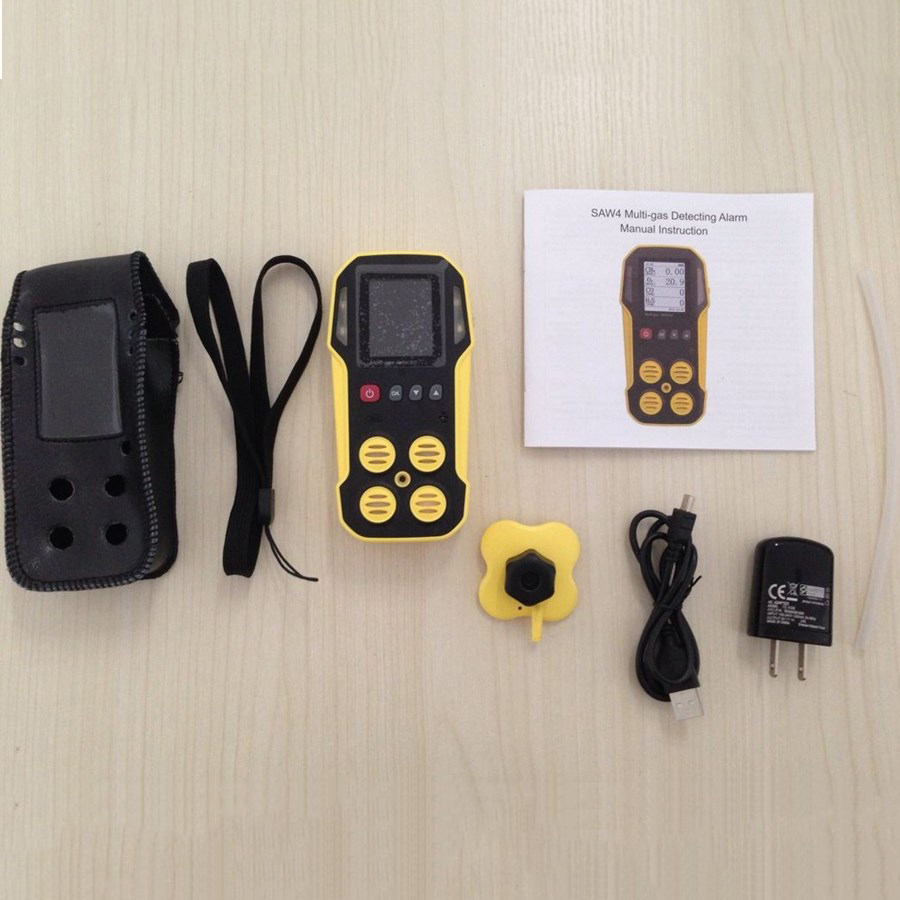

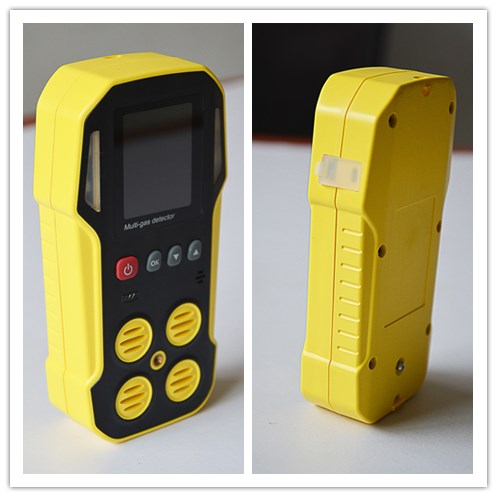

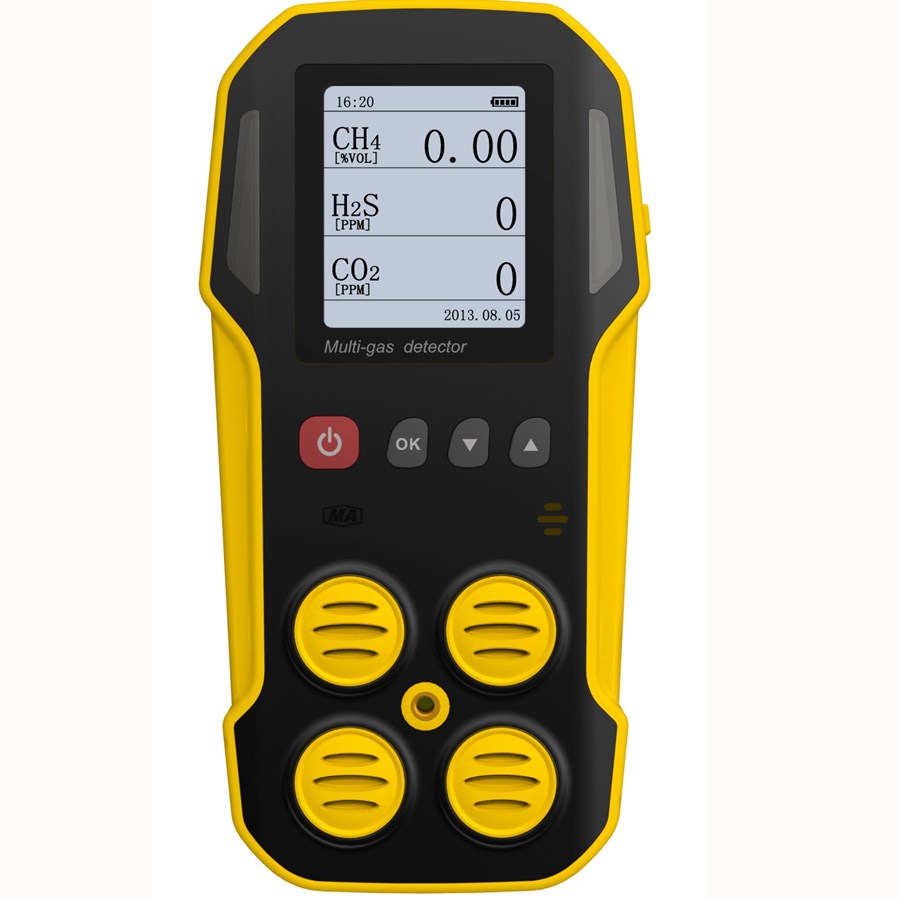

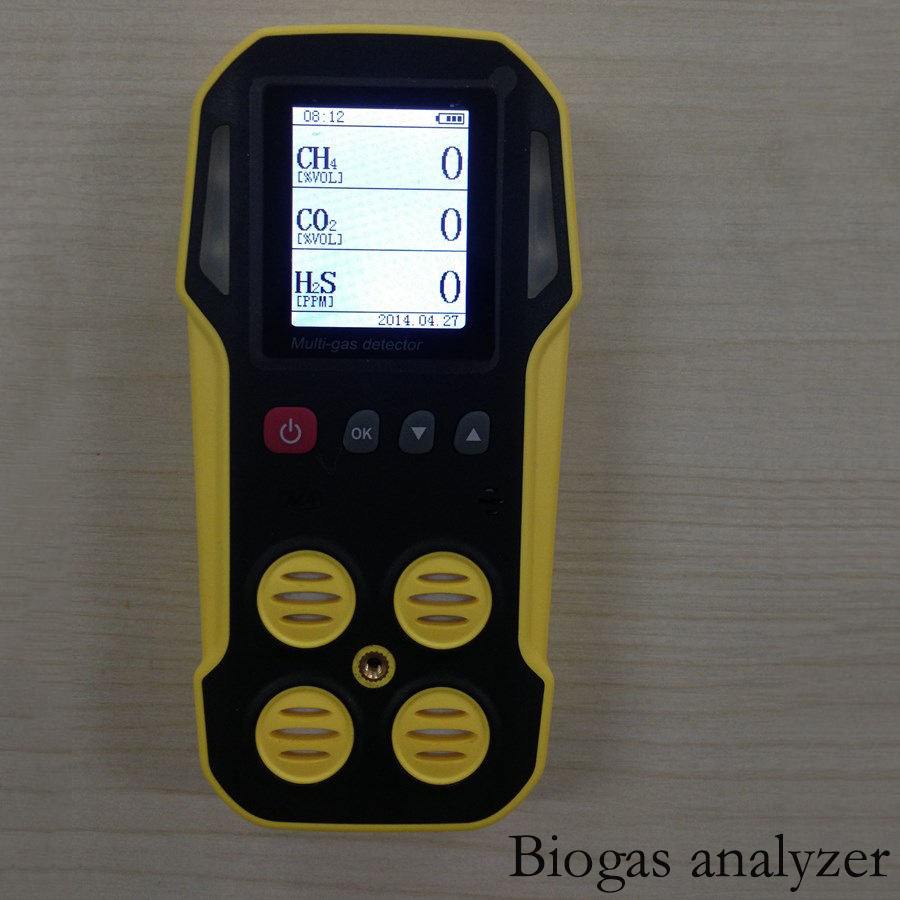

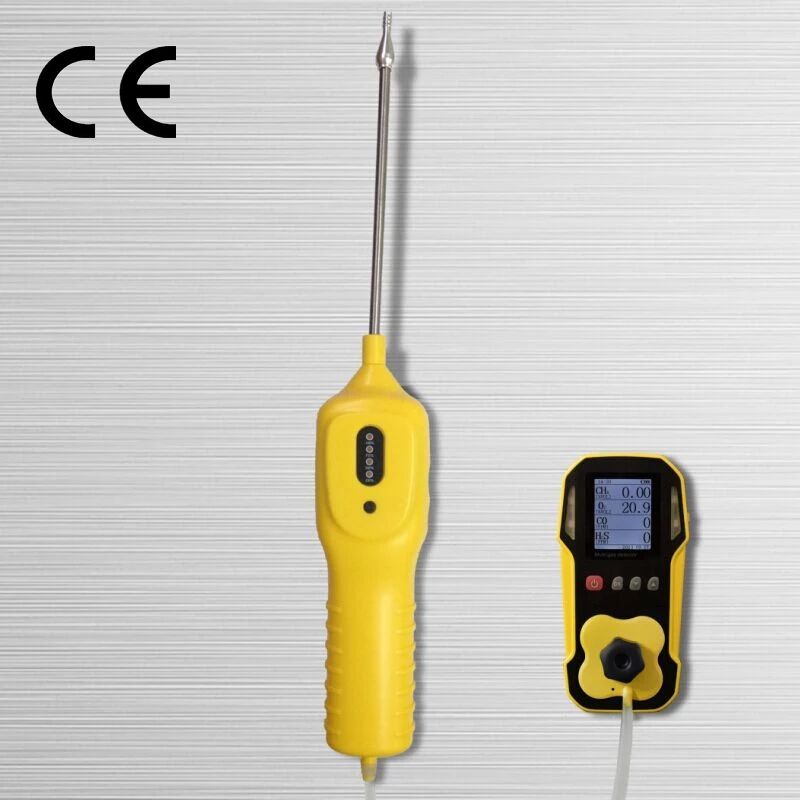

Portable Biogas CH4 CO2 H2S O2 Gas Detecting Monitor with External Air Pump

FOB Price:	1100.00 - 1250.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	By air, by sea both ok. FOB or EXW or CIF all ok for discuss
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China

Quick Details

Brand Name: SA
Weight: 300g
Sampling Method: diffusion
Size: 130*66*30 mm
Alarm type: Sound + Light
Model Number: IRCD4
Case color: Yello + Black
Gas sensors: CH4, CO2, H2S, O2
Sensor type: UK sensors / Infrared and electrochemical
Alarm: High/ Low/ STW/TWA
Gas range: 0-100%VOL for CH4-CO2;H2S IS 0-1000 ppm; O2 is 0.0-30.0%vol
Alarms: Sound, Light
Data logger function: YES ( Optional )
warranty: 1 year

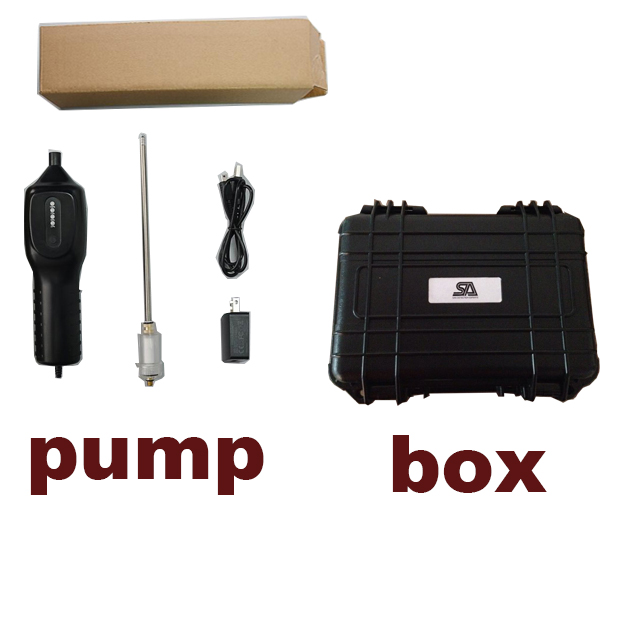

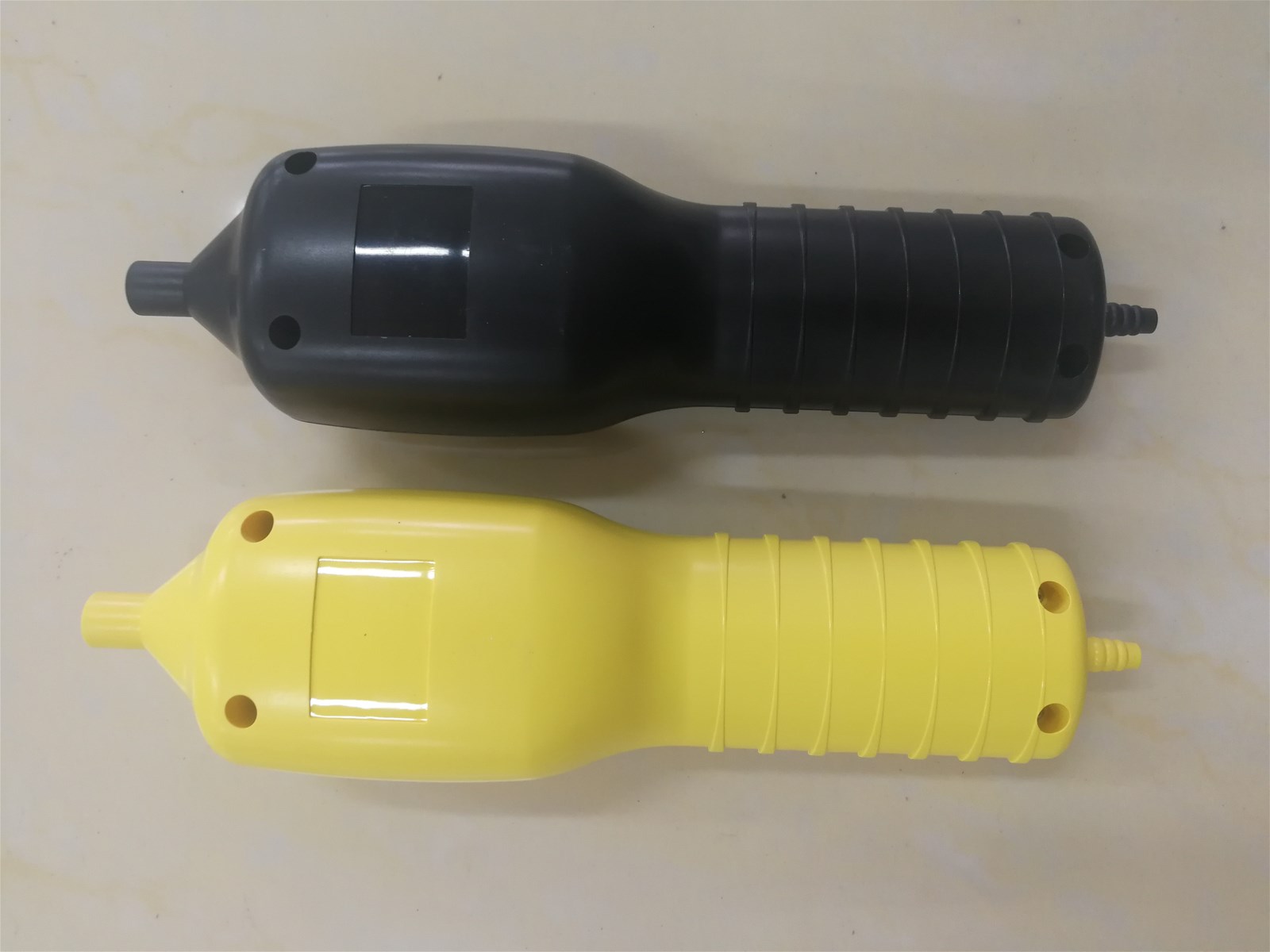

External sampling Pump: yes
Certificate: CE & Rohs & MA, CMC

Specifications

Portable Biogas CH4 CO2 H2S O2 gas detecting monitor with external air pump

1. Technical Specification: ( 1ppm=1X 10^-6)

Technical specification	Parameter
Detecting gas	CH4, CO2, H2S
CH4
Measurement range	(0--100)%Vol
Measurement error	±10%
Respond time	≤70S ( T90 )
Resolution	1%vol
Alarm point	20%vol
CO2
Measurement range	( 0 ~ 100 ) %vol
Measurement error	±10%
Respond Time	≤70S ( T90 )
Resolution	1%vol
Alarm point	20%VOL
H2S
Measurement range	( 0~100)ppm
Measurement error	±10%
Respond time	≤45S ( T90 )
Resolution	1ppm
Alarm point	10ppm

Alarm sound intensity	80dB
Alarm way	Sound, light alarm
Alarm indicator light	Can be visible in the distance of not less 20m
Sensor life	≥5 years( CH4, CO2) ≥2years( H2S )
Working current	80mA
Continuous operating hours	≥13hours
Battery item	PL123450 3.7V/1500mA
Battery short circuit current	2A
Charging time	4-5hours
Protection level	IP54
Working temperature	-25℃~55℃; Short time for -40℃~55℃
Size	1306630(mm)

Main Features of multi Gas detectors :

1. Intrinsically Safe, CE & MA & Ex Certificated

2. Portable, Industrial use, higher Sensitivity and accuracy

3. Imported high quality sensors

4. 4 layers of PCB high quality level

5. Detecting multi gas concentrations Simultaneously

6. Fully configurable alarm Points.

7. High/ Low alarm level is Adjustable; STEL & TWA alarming for toxic gases

8. Advanced MCU control with low power Consumption

9. Visual and Audible Alarm

10. Customized Gas combination,

11. OEM & ODM acceptable. ( Label & Logo printed specially )

Product model	SA-M203Portable multi gas detector	Data logger (optional)	Continuously data logging (1900 data at 1.0 minute configurable Interval )
Sensor type	Infrared, catalytic, electochemical	Charging time	4-5 hours
Size & Weight	130* 66* 30mm/ 300g	Continuous working time	> 12h
Battery	Rechargeable lithium	Working temperature	-25C～+ 55C, short time:-40C～+ 55C
Alarms	LED alarm @≥ 20m Buzzer alarm ≥ 95dB @≥ 30cm Low power alarm	Sensor lifetime	Infrared:≥ 5 years Electrochemical : ≥2 years Catalytic:≥ 1 Year
Charging	by AC adapter or 5V USB port	Ex proof sign	Exibd I
Display	Color LCD/ OLCD	IP degree	IP54
LCD reading	Real-time concentration, battery indicator, date	Approval	Ex, MA, CMC, CE
Backlight	Always on	Sampling	Natural diffusion

Item	Gas name	Chemical Formula
Combustible & Explosive Gas using Catalytic sensors
1	Methane	CH4
2	LEL	LEL
3	Butane	C4H10
4	Acetylene	C2H2
5	Propane	C3H8
Toxic gas & others Using Electrochemical Sensors
6	Hydrogen Sulfide(Sulphide)	H2S
7	Carbon Monoxide	CO
8	Oxygen	O2
9	Hydrogen	H2
10	Chlorine	CL2
11	Nitric Oxide	NO
12	Nitrogen Dioxide	NO2
13	Sulfur Dioxide	SO2
14	Ammonia	NH3
15	Ethylene	C2H4
16	ETO (Ethylene Oxide)	C2H4O
17	Hydrogen Chloride	HCL
18	Hydrogen Cyanide	HCN
19	Hydrogen Fluoride	HF
20	Phosphine	PH3
Top quality with long Lifetime Infrared sensors
21	Methane	CH4
22	Carbon Dioxide	CO2

for different gas combination detector, Just contact with us freely to Know the detailed technical specification.

Portable Biogas CH4 CO2 H2S O2 gas detecting monitor with external air pump

Our Factory:

Certificates:

Portable Biogas CH4 CO2 H2S O2 gas detecting monitor with external air pump

Our Service:

OEM/ODM available:

A. Customer brand(law allowance) can be made on the sticker.

B. Customized gas detection tools are welcome.

C. Customized color box.

D. Any your idea gas detection tool we can help you to design and put it into production

after-sale service:

A.All products will have been strictly Quality Checked before packing.

B.All products will be well packed before shipping.

C.All our products have 1 year warranty.and we sure the product will be free from Maintenance within warranty period.

Portable Biogas CH4 CO2 H2S O2 gas detecting monitor with external air pump
