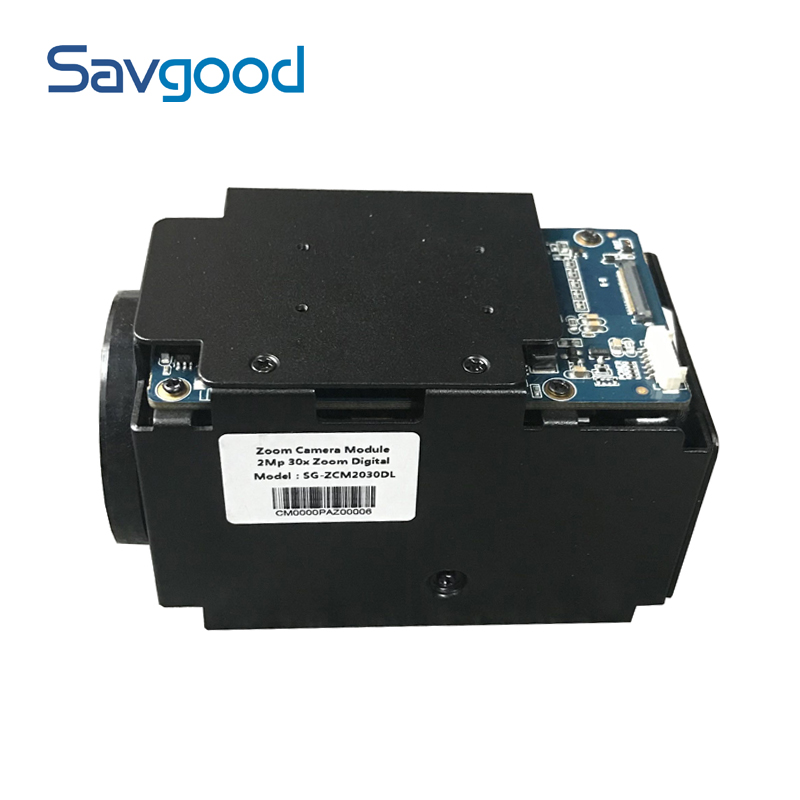

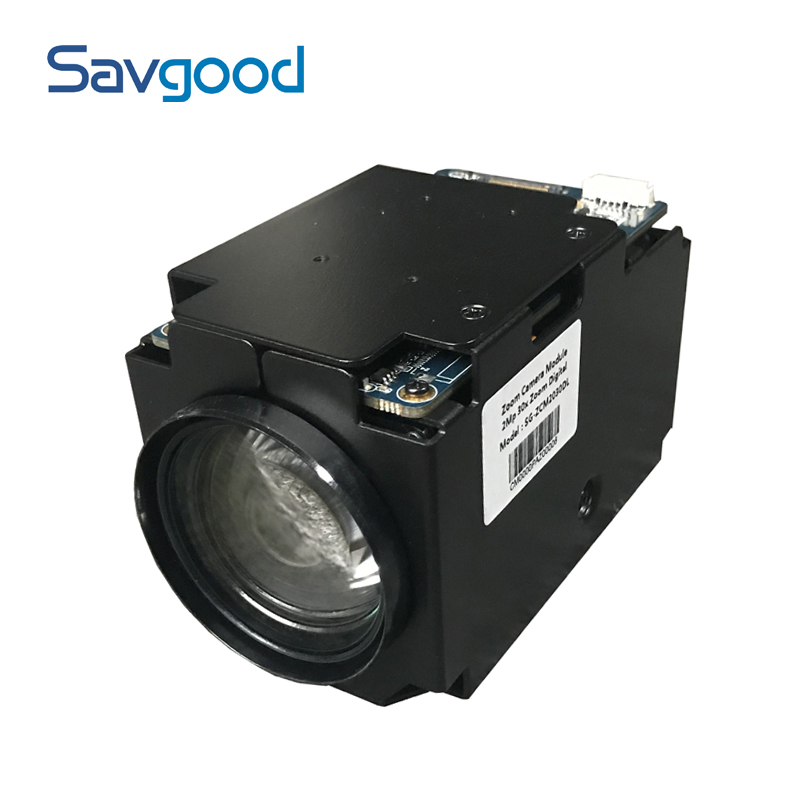

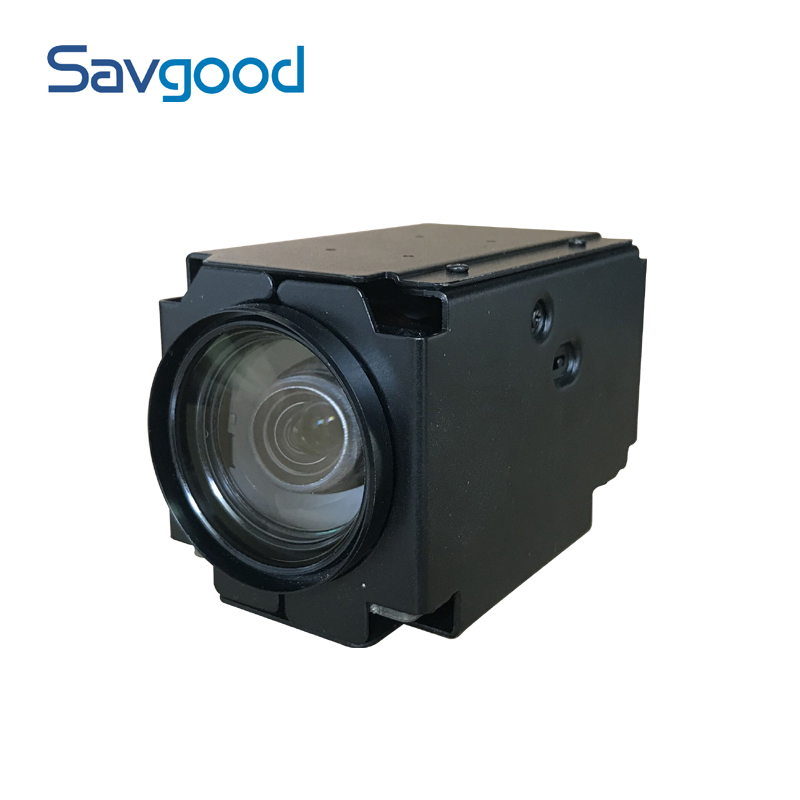

2Megapixel 30x Zoom Starlight Digital LVDS & USB Output Camera Module
| FOB Price: | 202.00 - 234.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | fedex |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | paper box |
Quick Details
- Special Features: AUTO FOCUS
- Technology: Pan / Tilt / Zoom
- Sensor: CMOS
- Type: Digital Camera
- Brand Name: savgood
- Model Number: SG-ZCM2030DL
- resolution: 2Mp
- optical zoom: 30x
- Output: LVDS
- Lens: 4.7-141mm
- sensor: CMOS Sensor
Specifications
SG-ZCM2030DL
- 2Megapixel 30x Zoom Starlight Digital Camera Module
1. Features
> 1/2.8" CMOS Sensor.
> Powerful 30x optical zoom (4.7~141mm).
> Max. 2Mp(1920x1080) Resolution
> Support Electronic Defog
> Accurate focus, high Speed, great image effects, precise color reproduction, excellent night vision with low light effects.
2. Specification
Model |
SG-ZCM2030DL | |
Sensor |
Image Sensor |
1/2.8" CMOS |
Effective Pixels |
Approx. 2.13Megapixels | |
TV Line |
≥1100TVL | |
Max. Resolution |
19201080 | |
Lens |
Focal Length |
4.7mm141mm, 30x Optical Zoom |
Aperture |
F1.5~F4.0 | |
Close Focus Distance |
1.0m~1.5m (WideTale) | |
Angle of View |
H: 60.5°~2.3°(N~F) | |
Resolution |
50Hz: 25/50fps@2Mp(19201080) 60Hz: 30/60fps@2Mp(19201080) | |
S/N Ratio |
≥55dB (AGC off, Weight on) | |
Minimum Illumination |
Color: 0.001Lux/F1.5; B/W: 0.0001Lux/F1.5 | |
EIS |
Electronic Image Stabilization (ON/off) | |
Electronic Defog |
on/off | |
Day/Night |
Auto(ICR) / Color / B/W | |
Zoom Speed |
Approx 3.5s(Optical Wide-Tele) | |
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
Electronic Shutter Speed |
1/1~1/30000s | |
Backlight Compensation |
Support | |
Wide Dynamic Range |
DWDR | |
High Light Control(HLC) |
Support | |
Digital Zoom |
4x | |
2D Noise Reduction |
Support | |
3D Noise Reduction |
Support | |
Communication Interface |
LVDS Interface | |
Focus Mode |
Auto/Manual/Semi-automatic | |
Operating Conditions |
(-30°C~+60°C/20% to 80%RH) | |
Storage Conditions |
(-40°C~+70°C/20% to 95%RH) | |
Power Supply |
DC 12V±15% (Recommend: 12V) | |
Power Consumption |
Static power: 3.5W, Sports Power: 4.5W | |
Dimensions(L*W*H) |
Approx. 96mm*52mm*58mm | |
Weight |
Approx. 300 | |

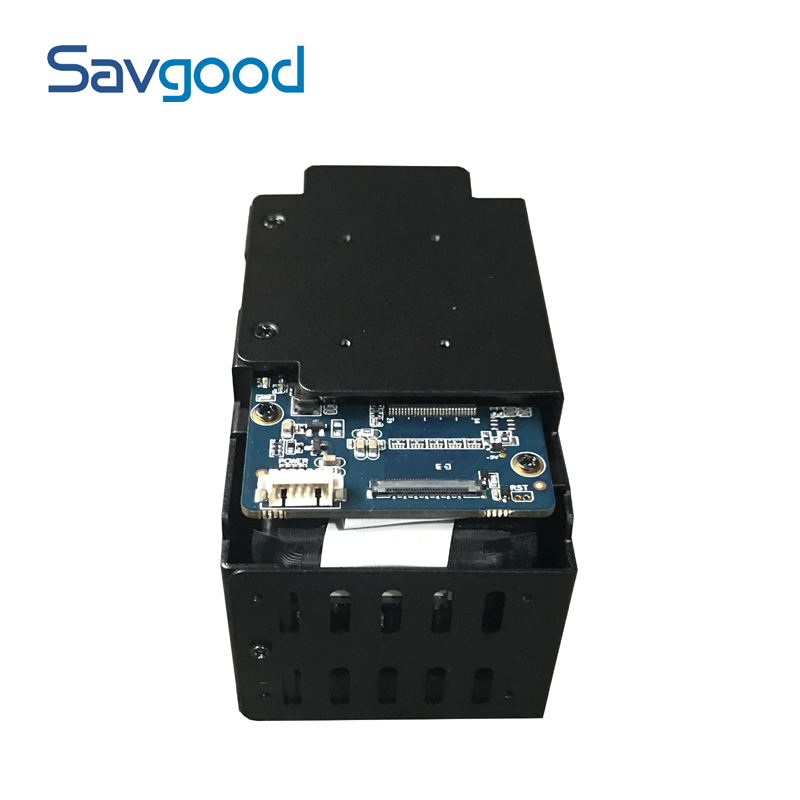

Port |
Number |
PIN Name |
Description |
(1) 6PIN Power Serial Port |
1 |
DC_in |
DC Power input ( DC +9V+12V) |
2 |
GND |
Ground PIN | |
3 |
RXD1 |
RS-232 Port, ISP Receive Signal (3.3V), Pelco Protocol | |
4 |
TXD1 |
RS-232 Port, ISP Transmit Signal (3.3V), Pelco Protocol | |
5 |
RXD0 |
RS-232 Port, ISP Receive Signal (3.3V), Visca Protocol | |
6 |
TXD0 |
RS-232 Port, ISP Transmit Signal (3.3V), Visca Protocol | |
(2) 30PIN Digital LVDS Interface |
1 |
TXOUT3+ |
|
2 |
TXOUT3- |
||
3 |
TXOUTCLK+ |
||
4 |
TXOUTCLK- |
||
5 |
TXOUT2+ |
||
6 |
TXOUT2- |
||
7 |
TXOUT1+ |
||
8 |
TXOUT1- |
||
9 |
TXOUT0+ |
||
10 |
TXOUT0- |
||
11 |
GND |
Ground PIN | |
12 |
UART1_TX |
VISCA Protocol: RS-232 Camera Transmit Signal, the same to TXD0 of 6PIN Port. SG Camera is CMOS 3.3V,Camera Is 5V. | |
13 |
UART1_RX |
VISCA Protocol: RS-232 Camera Receive Signal, the same to RXD0 of 6PIN Port. SG Camera is CMOS 3.3V, Camera Is 5V. | |
14 |
DC_in |
DC Power input (DC+7V+12V) | |
15 |
DC_in | ||
16 |
DC_in | ||
17 |
DC_in | ||
18 |
DC_in | ||
19 |
GND |
Ground PIN | |
20 |
GND | ||
21 |
GND | ||
22 |
GND | ||
23 |
NC |
SG Camera: Reserved PIN; Camera: Ground PIN | |
24 |
NC | ||
25 |
NC |
||
26 |
CAM_RESET |
Input Signal, Reserved power reset Signal SG Camera: 3.3V; Camera: 1.8V | |
27 |
CVBS_OUT |
Analog Video Signal | |
28 |
NC |
SG Camera: Reserved PIN; Camera: Y, Pb, Pr Signal | |
29 |
NC | ||
30 |
NC |
