Home  >Products Catalog > air compressor dryer > Industrial Factory Price OEM Design Air Compressor Dryer

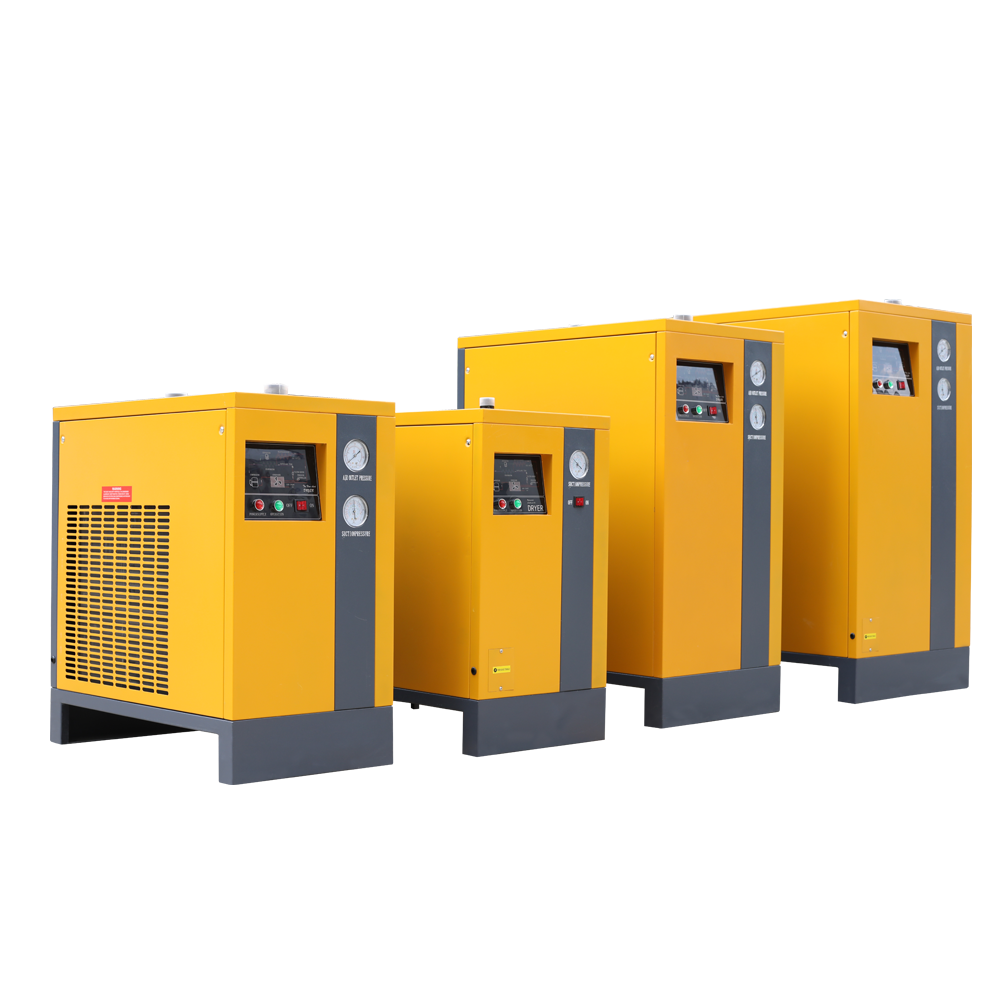

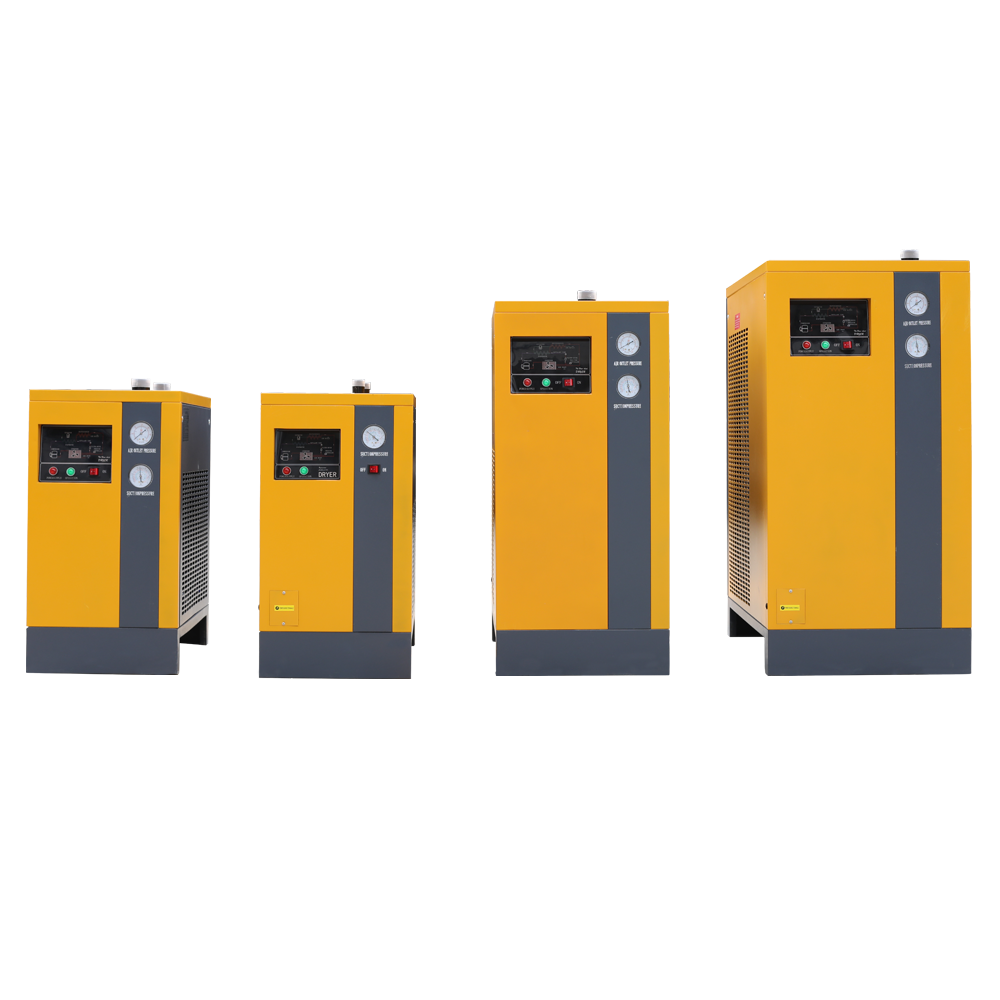

Industrial Factory Price OEM Design Air Compressor Dryer

FOB Price: 1439.00 - 1589.00 USD/Set
Supply Ability: 1,000 Set(s) per Month
Shipping: GuangZhou port
Payment Terms: L/C, D/A, D/P, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Wooden Crate,Full Closed Woode Case.1pcs/each

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1Year
  • Brand Name: AH
  • Type: Freeze Drying Equipment
  • Condition: New
  • Certification: ISO,CE,ASME
  • Weight: 202 kg
  • Dimension(L*W*H): 1200*600*1270 mm
  • Power(W): 2.57 kw
  • Voltage: 220v/1ph/50hz(or customized)
  • Model Number: AH-100G

Specifications

Industrial Factory Price OEM Design Air Compressor Dryer

Industrial Factory Price OEM Design Air Compressor Dryer
Product Information
Technical specification of Air Dryer



Refrigerated Compressed Air Dryer
Model  Ambient temperature Compressed air temperature at inlet Cooling model Air flow (m3/
min)
Air flow (CFM) Compressor power
(KW)
Air inlet pressure Loss of pressure
(Mpa)
Dew point Maximum pressure Pipe diameter Electricity
(V/ph/Hz)
AH-5SG  25°c ≤60°c Air-Cooling 1.0 35 0.32 0.4--1.0
(Mpa)
≤0.02 2--5
(°c)
13KG R1" 220/1/50
AH-10SG 1.5 53 0.43 R1" 220/1/50
AH-15SG 2.0 71 0.51 R1" 220/1/50
AH-20SG 2.5 88 0.73 R1 1/2" 220/1/50
AH-30SG 3.8 134 0.92 R1 1/2" 220/1/50
AH-50G 6.5 230 1.38 R1 1/2" 220/1/50
AH-60G 7.5 265 1.38 R1 1/2" 220/1/50
AH-75G 10.5 371 1.78 R2 1/2" 220/1/50
AH-100G 13.8 488 2.57 R2 1/2" 220/1/50
AH-120G 16.0 565 2.57 R2 1/2" 220/1/50
AH-150GF 20.0 707 2.94 R3" 380/3/50
AH-200GF 28.0 989 4.4 R3" 380/3/50
AH-250GF 30.0 1060 4.8 PN1.0DN80 380/3/50
AH-300GF 35.0 1237 5.5 PN1.0DN100 380/3/50
AH-400GF 45.0 1590 7.35 PN1.0DN100 380/3/50
Features of Air Dryer



Strong cooling ability
with high power supply refrigeration media compressor which can pre-cool it and exchange the heat and refrigerate again; therefore the air will 30% more than dryer than any other factory products.



High seperation effection
High effective separator which can filtrate more than 99% of the water,oil and the solid impurity in the compressed air.



Water outlet stable and reliable
Adopting the electron to outlet water automatically using valve and metal netting and its specially holding water method ensuring the reliability of the water outlet



High Inlet temperature
with the pre-cooling system, using thickest copper heat-exchanging spare parts, could take up to 80 degrees hot air.



Low limitation temperature

Using the high functioning evaporation system, it could make the heat-exchange in large scale, and ensure the long staying and thorough heat-exchanging of the compressed air in the evaporation system. and also make the more compressed air into water and drying it.



Automatic controlling
High effective refrigeration system which automatically control, adjusting high or low temperature and never stop working. It could always maintain the best performance.



Stable functioning
Combination of Japanese,Denmark and other famous brand accessories to ensure the product is maintained high quality.


Our Service



after-sale Service

Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.

Warranty: One year for the whole machine Genuine spare parts will be provided with best price.

over board engineer service is available.



Special Customized Service

1) Full OEM

Quantity: at least 5 pcs

in this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.

2) Half OEM

Quantity: no limit

under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.

3) Logo OEM

Quantity: no limit

Only the logo will be changed to yours, and no extra fee will be charged.



Overseas Engineer Service

We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
