RGNF-80B Tube Filling & Sealing Machine
| FOB Price: | 30000.00 - 40000.00 USD/Set |
|---|---|
| Payment Terms: | L/C |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Type: Sealing Machine
- Brand Name: RIGAO
- Packaging Material: Plastic
- Packaging Type: tube
- Application: Chemical,Food,Machinery & Hardware,Medical
- Type: Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001-2008 certificate
- Weight: 1000kgs
- Dimension(L*W*H): 2390*1140*2180mm
- Model Number: RGNF-80B
- Power: 1.1
- Driven Type: Mechanical
- Automatic Grade: Automatic
- Condition: New
Specifications
the following example is for you reference.
1.Brief Introduction:

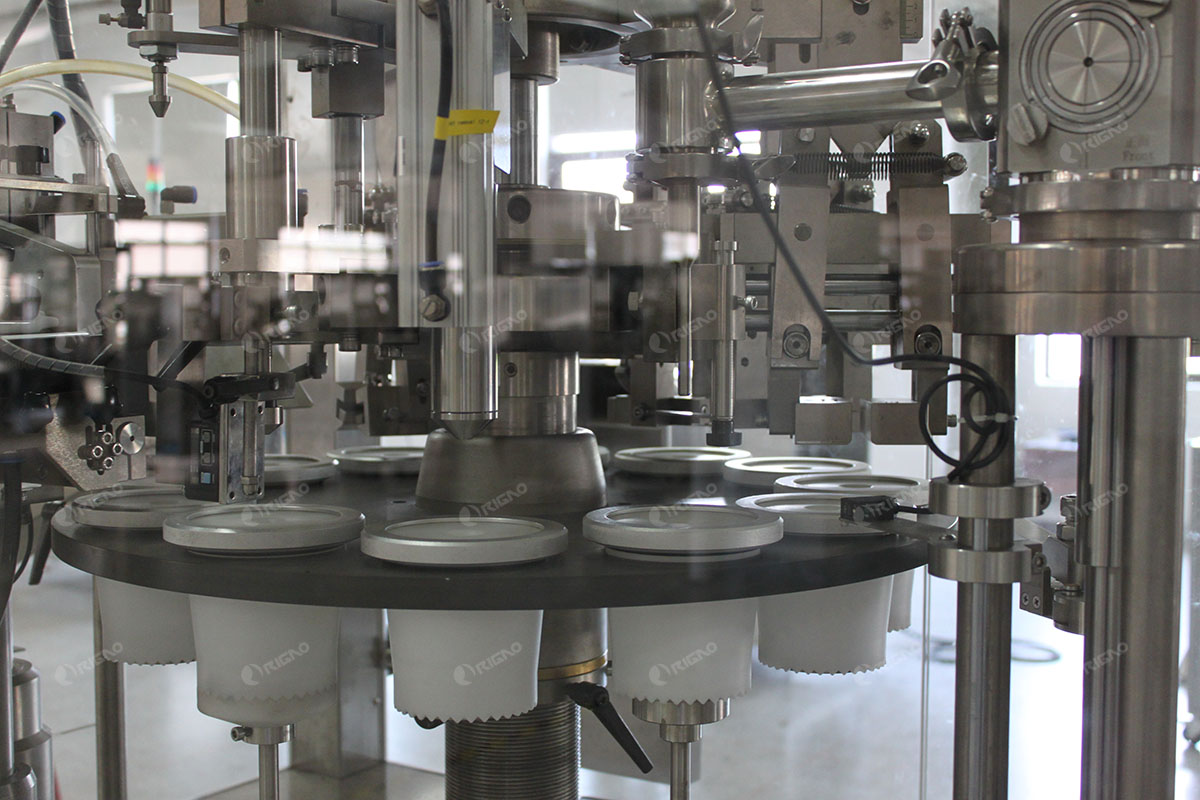

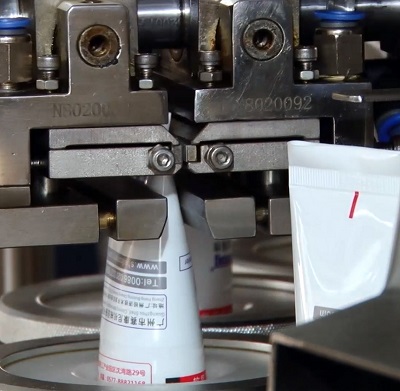

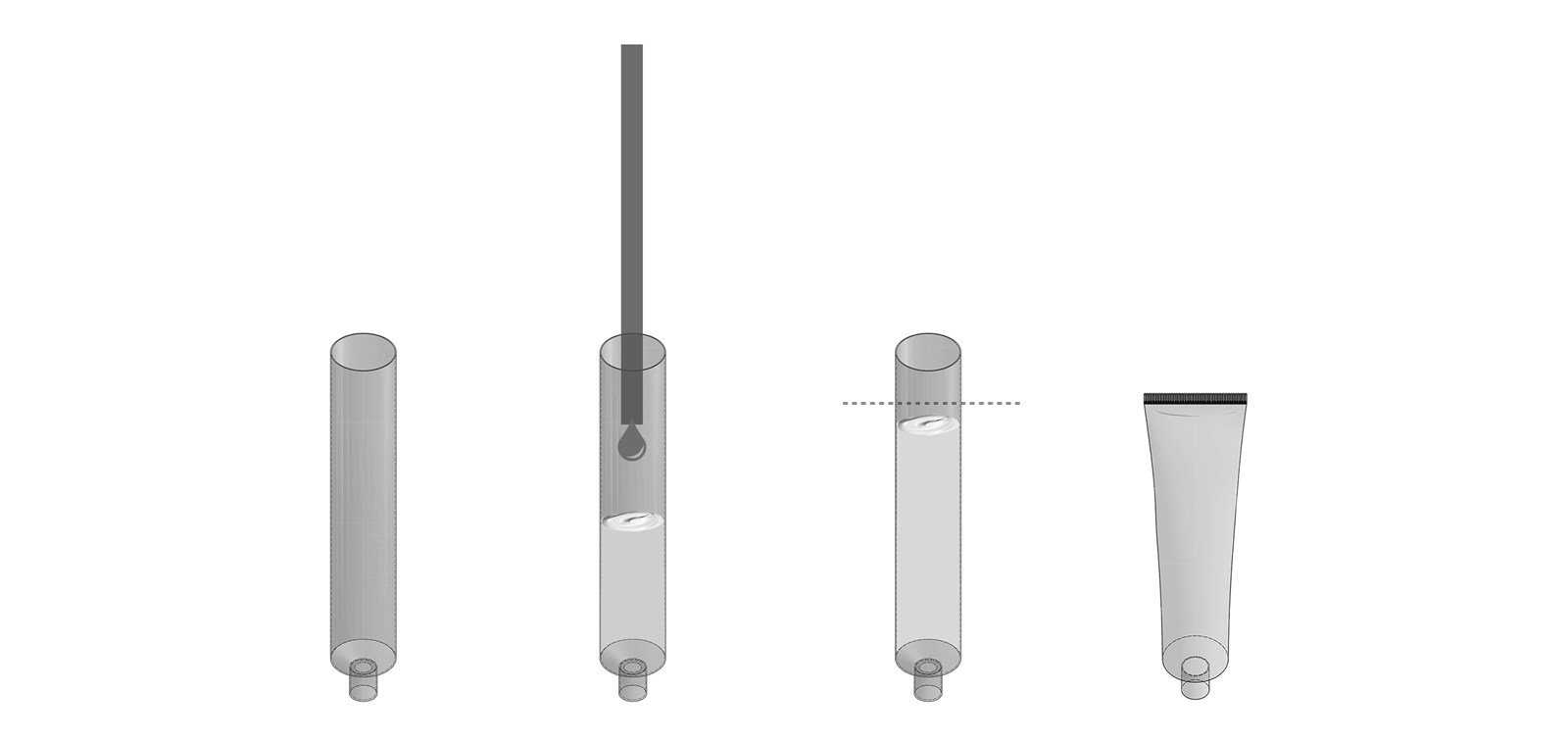

Tube feeding and Tube washing, marking identification, filling, hot air sealing, codeprinting trimming and ejecting out the tube conducted by a fully auto control system.
Tube washing and feeding are conducted pneumatically, accurate and reliable.
Auto picketage affected by photoelectric inductance.
the materials contacting part is made of 316L stainless steel, clean, sanitary and conforming to GMP for medicine manufacture.
with safety device, the machine is shut down when the door is opened and no tube no filling. Overload protection provided.
2.Techincal parameters: Filling volume 5-250ml(tube) Filling accuracy ≤±1% Capacity 1800-4800(tubes/h Adjustable) Tube diameter 10- 50mm Tube length 210mm (Max. Length) Hopper volume 40 L Power 380/220V(Optional) Compressed Air 6MPa Equipped motor 1.1 Kw Convulsions 0.37Kw Hot air 3.0Kw Total power 4.47Kw Dimension 2390*1140*2180mm L*W*H Weight (Approx) 1000kgs
