Shanghai Clirik Machinery Co., Ltd.
China Manufacturer with main products: Grinding Mill, Crusher, Raymond Mill, Feeding, Conveyor, Auxiliary Equipment |
Peridot/Olivine Powder Grinder/Pulverizer
| FOB Price: | 42000.00 - 180000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | sea port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: clirik
- Weight: 150
- color: as request
- Model Number: HGM
- color: as request
Specifications
to processing Peridot/Olivine or to make Peridot/Olivine into fine powder, there is Peridot/Olivine powder grinder/pulverizer. There are five types of Shanghai CLIRIK Peridot/Olivine powder grinder/pulverizer, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.

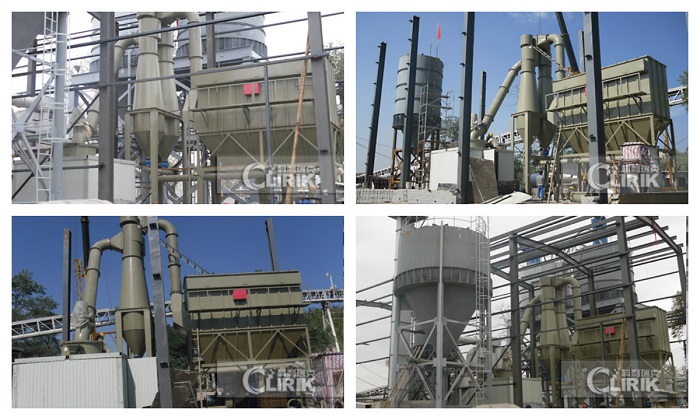

Production Line Configuration of Peridot/Olivine powder grinder/pulverizer:
the whole set HGM Peridot/Olivine powder grinder/pulverizer consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems
Working Principle of Peridot/Olivine powder grinder/pulverizer:
the main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. after crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
