Futai HK Co., Ltd.
China Manufacturer with main products: RF Connector, Antenna, Cable Assembly |

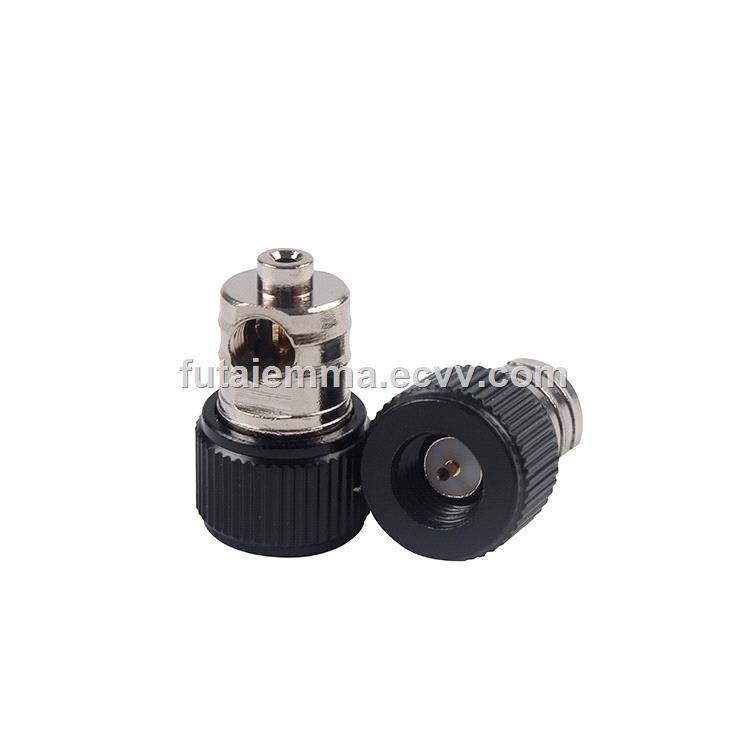

SMA Antenna Connector SMA RF Coaxial Connector
| FOB Price: | 0.50 - 0.70 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | foshan |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 100 Pcs/Bag |
Quick Details
- Gender: Male
- Type: SMA
- Brand Name: FUTAI
- Color: Black
- Model Number: FT-Connector-021Rubber
- Product name: SMA antenna connector
- Pins: 1P
- Material: Copper
- Website: www.futai8.com
- Sample: welcome ask sample for testing
Specifications
SMA Antenna Connector SMA RF Coaxial Connector
the SMA series connectors for use with semi-rigid and flexible RF Cables,are used for microwave applications requiring high performance.They're characterized by their small size and high reliablity,and be inter-changeable with the same-type connectors of abroad.
Specifications:
Model |
FT-Connector-021Rubber | |
Major Technical Characteristics | ||
Type |
SMA-C-KY1.5-021Rubber | |
Impedance |
50Ω | |
Frequency Range |
DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force |
≥0.28 N | |
Insertion Loss |
≤0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f | |
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
Durability(mating) |
≥500(cycles) | |
Cable |
for Rubber ANTENNA | |
Material & Plating | ||
Body |
Brass |
Gold plated |
Pin contact |
Brass |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Insulator |
PTFE | |
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's Requirements.
Pictures
about Us
Futai HongKong Co., Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas. Our subsidiary Jinrei Communication co., ltd is located in are three catagories:, RF Connector, Cable Assembly and Antenna.
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on).
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on).
Cable assemblies are includGaoqiao, Danyang City,Jiangsu.
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
