Shenzhen Superda Machine Co

China Manufacturer with main products: Rack Roll Forming Machine, Superdamc.Com, Floor Deck Roll Forming Machine, Cable Tray Roll Forming Machine, Electronic Cabinet Frame Machine,...

Home >Products Catalog > Roll Former > Multimedia Signal Box Roll Forming Machine Manufacturer

Multimedia Signal Box Roll Forming Machine Manufacturer

FOB Price:	60000.00 - 80000.00 USD/Piece
Supply Ability:	20 Piece(s) per Year
Shipping:	by sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Container

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Automation: Automatic
Power: Electric
Brand Name: Superda
Condition: New
Extra Services: Machining
Material / Metal Processed: Carbon Steel
Raw Material: Steel Bar
Machine Type: Roll Forming Machine
Model Number: YX-255
Warranty: 1 year
Lifespan: 20 years

Specifications

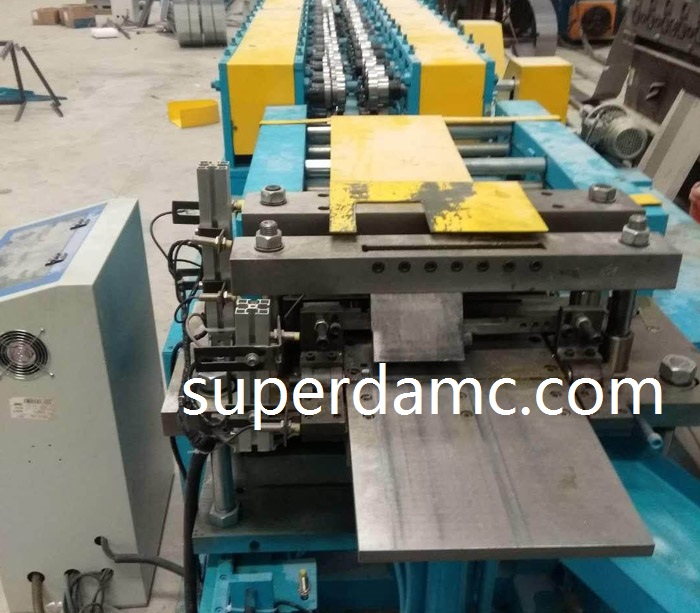

Autmoatic electric production line

Roll forming machine for production multimedia signal box.

Electric multimedia box roll forming machine for production different size cabinet

Shenzhen Superda Machine Co., Ltd design Roll Forming accuracy
A. Shear length tolerance: ≤±0.3mm/m
B. Width tolerance: ≤± 0.3mm
C. Sickle bending: ≤2mm/m
D. Burr: ≤0.1mm (new cutting edge cuts carbon steel plate in reasonable clearance)
E. Height tolerance: ≤±0.3mm
above tolerance with flat edgeless one-stage steel coil as a prerequisite.
Surface quality: the surface of the finished product after processing does not add any processing defects.
Multimedia signal box roll forming machine manufacturer
7. Other parameters of the equipment
A. Power supply: 380V/50HZ/3PH, can customized as per user country.
B. Installed capacity: about 31kw.
C.Forming speed: 0-13m/mind.
D.Shearing method: Servo front shear
E. Drive motor: Unwinder motor 4KW.
leveling motor 2.2KW.
Hydraulic punching cutting and hydraulic tensioning motor (two sets) 11KW+7.5KW. Forming main engine 5.5KW.
Servo motor 2KW
F. Floor area (approx.): length 24m width 3m (host specification 7mX1.7m)
G Production line direction: from left to right (on the console facing the unit).
H. Equipment color: (customer selection)
I. Superda fire house box equipment design can meet 12 hours of continuous production
J. Operating environment
1: Power supply voltage: 380V ± 10% / three-phase four-wire,frequency: 50HZ Total power: about 31KW2: Environment Temperature: 0-40 ° C, relative humidity: 60-95% RH.
