CNC Butt Welding Machine for Plastic Pipes

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

the following example is for you reference.

1.Brief Introduction:

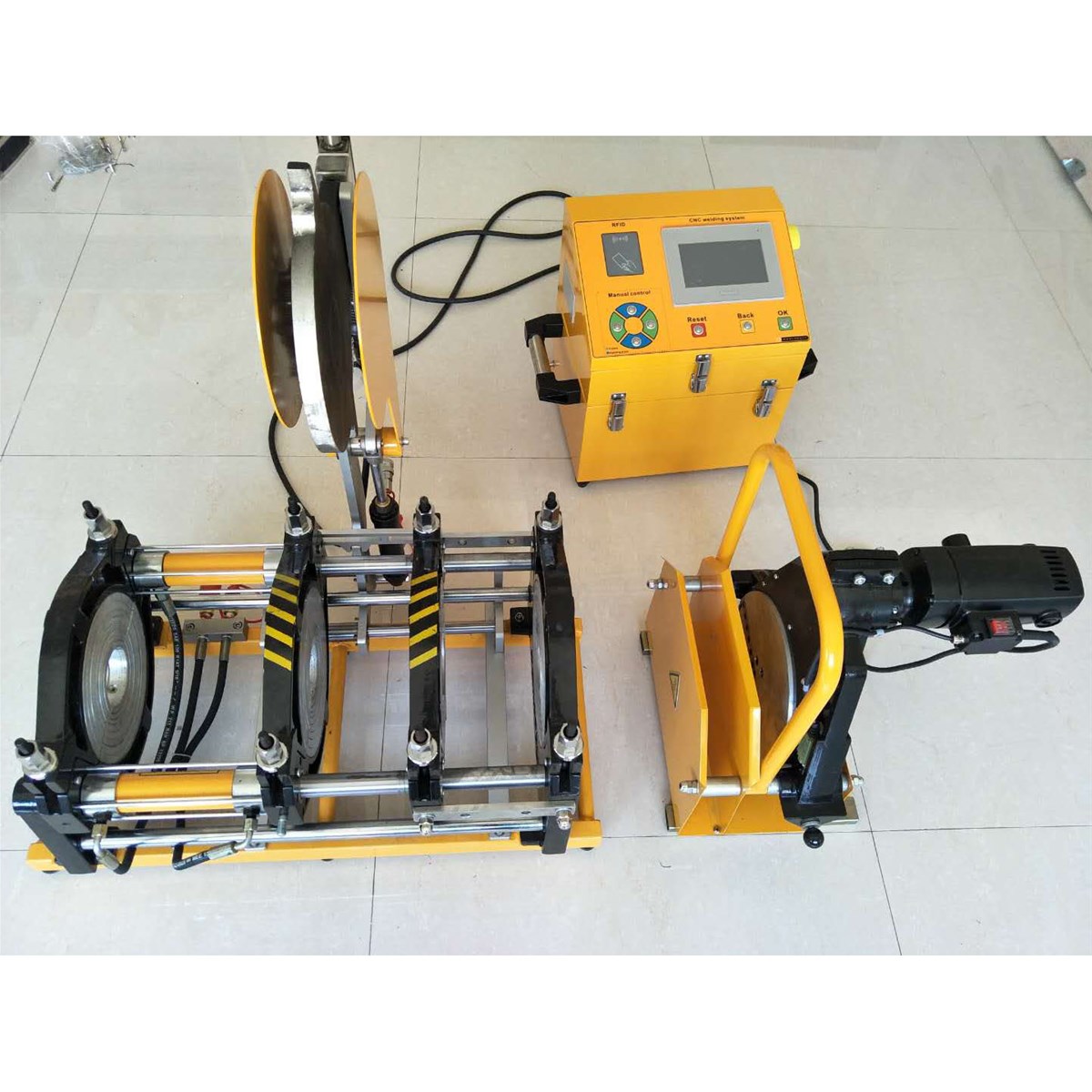

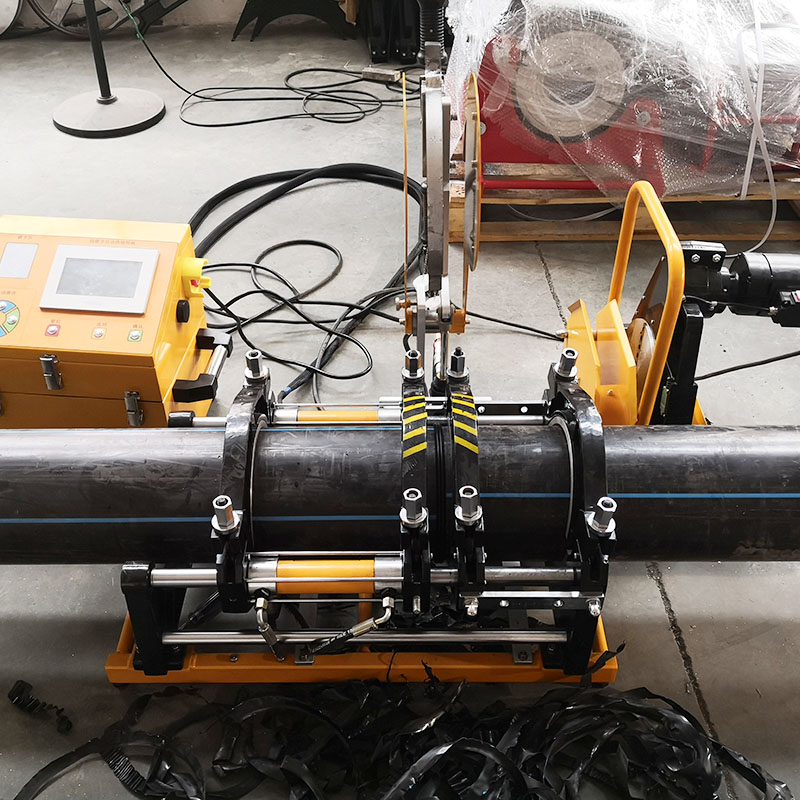

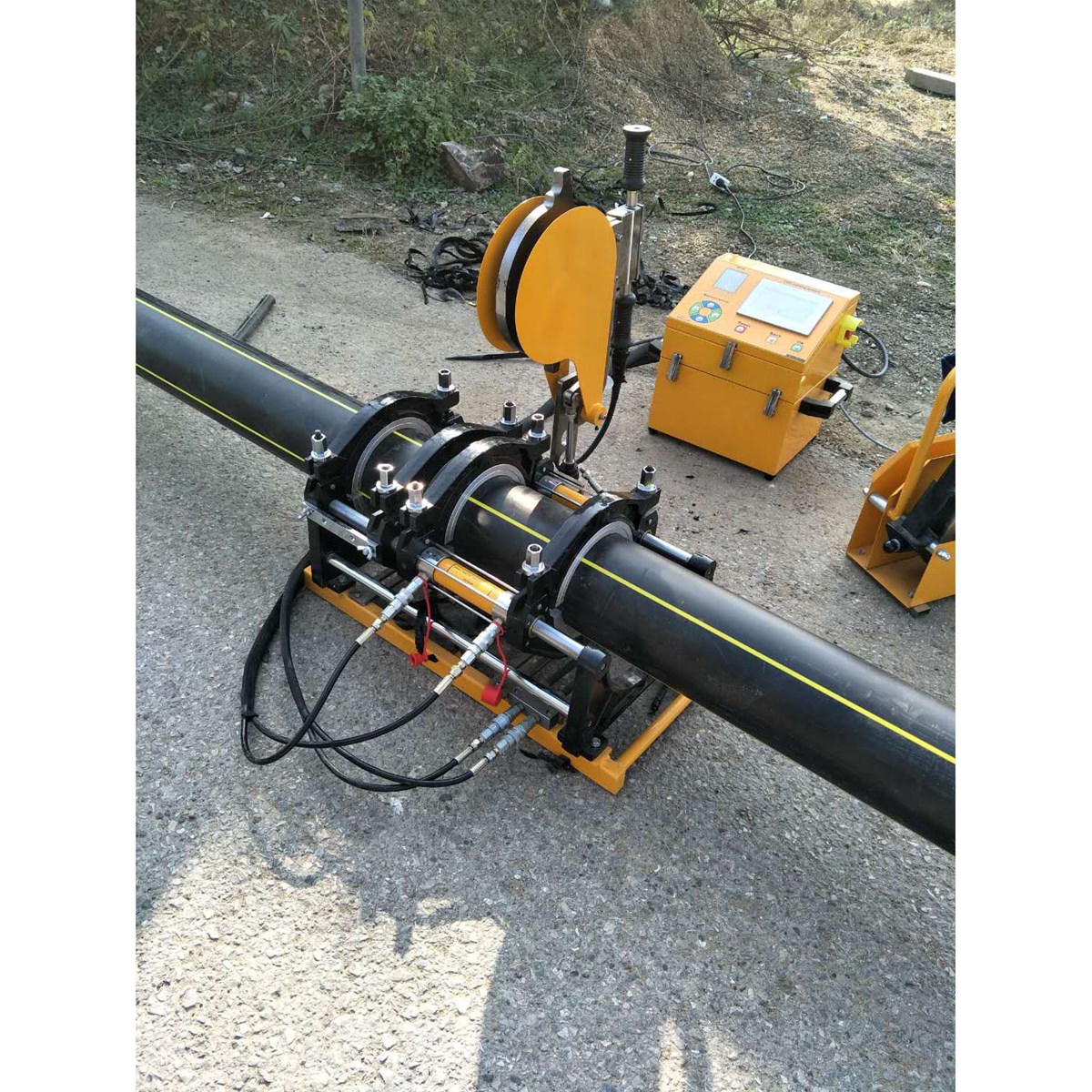

CNC SERIAL 160, 250 and 315 HYDRAULIC BUTT WELDIG MACHINE is suitable for HDPE/PP pipes and fittings of gas pipe line.

the standard machine includes:

Main frame& heating plate

German hydraulic seal;

Italian STUCCHI quick connector and quick release hoses

High quality Aluminum castings allows for lower weight without compromising strength and performance.

Heating plate is automatically separated from the pipe at the end of the heating cycle.

Automatic ejection for heating plate by hydraulic cylinder

CNC Hydraulic unit

German accumulator

Integrated type hydraulic valve

Electro hydraulic pump with controls

Panasonic electric motor

Pro-face display screen

GPS positioning system

Facing tool

Install limit protection switch to prevent accidents, blade can be used on both sides, the material is6CrW2Si.

2.Techincal parameters:

Model	Welding Range	Total power	Voltage/Frequency	N.W
CNC 315/90	90mm~315mm,SDR9	4.95KW	1 phase 220Volts/240Volts, 50/60Hz	223KGS
	Standard layer clamps: 315x280, 280x250, 250x225, 225x200, 200x180, 180x160, 160x140, 140x125, 125x110, and 110x90 OPTIONAL: 2-piece clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 160x140, 160x125, 160x110, 160x90mm
	Narrow clamps: 315x280, 315x250, 315x225, 315x200, 315x180, 315x160, 315x140, 315x125, 315x110, 315x90mm wheeled trolley aluminum or steel stub end device

3.Performance features:
