Shanghai Clirik Machinery Co., Ltd.
China Manufacturer with main products: Grinding Mill, Crusher, Raymond Mill, Feeding, Conveyor, Auxiliary Equipment |

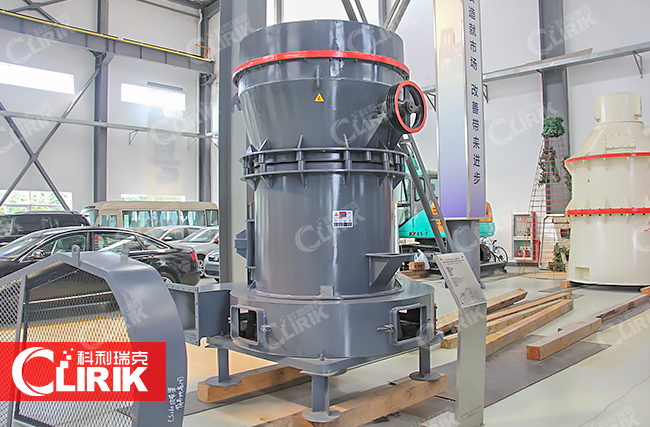

6 Roller Grinding Mill: MTM1600 Raymond Roller Mill
| FOB Price: | 10000.00 - 55000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | shanghai port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO
- Brand Name: clirik
- Type: Raymond Mill
- Condition: New
- Warranty: 12months
- Weight: 150kg
- Dimension(L*W*H): 18*4.6*8.6m
- Model Number: YGM
- Capacity(t/h): 0.2-45t/h
- Power(W): 132000
- Motor Type: AC Motor
- color: as request
Specifications
Six roller grinding mill: MTM1600 raymond roller mill:
1. Environmental protection.
2. Produces super fine powder,high efficiency
3. ISO
Six roller grinding mill: MTM1600 raymond roller mill is used to grind the barite, limestone, kaolin, ceramics, and slag, etc, whose Mohs hardness is below 9.3. They are non-inflammable and non-explosive stuff.The product size is adjustable in the range of 80-425 meshes. Compared to Raymond grinding mill, it has higher grinding power, and because it's advantage designing, it costs much less lower.
Specifications of Six roller grinding mill: MTM1600 raymond roller mill:
1. Rollers number: 6
2. Perfect installation
3. Delivery time:7-15days
4. Output size:0.613-0.033mm can be adjustable
Features of Six roller grinding mill: MTM1600 raymond roller mill:
1.Special designed, above the plum flower frame, setting a pressure device weighted 1500kg-2000kg. the capacity increased by 10-30% under same power, the grinding pressure from grinding device to the material increased by 800-1500kgf, the fineness of final product can be up to 1000 mesh.
2.the machine is applicable to various kinds of materials, can be used for grinding all kinds of materials less than 9.3 mohs hardness.
3.the dedusting effect is completely up to national standards.
4.the grinding device adopts the high quality and efficient processing technology, multilevel seal guarantee the good sealing effect.
5.the change cycle of grinding roll and grinding rill is long; eliminating the disadvantages of centrifugal crusher that change cycle of vulnerable parts is short.
6.the grinding device use multilevel seal, the seal effect is good.
Specification of Six roller grinding mill: MTM1600 raymond roller mill:
2. Produces super fine powder,high efficiency
3. ISO
Six roller grinding mill: MTM1600 raymond roller mill is used to grind the barite, limestone, kaolin, ceramics, and slag, etc, whose Mohs hardness is below 9.3. They are non-inflammable and non-explosive stuff.The product size is adjustable in the range of 80-425 meshes. Compared to Raymond grinding mill, it has higher grinding power, and because it's advantage designing, it costs much less lower.
Specifications of Six roller grinding mill: MTM1600 raymond roller mill:
1. Rollers number: 6
2. Perfect installation
3. Delivery time:7-15days
4. Output size:0.613-0.033mm can be adjustable
Features of Six roller grinding mill: MTM1600 raymond roller mill:
1.Special designed, above the plum flower frame, setting a pressure device weighted 1500kg-2000kg. the capacity increased by 10-30% under same power, the grinding pressure from grinding device to the material increased by 800-1500kgf, the fineness of final product can be up to 1000 mesh.
2.the machine is applicable to various kinds of materials, can be used for grinding all kinds of materials less than 9.3 mohs hardness.
3.the dedusting effect is completely up to national standards.
4.the grinding device adopts the high quality and efficient processing technology, multilevel seal guarantee the good sealing effect.
5.the change cycle of grinding roll and grinding rill is long; eliminating the disadvantages of centrifugal crusher that change cycle of vulnerable parts is short.
6.the grinding device use multilevel seal, the seal effect is good.
Specification of Six roller grinding mill: MTM1600 raymond roller mill:
Type |
Roller |
Max. Feeding size(mm) |
Fineness of product(mm) |
Output (t/h) |
Power of machine(KW) |
Size(mm) | ||
No. |
Dimension(mm) |
Height(mm) | ||||||
YGM7815 |
3 |
260 |
150 |
15 |
0.613-0.033 |
1-3 |
18.5 |
4300*3500*5100 |
YGM8314 |
3 |
270 |
140 |
20 |
0.613-0.033 |
1.2-4.6 |
22 |
5300*4100*5200 |
YGM9517 |
4 |
310 |
170 |
25 |
0.613-0.033 |
2.1-5.6 |
37 |
7100*5900*7900 |
YGM4121 |
5 |
410 |
210 |
30 |
0.613-0.033 |
2.8-10.5 |
75 |
9200*7250*9700 |
MTM1600 |
6 |
440 |
270 |
35 |
0.613-0.033 |
5-20 |
132 |
12550*5700*8350
|
