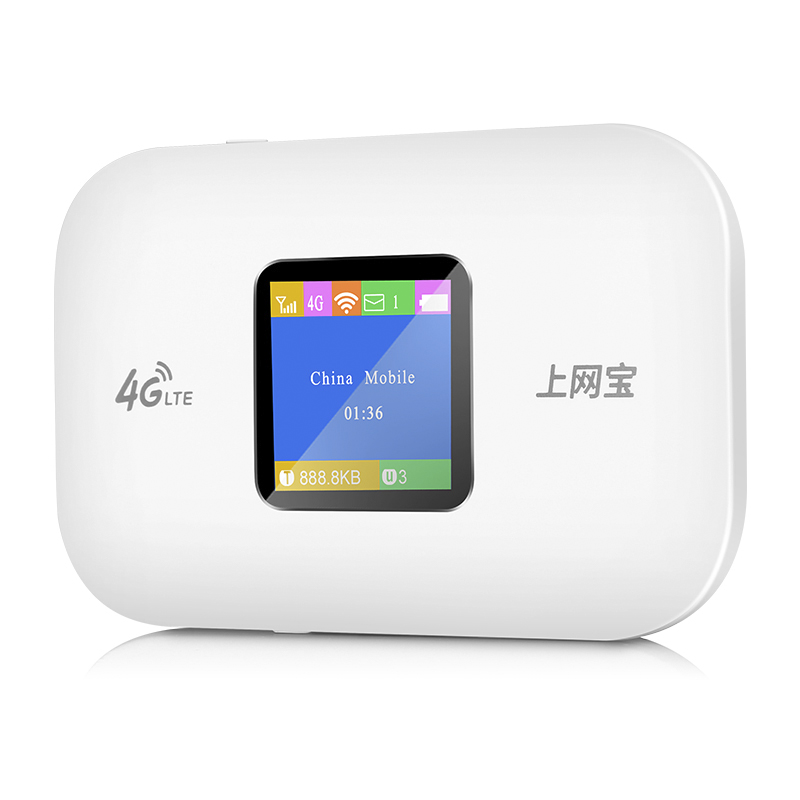

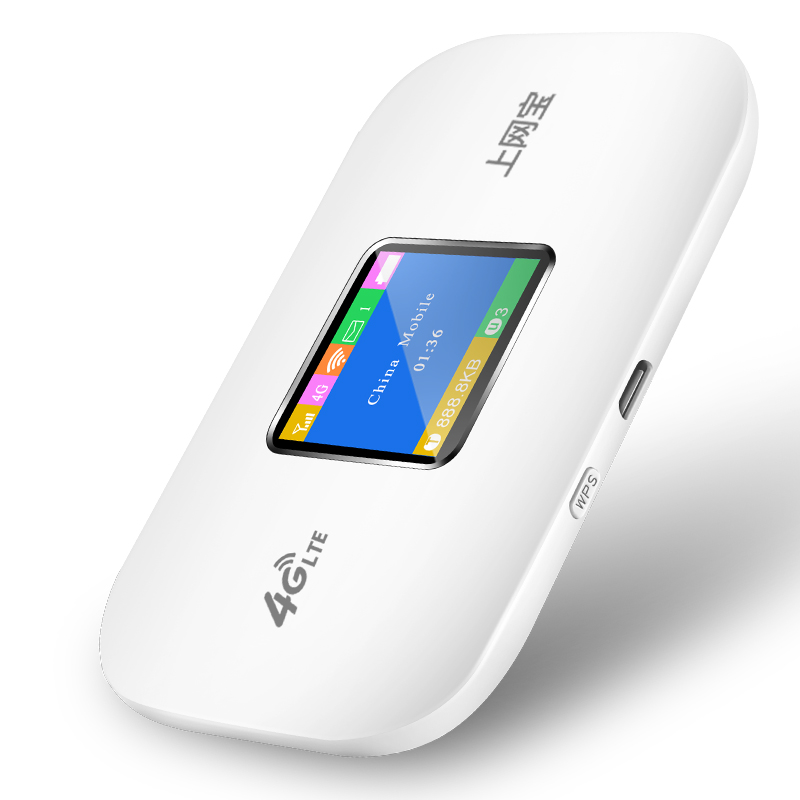

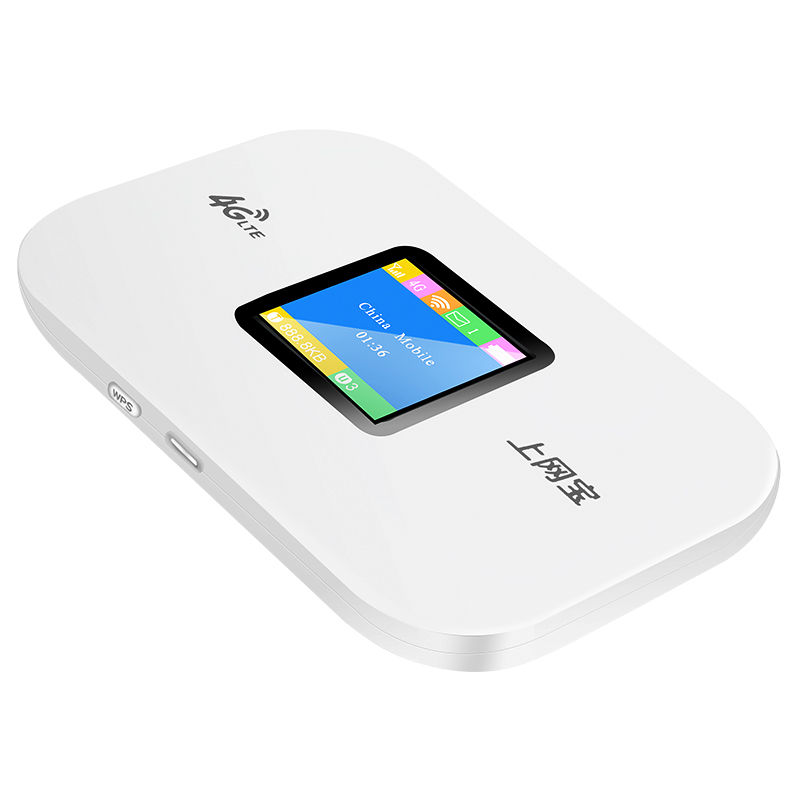

BM01 Dosyu OEM Portable 4G LTE MIFI Portable Pocket Outdoor WiFi Hotspot Router

Specifications

Specifications
PCBA Name L02HA1
TDD-LTE: /
FDD-LTE: 1,3,8,18,19
TD-SCDMA: /
UMTS: 1,8
EDGE/GPRS: /

WAN
RF Capability
LTE Chipset Marvell 1802 cat4
LTE Channel Bandwidth 1.4/3/5/10/15/20 MHz
Modulation
Downlink QPSK/16-QAM/64-QAM
Uplink QPSK/16-QAM
LTE Authentication EPS-AKA
Adaptive Modulation and Coding Supported
MIMO support MIMO 2x2
Idle Mode Supported
Sleep Mode Supported
Idle Mode Signaling Reduction (ISR) Supported
Power Level
TDD-LTE Power Class 3(23 +/-3dBm)
FDD LTE Power Class 3(23 +/-3dBm)
TD-SCDMA Power Class 2(24 +1/-5dBm)
UMTS Power Class 3(23 +/-2dBm)
EDGE Power Class E2(GSM850/900:33dBm;DCS/PCS:30dBm)
GPRS Power Class E2(GSM850/900:27dBm;DCS/PCS:26dBm)
Sensitivity
TDD LTE -94 dBm(20MHZ)
FDD LTE -93 dBm(20MHZ)
TD-SCDMA -108 dBm
UMTS -106 dBm
EDGE GSM850/900:-98dBm;DCS/PCS:-98dBm
GPRS GSM850/900:-101dBm;DCS/PCS:-99dBm
Data Rate
TDD-LTE 3GPP R9,Category 4, DL 150Mbps  UL  50Mbps
FDD-LTE 3GPP R9,Category 4, DL 150Mbps  UL  50Mbps
TD-SCDMA 3GPP R7  DL 2.8Mbps  UL 2.2Mbps
UMTS 3GPP R7  DL 21.6Mbps  UL 5.76Mbps
EDGE/GPRS
EGPRS Class12 DL 237kbps  UL 118Kbps
GPRS Class12  DL 85.6kbps UL 42.8kbps
LAN
WiFi info
WLAN Mode: 802.11b/g/n
Frequency Band: 2.4GHz
WLAN Channel supported:1-13
Antenna Type: Internal
Supported Security: WEP64 WEP128 WPA-PSK WPA2-PSK
WiFi MIMO: 1x1
Power Level
WiFi IEEE 802.11b >13dBm
WiFi IEEE 802.11g >11dBm
WiFi IEEE 802.11n >10dBm
Sensitivity
WiFi IEEE 802.11b(11M) -76dBm@ 8%BER
WiFi IEEE 802.11g(54M) -65dBm@ 10%BER
WiFi IEEE 802.11n(72.2M) -64dBm@ 10%BER
Data Rate
WiFi IEEE 802.11b 11/5.5 Mbps
WiFi IEEE 802.11g 54/48/36/24/18/12/9/6 Mbps
WiFi IEEE 802.11n 72.2/65/58.5/52/39/26/19.5/13/6.5 Mbps;
System
2G/3G/4G setup
Network Selection:
Manual, Auto
Setup by user
Interoperability: TDD-LTE & TD-SCDMA, TD-SCDMA & GSM, TDD-LTE & UMTS, FDD-LTE & TD-SCDMA, FDD-LTE $ UMTS, UMTS & GSM
SMS:
SMS over SGs Func at LTE
SMS's receiving and reading
APN setup: APN setup and revise
PIN Func: PIN:Save, revise, lock,unlock
DM: DM(Now support CMCC DM)
Modem Func: Connect to PC by USB
Automatically connect reconstructed: Can automatically reconnect to network after off-network in data using
WiFi setup
Protocol:
Max users 10
DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address;
Support client list: Displays all the DHCP server to obtain IP address of the host, including MAC address, IP address obtained
Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting
Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WiFi function on/off, and the SSID broadcast on/off
Provides WEP, WPA-PSK, WPA2-PSK, WAPI encryption methods, etc.
