Home >Products Catalog > IP Cam > 1080P HD 2MP Mini Network IP Pinhole Camera WiFi, Support the Standard ONVIF Protocol, Compatibility

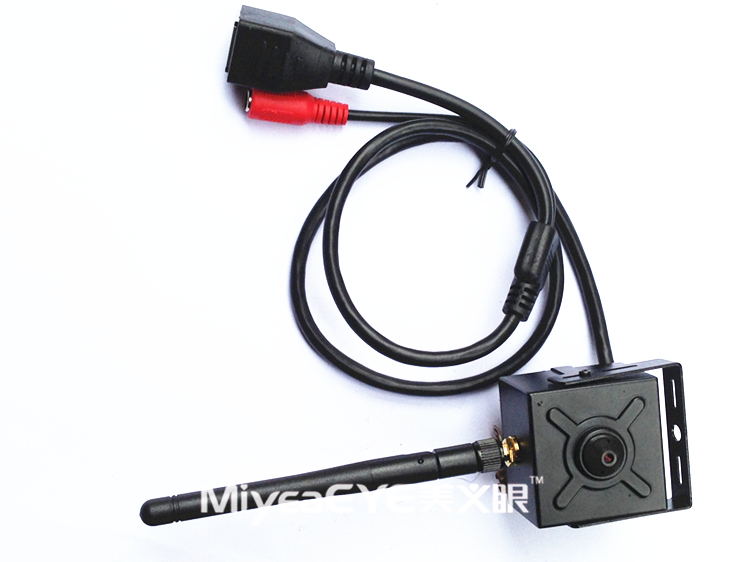

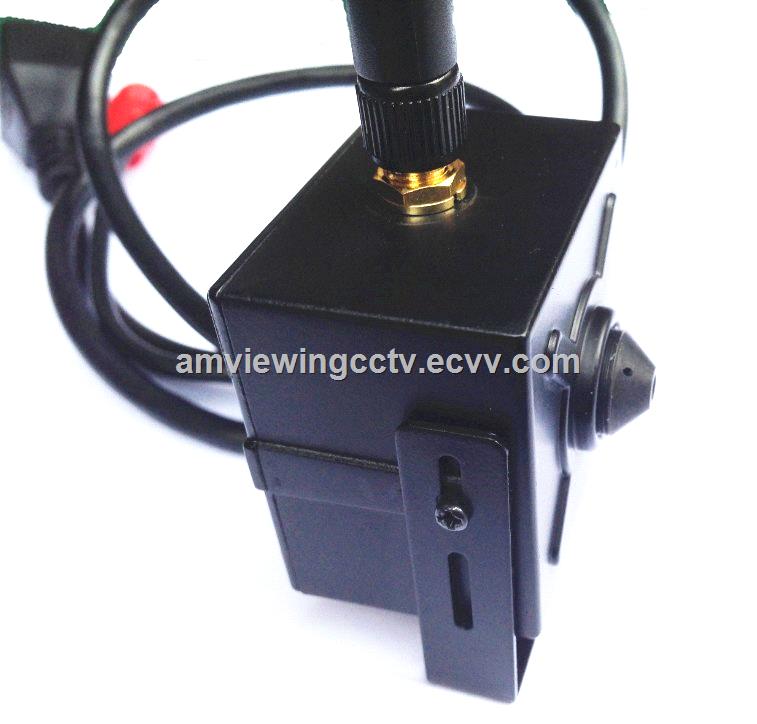

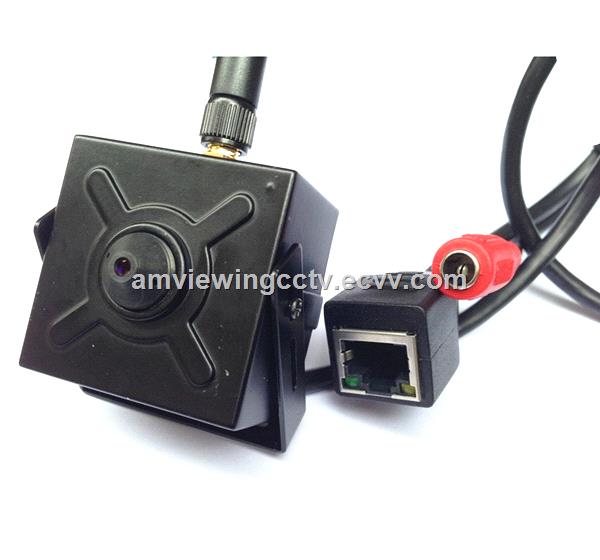

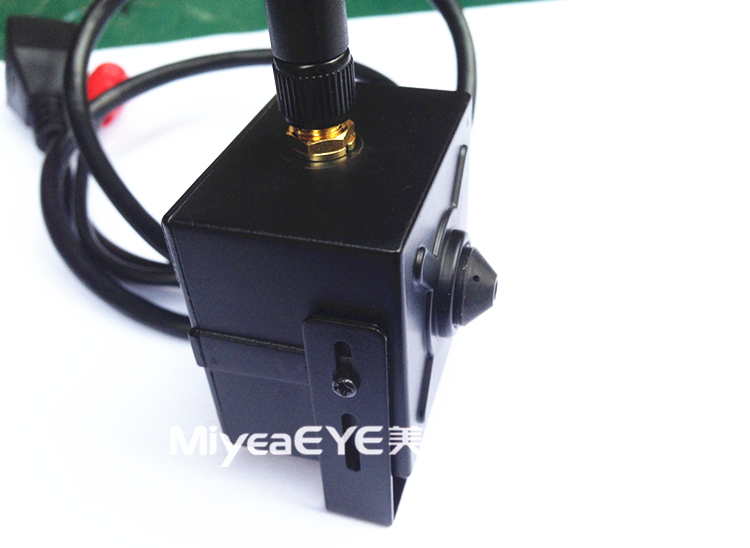

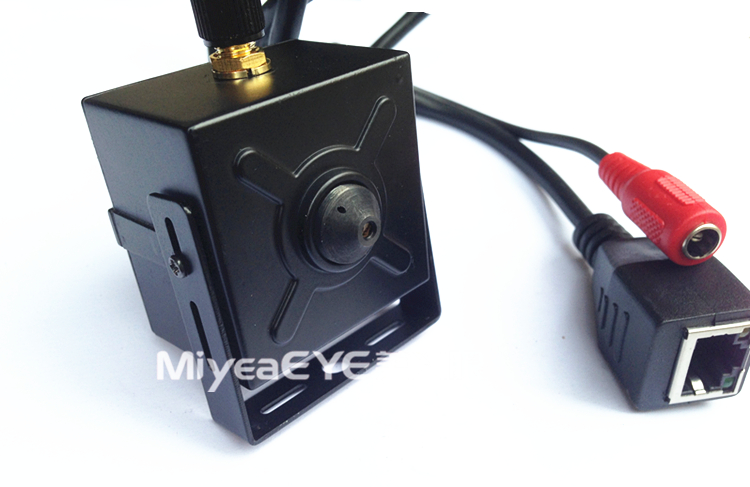

1080P HD 2MP Mini Network IP Pinhole Camera WiFi, Support the Standard ONVIF Protocol, Compatibility

FOB Price:	1.00 - 49.69 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	2-6 work days for samples;7-20 work days for bulk order
Payment Terms:	T/T, Western Union, PayPal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Color Box,Neutral Packing,Export Carton

Quick Details

Special Features: WIFI
Technology: NetWork
Sensor: CMOS
Type: Digital Camera
Brand Name: Miyeaeye
Style: Mini Camera
Model Number: WMIP402CP4-1080
Pixel: 2MP
Resolution: 1080P
Lens: MP Pinhole lens
Camera Size: 36x36mm/40x40mm

Specifications

1080P Mini Pinhole IP WiFi Camera

A, 38X38mm standard design, easy assembly;
B, Provide free operating level CMS platform software, easy to manage;
C, full support for mobilephone, WAN transmission, easy to monitor;
D, easy to independent development;
E, support the standard ONVIF protocol, compatibility;

Item No.

WMIP402CP4-1080

Main Processor

High performance main chip

Image sensor

1/3 inch CMOS

Effective Pixels

1920(H)*1080(V)

Day Night function

Support IR-CUT switch

Lens

2MP high quality pinhole lens(lens optional)

Minimum Illumination

0. 01Lux, 0Lux with IR

S/N Ratio

50dB

Gain Control

auto

White Balance

auto

Electronic Shutter

auto

Video compression standard

H. 264

Maximum video resolution

Main stream: 1920*1080,auxiliary Stream: 352*240

Video frame rate

Main stream(1920*1080@30fps), auxiliary Stream(352*240@30fps)

Video bit rate

256k~6MbpsBit rate adjustable

Video interface

1ch composite analog video output, BNC(1.0Vp-p, 75)

/

Audio compression standard

ADPCM

Audio bit rate

32kbps

Audio input/output

1/1ch

/

Wired network

1ch 10/100M Ethernet, RJ45 interface

Network protocol

HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, DDNS, PPPOE, IPv4, UPnP, NTP

Access Protocol

Support ONVIF(optional)

Power supply

Support DC12V/POE power supply

Consumption

< 7W

Configuration interface

Power supply, RJ45 interface
