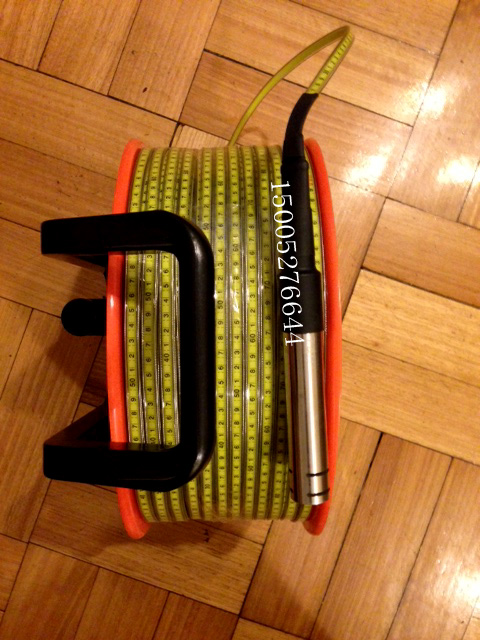

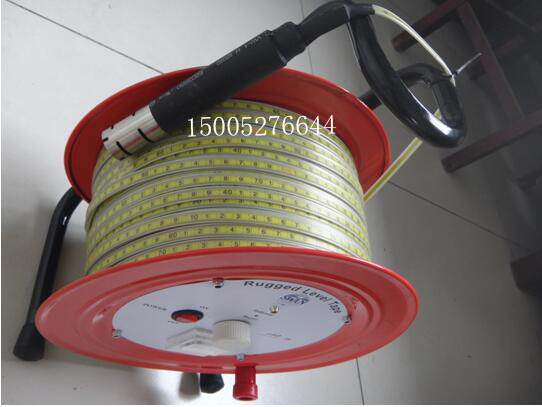

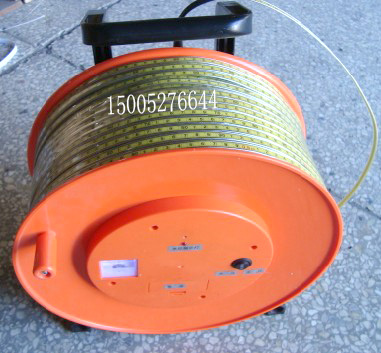

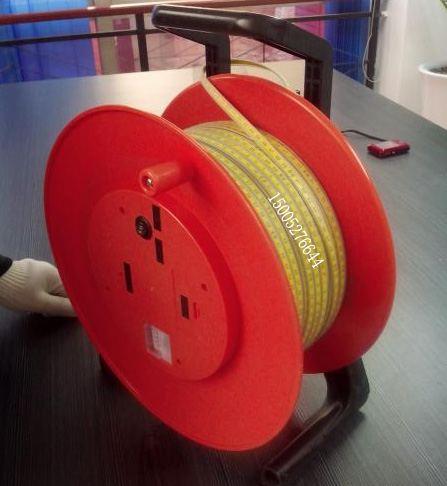

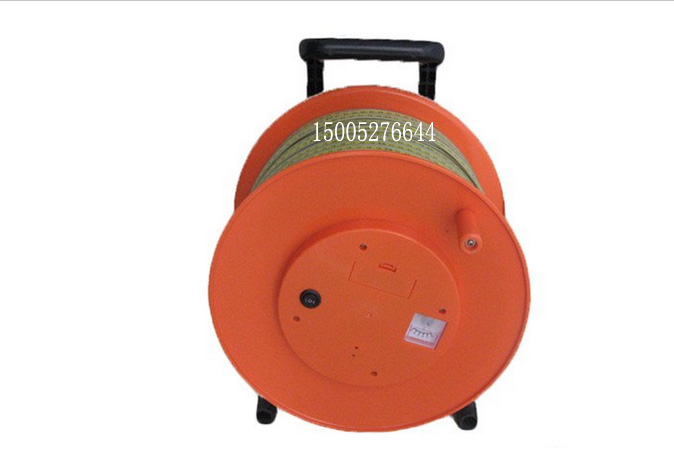

Water Level Meters Tape Cable 100M

FOB Price:	173.00 - 174.00 USD/Piece
Supply Ability:	100 Piece(s) per Day
Shipping:	FOBshanghai
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	carton

Quick Details

Conductor Material: Copper
Application: Marine
Type: Water Level Meters Tape Cable
Insulation Material: no
Brand Name: Water Level Meters Tape Cable
Model Number: TC202
cable color: Yellow

Specifications

Water Level Meters Tape Cable 100M PE ruler cable,Measuring water level of the steel cable,Water Level Meter cable, Water level gauge cable Steel ruler cable, Measuring water level of the steel cable
Water Level Meters Tape Cable 100M: the steel ruler and wire are combined by plastic technology, which not only prevents the steel ruler from rusting, but also simplifies the operation process, making the measurement and reading more convenient and accurate.
Water Level Meters Tape Cable 100M receiving system of logging dipstick: it is composed of an acoustic device and a peak value indicator. the acoustic device makes a continuous beep sound by a buzzer, and the peak value indicator is the indicator of a voltmeter. the two can be selected through a toggle switch. No matter what receiving system is used, the reading accuracy is the same.

Tape Blade Material	Carbon steel
Tape Blade Color	Yellow or white
Tape Blade Standard Value	6.4mm*0.23-0.24mm
Tape Blade Printing	Printed on one side, Using the metric system -cm
Conductor Material	Copper clad steel/ Tinned copper / Copper/ Enameled wire
Conductor Standard Value	490.15/7.02/70.10/4*1
Conductor Position	both sides
Conductor Insulation	/
Insulation Material	/
Insulation Color	/
Steel Rule Cable Jacket material	PVC/LLDPE/TPU/PUR/TPEE(optional)
Steel Rule Cable Jacket width	9.6-9.8mm
Steel Rule Cable Jacket middle thickness	1.0mm
Highest Steel Rule Cable Jacket thickness	2.0mm
