Home  >Products Catalog > Hose pump > Heavy-Duty Chain Wheel Squeeze Pump Is a Sealessness & Valveless Peristaltic Pump

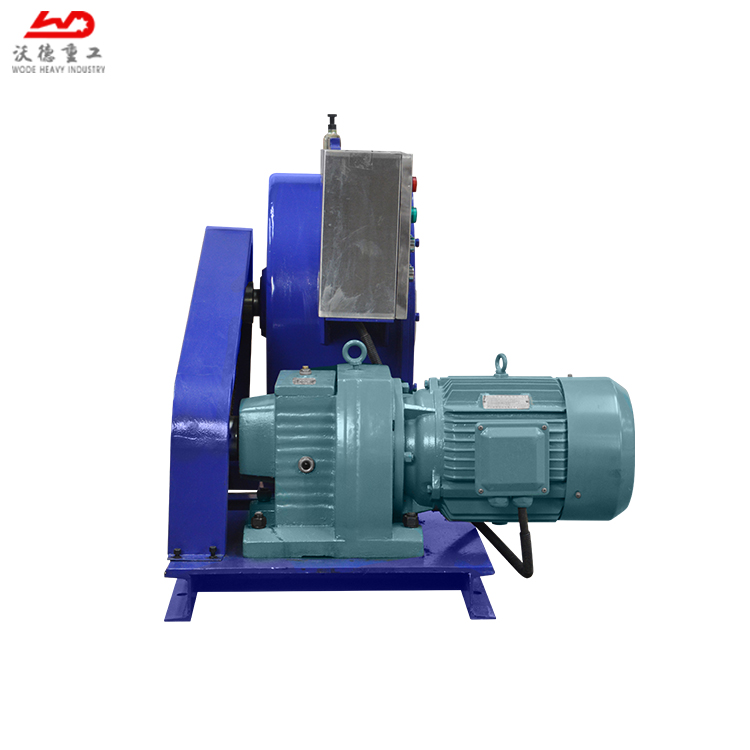

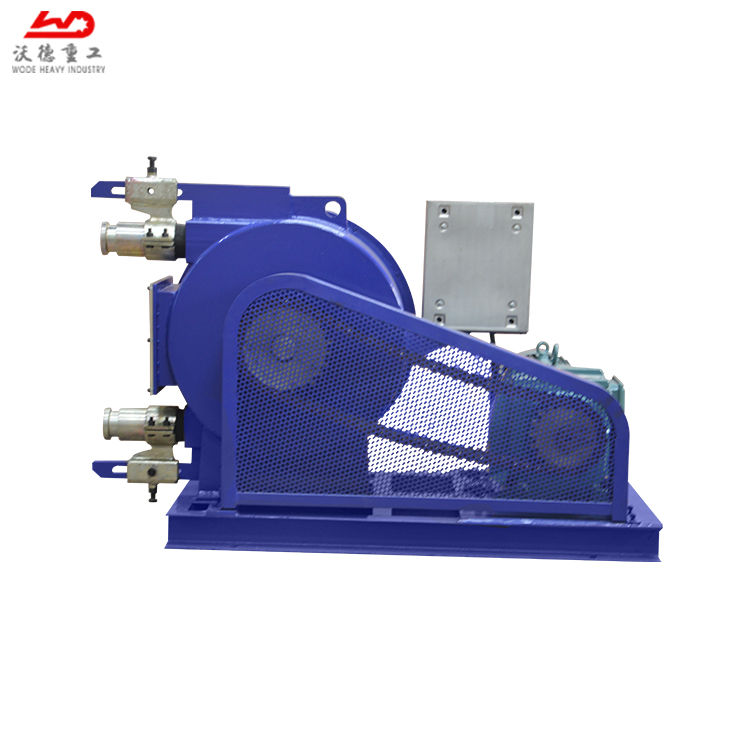

Heavy-Duty Chain Wheel Squeeze Pump Is a Sealessness & Valveless Peristaltic Pump

Supply Ability: 2,000 Set(s) per Year
Shipping: shanghai.qingdao,tianjin or other port
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: hose squeeze peristaltic pump: plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised.

Quick Details

  • Pressure: High Pressure
  • Standard or Nonstandard: Nonstandard
  • Power: Electric
  • Structure: hose pump
  • Brand Name: wodetec
  • Usage: Water
  • Theory: Rotary Pump
  • Model Number: WH50-445C
  • Theory: Rotary Pump
  • hose options: NR, NBR, EPDM
  • color: customized
  • output: 3m3/H
  • pressure: 1.5Mpa
  • gearbox type: B as shown below
  • Max. Aggregate size: 10 mm
  • Weight: 500 kg
  • market: global

Specifications

this model of hose pump has these characteristics:Reversibility, Sealessness and valveless, Abrasion resistance, Self priming with high suction, with 1% repeat precision, Corrosion-resistant, Easy to clean, Can run dry without damage, Peristaltic tube Is the only consumption part.

More widely used for pumping foam concrete, Lightweight form concrete, Mortar, Cement slurry and refractory materials.


Heavyduty Chain Wheel Squeeze Pump is a Sealessness and Valveless Peristaltic Pump

Type

WH50-445C

Max. Ouput

3 m3/h

Squeeze hose ID

50 mm

Working pressure

15 bar

Rotation

25 rpm

Motor Power

5.5 KW

Max. Aggregate size

10 mm

Max.Suction Lift

5 m

Weight

500 kg


Zhengzhou Wode Heavy Industry Co., Ltd. (short:"Wodetec") owns the advanced imported production equipment and complete production technology.

Wodetec is a manufacturer specialized in R&D, manufacture and sale of industrial hose pump.

We have now developed full series of products with tens of models, Working pressure from 0.6-3 Mpa, output from 0.01-50m/h, NR, NBR and EPDM squeeze hoses are available options for customization.

WH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, idle, squeeze tube and driving unit, the squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. after the roller rotate, the deformed hose recover by its elasticity.

Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.

in building construction, more widely used for pumping foam concrete, lightweight form concrete, mortar, cement slurry and refractory materials.
