| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Squeeze-Type Industrial Peristaltic Hose pump: plastic wrap, plywood case, free-gumigation, standard export packing. as shown below. Or customised. |
Quick Details
- Pressure: Low Pressure
- Standard or Nonstandard: Nonstandard
- Power: Electric
- Structure: hose pump
- Brand Name: wodetec
- Theory: Rotary Pump
- Model Number: WH76-770B
- Type: Industrial hose pump
- Model: WH76-770B
- Max.Output: 20m3/h
- Squeeze Hose ID: 76mm
- Rotation: 40rpm
- Working Pressure: 10bar
- Motor Power: 18.5kw
- Max.Aggregate Size: 15mm
- Weight: 1000kg
- Max.Suction Lift: 5m
Specifications
An elastomeric tube is squeezed along a length by rollers. the tube's restitution after squeezing produces a vacuum that draws fluid continuously into the tube. that doesn't cause any damage to the product. and contaminations are avoided.
in building construction, More widely used for pumping foam concrete, Lightweight form concrete, mortar, Cement slurry and refractory materials.
Type |
WH76-770B | ||
Max.Output |
20m3/h |
Squeeze Hose ID |
76mm |
Rtation |
40rpm |
Working Pressure |
10bar |
Motor Power |
18.5kw |
Max.Aggregate Size |
15mm |
Weight |
1000kg |
Max.Suction Lift |
5m |
Zhengzhou Wode Heavy Industry Co., Ltd. (short:"Wodetec") owns the advanced imported production equipment and complete production technology.
Wodetec is a manufacturer specialized in R&D, manufacture and sale of industrial hose pump.
We have now developed full series of products with tens of models, Working pressure from 0.6-3 Mpa, output from 0.01-50m/h, NR, NBR and EPDM squeeze hoses are available options for customization.

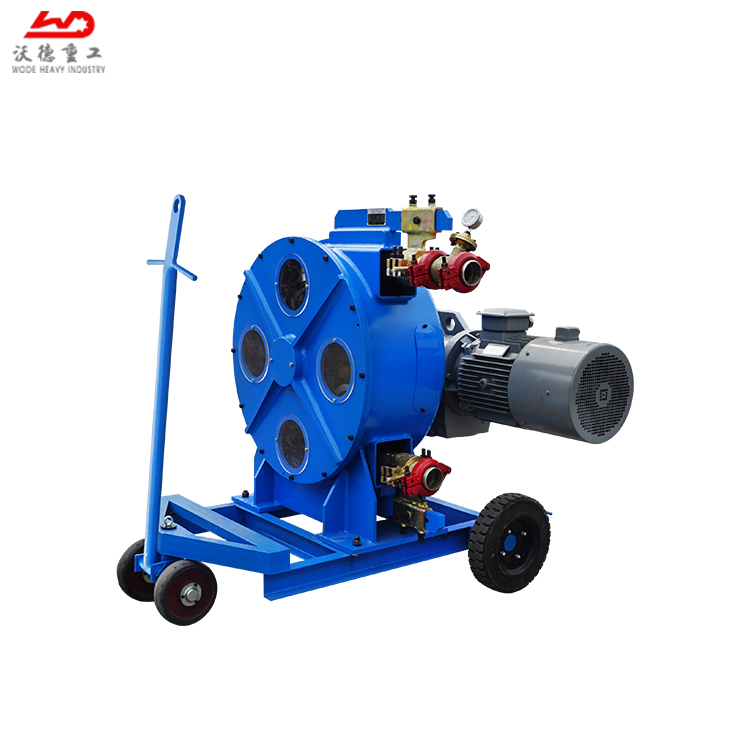

WH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, idle, squeeze tube and driving unit, the squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. after the roller rotate, the deformed hose recover by its elasticity.
Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.
in building construction, more widely used for pumping foam concrete, lightweight form concrete, mortar, cement slurry and refractory materials.
